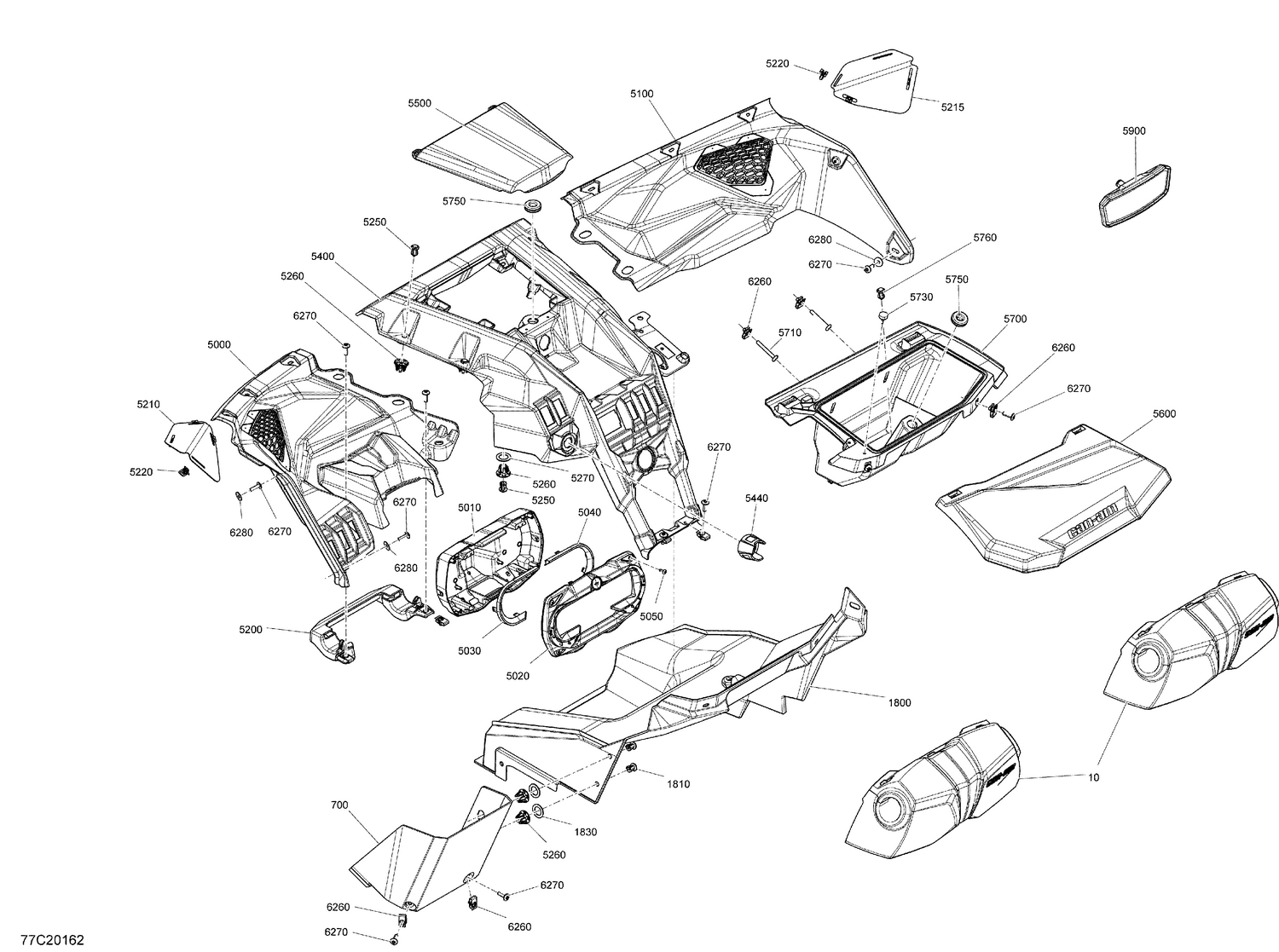

09- Cab Interior - Dashboard - XMR
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707900653 | Foam |
| 700 | 707900473 | Cover Central Console |
| 1800 | 707900410 | RH Lower Dash Panel |
| 1810 | 293150230 | Tuflok Plastic Rivet |
| 1830 | 503189273 | Washer |
| 5000 | 715006587 | LH Dashboard Kit This part replaces 715005325. |
| 5010 | 709402141 | Rear Gauge Trim |
| 5020 | 709402142 | Front Gauge Trim |
| 5030 | 705012349 | Deep Black, LH Trim Gauge |
| 5040 | 705012351 | Deep Black, RH Trim Gauge |
| 5050 | 250000577 | Torx Truss Screw K40 X 12 |
| 5100 | 707900698 | RH Dashboard |
| 5200 | 707900479 | Dash Support |
| 5210 | 707900465 | LH Speaker Cover |
| 5215 | 707900590 | RH Speaker Cover |
| 5220 | 517302785 | Edge Clip |
| 5250 | 293150230 | Tuflok Plastic Rivet |
| 5260 | 707900133 | Insert |
| 5270 | 503189273 | Washer |
| 5400 | 707901065 | Central Dashboard This part replaces 707900752. |
| 5440 | 707900598 | Key Protector |
| 5500 | 707900400 | Dash Cover |
| 5600 | 715004067 | Glove Box Cover Kit |
| 5700 | 707900350 | Glove Box |
| 5710 | 250000868 | Torx Truss M6 X 50 |
| 5730 | 708000759 | Rubber Stopper |
| 5750 | 517303756 | Grommet |
| 5760 | 293150230 | Tuflok Plastic Rivet |
| 5900 | 707900502 | Central Mirror |
| 6260 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 6270 | 250000722 | Torx Screw M6 X 20 |
