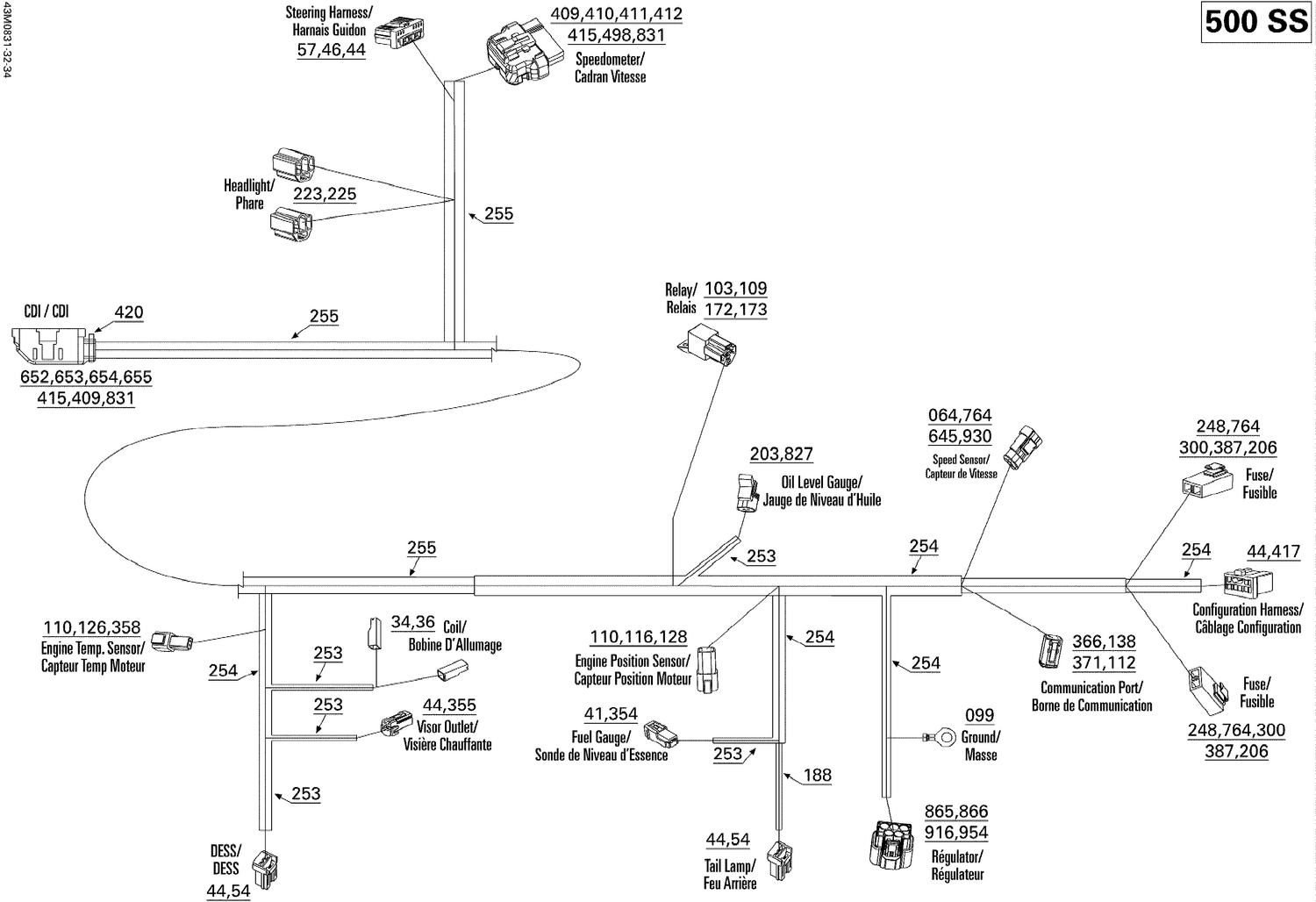

| Ref | Part Number | Description |
|---|
| 34 |
409010100 |
Female Terminal |
| 36 |
409010400 |
Female Terminal Housing, 1 Circuit |
| 41 |
515175232 |
Male Terminal |
| 44 |
515175231 |
Female Terminal |
| 46 |
515175282 |
Female Terminal |
| 54 |
515175495 |
Female Housing, 3 Circuits |
| 57 |
515175350 |
Female Terminal Housing, 13 Circuits |
| 64 |
710000568 |
Housing |
| 99 |
278000992 |
Open Barrel |
| 103 |
710010053 |
Relay This part replaces 410113200. |
| 109 |
409209900 |
Female Housing, 5 Circuits |
| 110 |
278000631 |
Male Terminal |
| 112 |
278000632 |
Female Terminal |
| 116 |
278000635 |
Female Housing, 4 Circuits |
| 126 |
409207500 |
Male Lock, 2 Circuits |
| 128 |
278000636 |
Female Wedge, 4 Circuits |
| 138 |
293000052 |
Sealing Cap |
| 172 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 173 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 188 |
409902000 |
Tubing 12 mm |
| 203 |
278001113 |
Male Connector, 2 Circuits |
| 206 |
409004200 |
Female Terminal |
| 223 |
515175320 |
FEMALE TERMINAL - Call your local BRP dealership |
| 225 |
409202700 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 248 |
409004000 |
Fuse Holder |
| 253 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 254 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 255 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 300 |
278000343 |
Fuse, 15 Amperes |
| 354 |
515175654 |
Male Terminal Housing, 2 Circuits |
| 355 |
515175658 |
Female Housing, 2 Circuits |
| 358 |
515175665 |
Male Terminal Housing, 2 Circuits |
| 366 |
515175673 |
Male Housing, 6 Circuits |
| 371 |
515175678 |
Male Wedge, 6 Circuits |
| 387 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 409 |
515175812 |
Plug |
| 410 |
515175801 |
Female Housing, 24 Circuits |
| 411 |
515175802 |
Retainer Block |
| 412 |
515175803 |
Wire Seal |
| 415 |
515175806 |
Female Terminal |
| 417 |
515175819 |
Female Terminal Housing, 8 Circuits |
| 420 |
414115200 |
Tie-Rap 180 mm |
| 498 |
710000399 |
Female Housing |
| 645 |
515176164 |
Male Terminal |
| 652 |
515176221 |
Female Housing |
| 653 |
515176222 |
Wire Seal |
| 654 |
515176223 |
Female Terminal Housing, 36 Circuits |
| 655 |
515176224 |
Terminal Support |
| 764 |
710000992 |
Clip |
| 827 |
710001119 |
Female Terminal |
| 831 |
710001131 |
Female Terminal |
| 865 |
515176530 |
Connector |
| 866 |
515176531 |
Terminal |
| 916 |
515176594 |
Seal |
| 930 |
515176621 |
Wire Seal |
