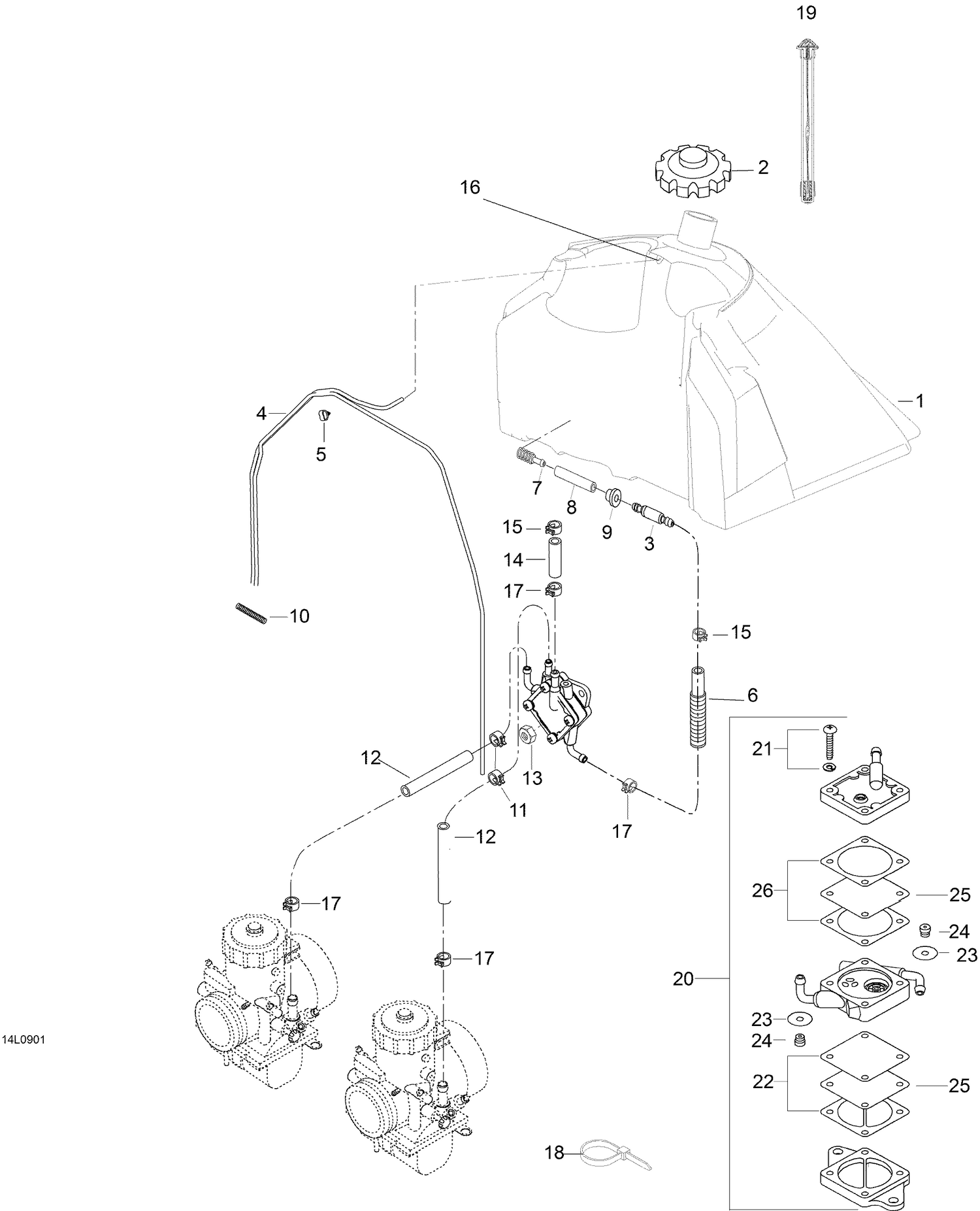

| Ref | Part Number | Description |
|---|
| 2 |
513033025 |
Fuel Tank Cap This part replaces 580259400. |
| 3 |
414872700 |
Male Connector |
| 4 |
39035 |
Hose |
| 5 |
513032923 |
TUBE CLAMP - Call your local BRP dealership |
| 6 |
219704355 |
TUBING 1000MM LONG - Call your local BRP dealership |
| 7 |
414872100 |
Fuel Filter Strainer |
| 8 |
39048 |
House |
| 9 |
293720058 |
Grommet |
| 10 |
25003 |
Spring |
| 11 |
414420700 |
Spring Clamp |
| 12 |
415080200 |
Polyurethane Hose - Call your local BRP dealership This part replaces 39001. |
| 14 |
605355647 |
Hose 1/4, 350 mm |
| 15 |
513032979 |
UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 16 |
404127600 |
NIPPLE - Call your local BRP dealership |
| 17 |
605627005 |
CLAMP MINI ABA 13 - Call your local BRP dealership |
| 18 |
414115200 |
Tie-Rap 180 mm This part replaces 27026. |
| 19 |
605351982 |
FUEL GAUGE - Call your local BRP dealership |
| 20 |
19113 |
FUEL PUMP ASS'Y - Call your local BRP dealership |
| 21 |
Not |
Available As Spare Part - Screw |
| 22 |
404902300 |
GASKET - Call your local BRP dealership |
| 23 |
404902100 |
GROMMET - Call your local BRP dealership |
| 24 |
275500042 |
VALVE - Call your local BRP dealership |
| 25 |
404902200 |
DIAPHRAGM - Call your local BRP dealership |
