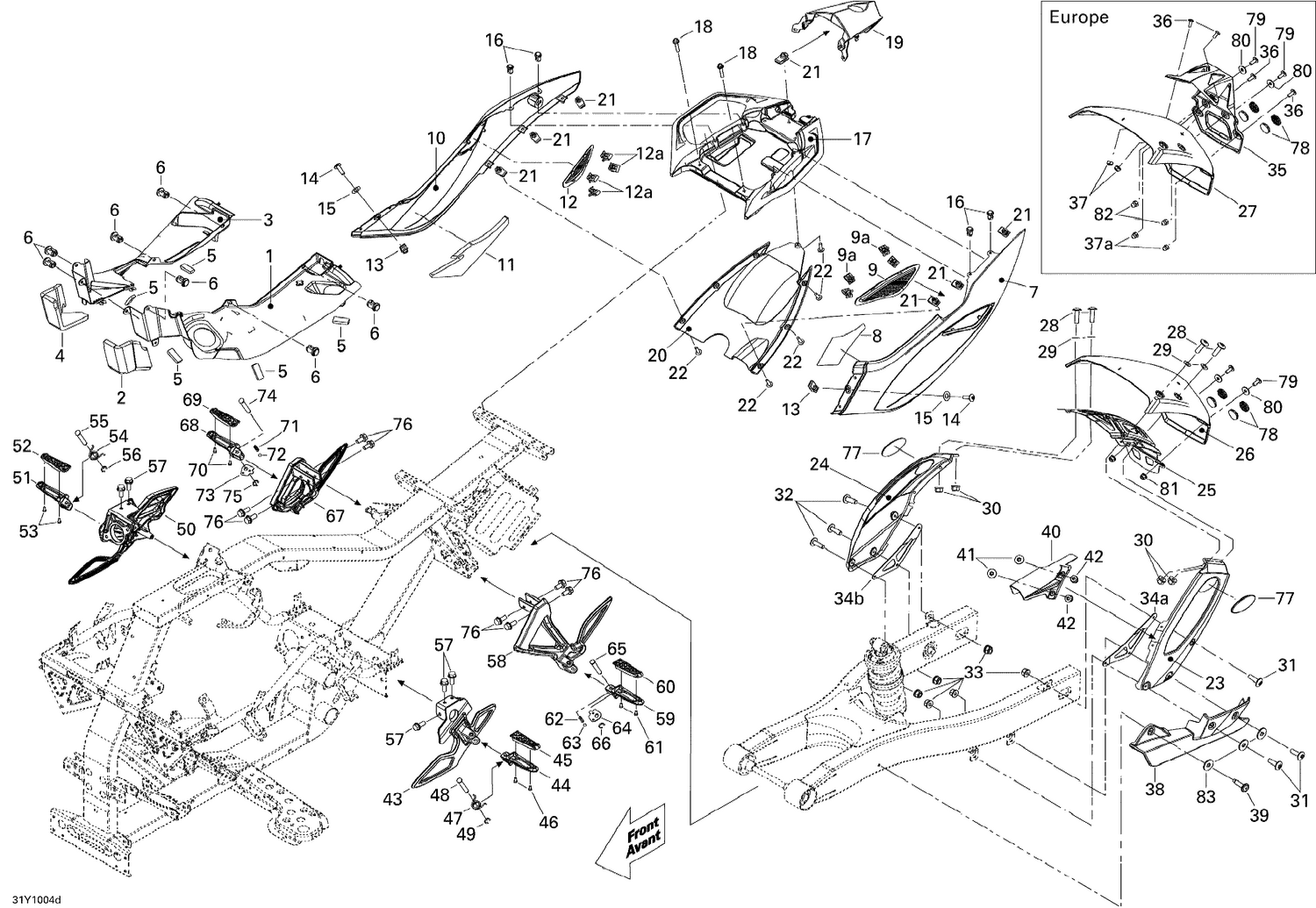

| Ref | Part Number | Description |
|---|
| 1 |
705006275 |
TANK COVER LH - Call your local BRP dealership This part replaces 705002325. |
| 2 |
705002920 |
LH FOAM - Call your local BRP dealership |
| 3 |
705002546 |
RH GAS TANK COVER - Call your local BRP dealership |
| 4 |
705002921 |
RH DEFLECTOR FOAM - Call your local BRP dealership |
| 5 |
219704364 |
Neoprene Seal (1PAC=3M) |
| 6 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 7 |
705008937 |
PANEL_BODY REAR L B-160 - Call your local BRP dealership This part replaces 705002548. |
| 8 |
705002508 |
LH Heat Reflective Sheet |
| 9 |
705001542 |
LH REAR GRILL - Call your local BRP dealership |
| 9a |
517302785 |
Edge Clip |
| 10 |
705008914 |
PANEL_BODY REAR R B-313 - Call your local BRP dealership This part replaces 705003896. |
| 10 |
705008938 |
PANEL_BODY REAR R B-160 - Call your local BRP dealership This part replaces 705002547. |
| 11 |
705002509 |
BLACK RH REAR PANEL FOAM - Call your local BRP dealership |
| 12 |
705001544 |
RH REAR GRILL - Call your local BRP dealership |
| 12a |
517302785 |
Edge Clip |
| 13 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 14 |
250000350 |
Torx Truss Screw M6 X 20 |
| 15 |
705003207 |
Plastic Washer |
| 16 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 17 |
705009315 |
Passenger Handle This part replaces 705001550. |
| 18 |
207584034 |
Hex. Flange Screw, Scotch Grip |
| 20 |
705001551 |
UNDER TAIL COVER - Call your local BRP dealership |
| 21 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 22 |
250000350 |
Torx Truss Screw M6 X 20 |
| 23 |
705006084 |
LH Rear Fender Support This part replaces 705002503. |
| 24 |
705006085 |
RH REAR FENDER SUPPORT - Call your local BRP dealership This part replaces 705002501. |
| 25 |
705003031 |
CENTRAL REAR FENDER SUPPORT - Call your local BRP dealership |
| 28 |
250000303 |
Torx Truss Screw M6 X 20 |
| 29 |
705003207 |
Plastic Washer |
| 30 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 31 |
250000350 |
Torx Truss Screw M6 X 20 |
| 32 |
250000350 |
Torx Truss Screw M6 X 20 |
| 33 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 34a |
705002980 |
LH REINFORCEMENT PLATE - Call your local BRP dealership |
| 34b |
705002981 |
RH Reinforcement Plate |
| 38 |
705002092 |
Lower Belt Guard |
| 39 |
250000728 |
Torx Screw M6 X 25 This part replaces 250000081. |
| 40 |
705007213 |
UPPER BELT GUARD - Call your local BRP dealership This part replaces 705001555. |
| 41 |
250000349 |
Torx Truss Screw M6 X 10 |
| 42 |
232361493 |
Domed Nut M6 |
| 43 |
705003335 |
LH Front Foot Peg Support - Call Your Local BRP Dealership |
| 44 |
705004180 |
LH FRONT FOOTREST - Call your local BRP dealership This part replaces 705003331. |
| 45 |
705002359 |
Rubber Pad |
| 46 |
250000099 |
Allen Plastite Screw #12 |
| 47 |
705001701 |
Spring |
| 48 |
705001702 |
Retainer Pin |
| 49 |
705600272 |
Circlip |
| 50 |
705004182 |
RH Foot Support This part replaces 705003336. |
| 51 |
705004183 |
RH FRONT FOOTREST - Call your local BRP dealership This part replaces 705003332. |
| 52 |
705002359 |
Rubber Pad |
| 53 |
250000099 |
Allen Plastite Screw #12 |
| 54 |
705003362 |
Spring |
| 55 |
705001702 |
Retainer Pin |
| 56 |
705600272 |
Circlip |
| 57 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 58 |
705004185 |
LH Rear Foot Support This part replaces 705003337. |
| 59 |
705004186 |
LH REAR FOOTREST - Call your local BRP dealership This part replaces 705003333. |
| 60 |
705002359 |
Rubber Pad |
| 61 |
250000099 |
Allen Plastite Screw #12 |
| 62 |
705001704 |
Spring |
| 63 |
705001705 |
Ball |
| 64 |
705001706 |
Indexation Plate |
| 65 |
705001702 |
Retainer Pin |
| 66 |
705600272 |
Circlip |
| 67 |
705006603 |
RH REAR FOOTREST SUPPORT - Call your local BRP dealership This part replaces 705003338. |
| 68 |
705004189 |
RH REAR FOOTREST - Call your local BRP dealership This part replaces 705003334. |
| 69 |
705002359 |
Rubber Pad |
| 70 |
250000099 |
Allen Plastite Screw #12 |
| 71 |
705001704 |
Spring |
| 72 |
705001705 |
Ball |
| 73 |
705001706 |
Indexation Plate |
| 74 |
705001702 |
Retainer Pin |
| 75 |
705600272 |
Circlip |
| 76 |
207581644 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 77 |
219400236 |
RED LATERAL REFLECTOR - Call your local BRP dealership This part replaces 705001572. |
| 78 |
293740028 |
Dual Lock Velcro Washer 3/4" |
| 79 |
250000303 |
Torx Truss Screw M6 X 20 |
| 80 |
234062600 |
Flat Washer M6, Stainless |
| 81 |
233261494 |
Hex. Flange Elastic Nut M6 |
