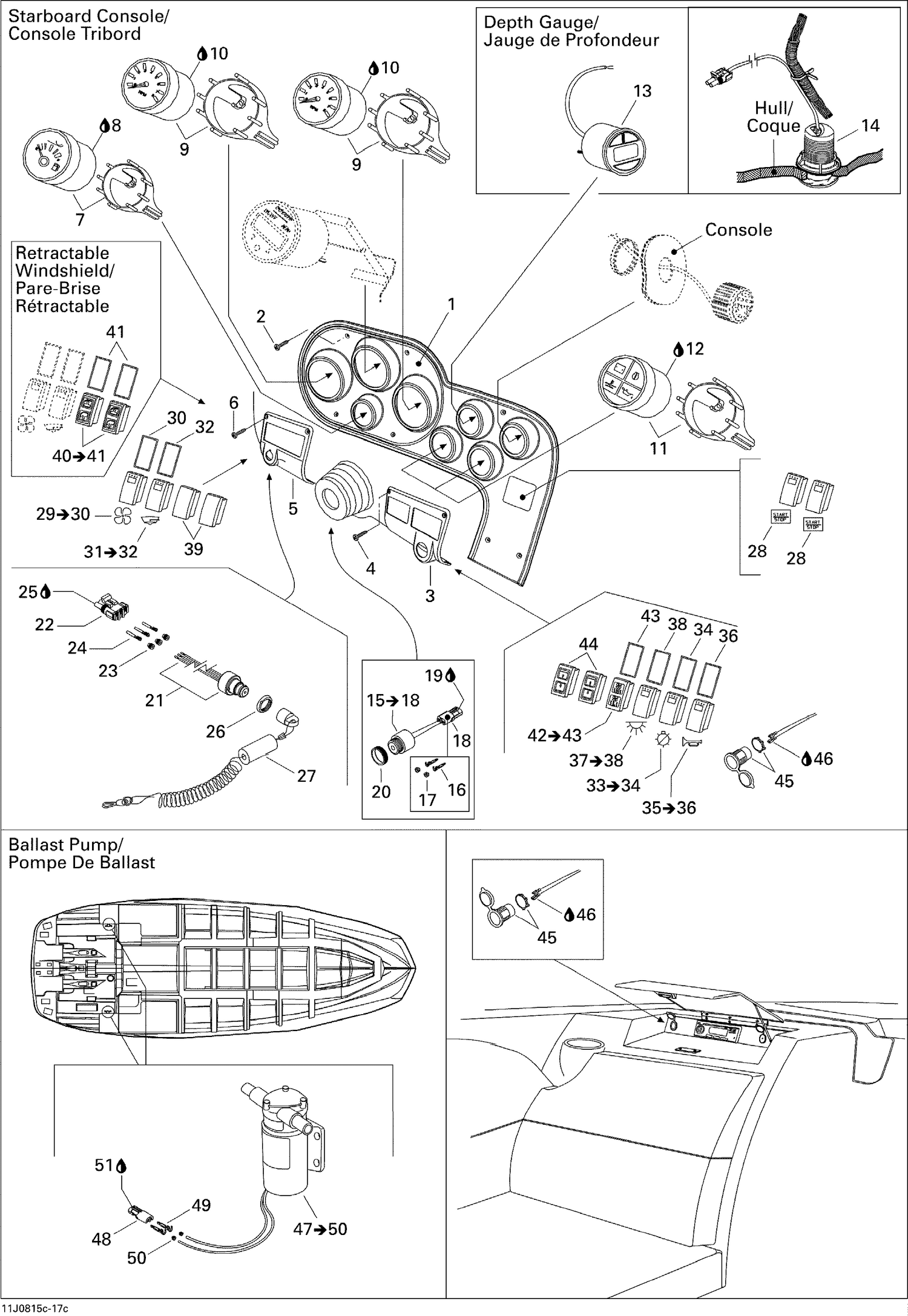

10- Electrical Accessories 3
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204471279 | Fascia |
| 2 | 205342560 | Socket Head Screw M4 X 25 |
| 3 | 204471173 | RH Panel Switch |
| 4 | 250000092 | Phillips Tapping Screw 3.5 X 19 |
| 5 | 204471174 | LH PANEL SWITCH - Call your local BRP dealership |
| 6 | 250000092 | Phillips Tapping Screw 3.5 X 19 |
| 7 | 204471163 | FUEL GAUGE - Call your local BRP dealership |
| 8 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 9 | 204471162 | Tachometer Gauge |
| 10 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 11 | 204471201 | ENGINE WARNING GAUGE - Call your local BRP dealership |
| 12 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 13 | 204471157 | Depth Gauge |
| 14 | 204471292 | Depth Sensor |
| 16 | 278000222 | Male Terminal |
| 17 | 278000218 | Wire Seal |
| 18 | 278000217 | Female Housing, 2 Circuits |
| 19 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 20 | 278000707 | Buzzer Nut |
| 21 | 278002773 | Safety Switch This part replaces 278001734. |
| 22 | 278000273 | Male Housing, 3 Circuits |
| 23 | 278000218 | Wire Seal |
| 24 | 278000223 | Female Terminal |
| 25 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 26 | 278002963 | Safety Nut (DESS Switch) This part replaces 278000508. |
| 27 | 204471206 | Safety Lanyard |
| 28 | 204471178 | START/STOP SWITCH - Call your local BRP dealership |
| 30 | 204470132 | Gasket |
| 32 | 204470132 | Gasket |
| 34 | 204470132 | Gasket |
| 36 | 204470132 | Gasket |
| 38 | 204470132 | Gasket |
| 43 | 204470132 | Gasket |
| 44 | 204471165 | BALLAST SWITCH - Call your local BRP dealership |
| 45 | 710001248 | DC Outlet This part replaces 204470907. |
| 46 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 48 | 278000217 | Female Housing, 2 Circuits |
| 49 | 278000222 | Male Terminal |
| 50 | 278000218 | Wire Seal |
