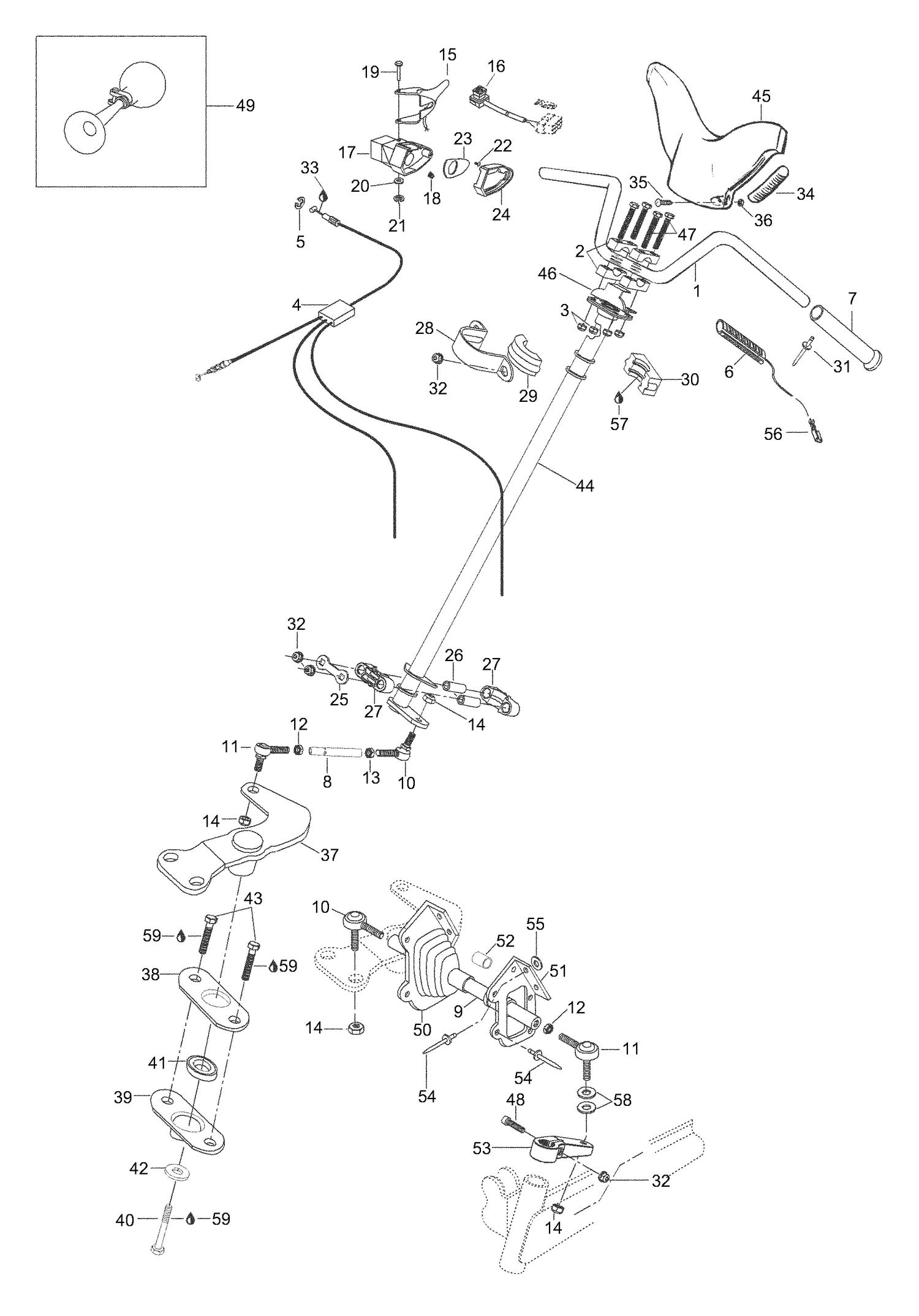

| Ref | Part Number | Description |
|---|
| 1 |
529751 |
Steering Bar - Call your local BRP dealership |
| 2 |
548448 |
Support of Bar - Call your local BRP dealership |
| 3 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 4 |
5244975 |
Throttle Cable - Call your local BRP dealership |
| 5 |
31038 |
Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
| 6 |
544345 |
Heather Assy - Call your local BRP dealership |
| 7 |
5340464 |
Grip |
| 8 |
5445590 |
Tie rod, short |
| 9 |
5445591 |
Tie rod |
| 10 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 414768100. |
| 11 |
506151492 |
RH BALL JOINT - Call your local BRP dealership This part replaces 414768000. |
| 12 |
33019 |
Nut M10 R.H. |
| 13 |
33017 |
Nut M10x1.25VASDIN934 m8 ZNe(1=10pcs) - Call your local BRP dealership |
| 14 |
33023 |
Nut elastic M10 |
| 15 |
5442276 |
HEATED THROTTLE LEVER - Call your local BRP dealership |
| 16 |
515177362 |
Kill Switch This part replaces 414612700. |
| 17 |
512060603 |
Housing throttle This part replaces 572086700. |
| 18 |
414440800 |
Socket Set Screw M8 X 10 |
| 19 |
414438700 |
Pin |
| 20 |
234051600 |
Washer M5 This part replaces 414438900. |
| 21 |
414439000 |
Circlip |
| 22 |
414473200 |
Screw |
| 23 |
512060390 |
Plate This part replaces 572099400. |
| 24 |
572044600 |
THROTTLE COVER - Call your local BRP dealership |
| 25 |
506150600 |
Plate stopper |
| 26 |
506150500 |
Bushing-housing |
| 27 |
506150400 |
Half-housing |
| 28 |
5343381 |
Retaining support - Call your local BRP dealership |
| 29 |
572064500 |
BUSHING - Call your local BRP dealership |
| 30 |
572064400 |
Bearing half |
| 31 |
36005 |
Rivet |
| 32 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 33 |
413701700 |
Grease_Dielectric |
| 34 |
572023900 |
Key |
| 35 |
40156 |
Slot sc. M5 x 20DIN7985m4.6Zne(1=10pcs) - Call your local BRP dealership |
| 36 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 37 |
5344929 |
Lever Weld |
| 38 |
5345380 |
COVER PLATE - Call your local BRP dealership |
| 39 |
5345339 |
Bearing Support |
| 40 |
40337 |
Screw M8x16 |
| 41 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 42 |
5446279 |
Washer |
| 43 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 44 |
5244925 |
Steering pale |
| 45 |
572023800 |
Pad |
| 46 |
5444196 |
Support |
| 47 |
40286 |
Allen sc. M8 X 45 DIN912m8.8Zn(1=10pcs) - Call your local BRP dealership |
| 48 |
40828 |
Allen screw M8x35 |
| 49 |
549011291 |
Horn This part replaces 21003. |
| 50 |
570024800 |
R.H. Cap rod tie |
| 50 |
570024900 |
LH TIE ROD CAP - Call your local BRP dealership |
| 51 |
517241200 |
R.H. Plate-cap |
| 51 |
517241300 |
LH CAP PLATE - Call your local BRP dealership |
| 52 |
572036500 |
BUSHING - Call your local BRP dealership |
| 53 |
5345119 |
Steering Arm |
| 54 |
36036 |
Rivet |
| 55 |
20008 |
Washer |
| 56 |
42039 |
Connector |
| 57 |
413711500 |
SYNTHETIC GREASE - Call your local BRP dealership |
| 58 |
20105 |
Washer |
