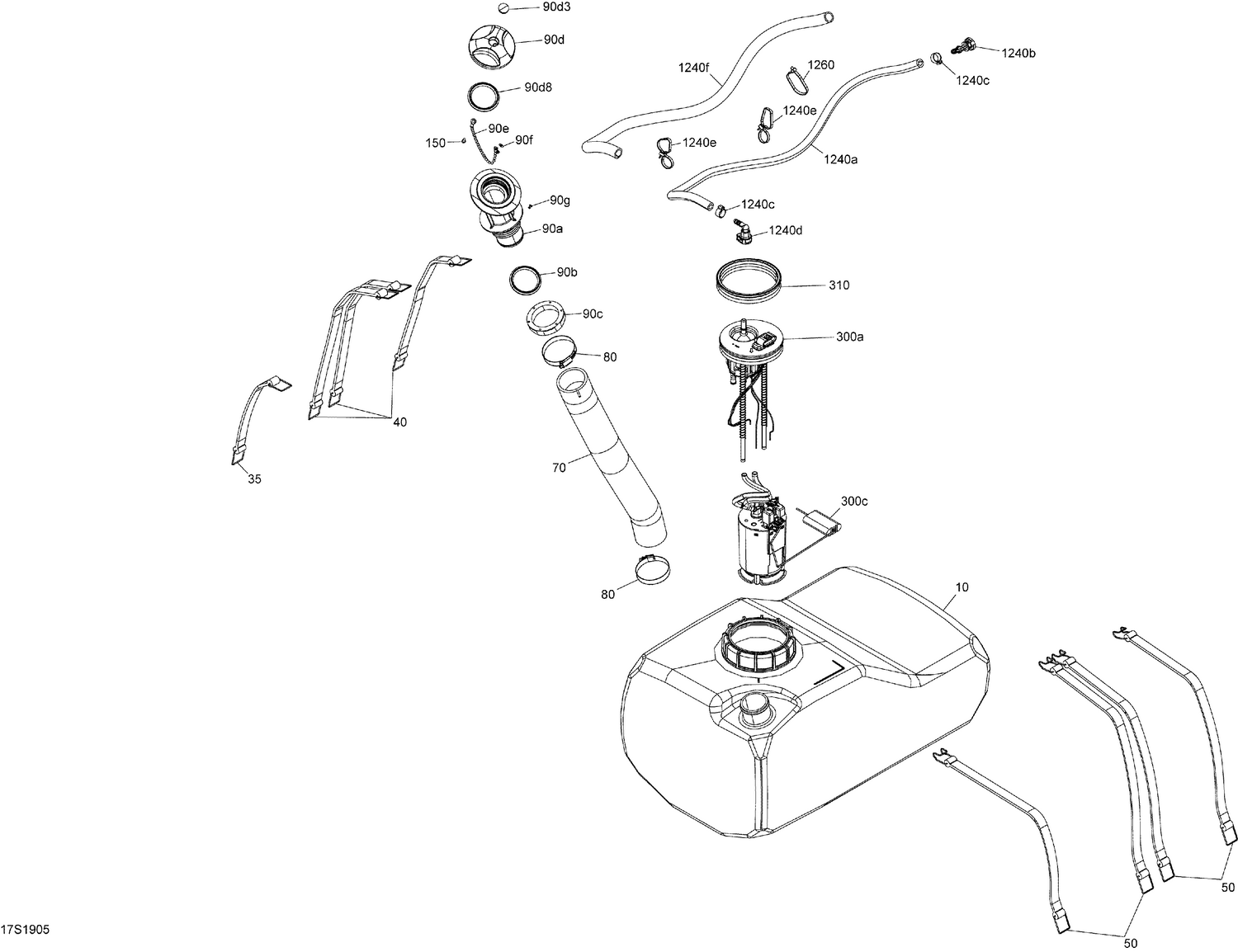

02- Fuel System
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 275500962 | Fuel Tank |
| 35 | 293850112 | Holding Strap |
| 40 | 293850093 | Fuel Tank Strap |
| 50 | 293850101 | Fuel Tank Strap |
| 70 | 275500918 | Hose |
| 80 | 293650081 | Norma Clamp This part replaces 293650278. |
| 150 | 241140060 | Screw K40 X 10 |
| 300a | 275500780 | Sensor Lever |
| 300c | 270600113 | Fuel Filter |
| 310 | 293250173 | Gasket |
| 1240a | 219704359 | Hose I.D. 7.9Mm 3000Mm Long |
| 1240b | 275500921 | Quick Disconnect |
| 1240c | 293650053 | Crimp Clamp |
| 1240d | 293710105 | Elbow Fitting 90° |
| 1240e | 293750053 | Tie Rap 300mm |
| 1240f | 219704408 | Tubing 16 Mm 1000Mm Long |
