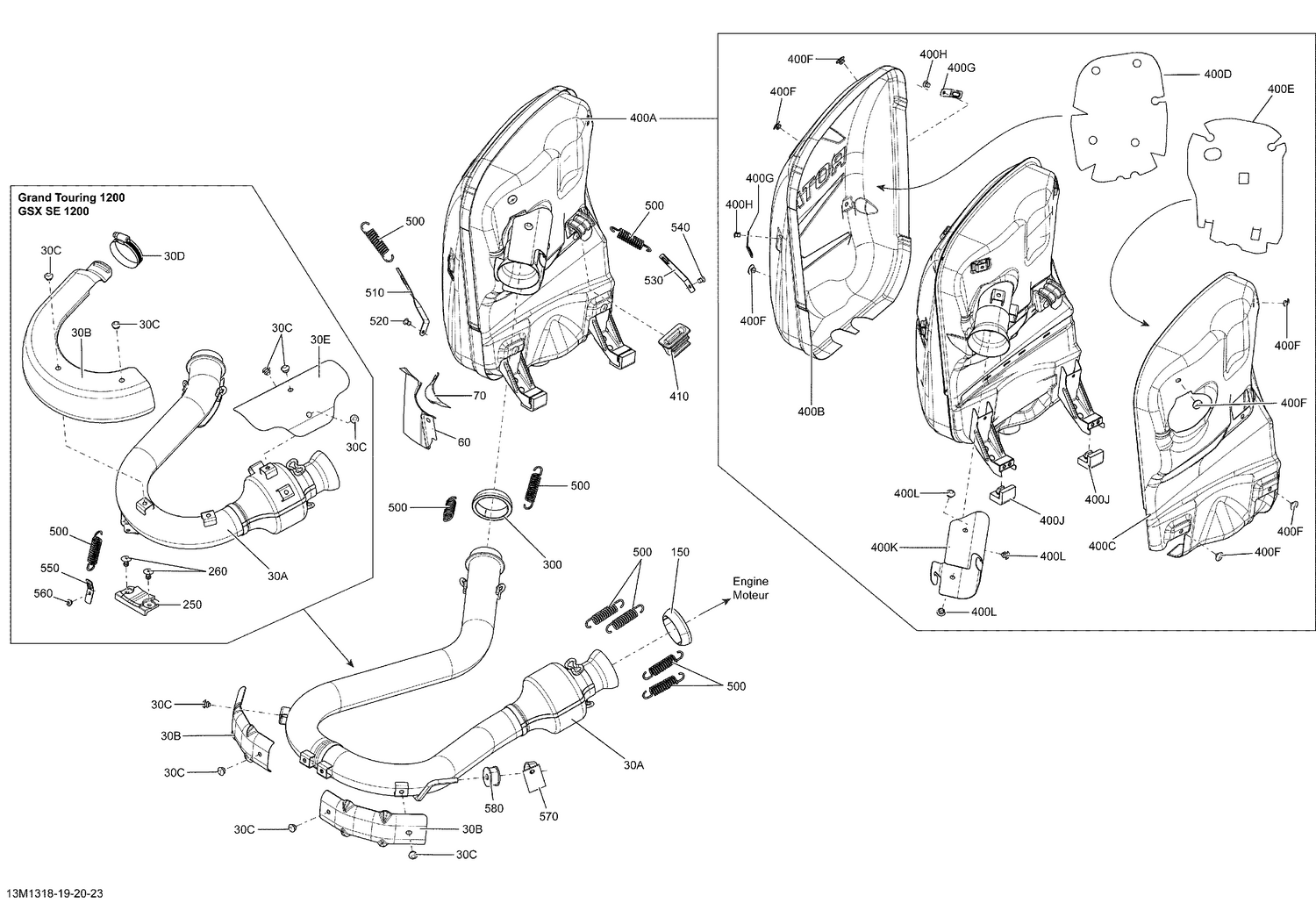

| Ref | Part Number | Description |
|---|
| 30B |
514054564 |
DEFLECTOR - Call your local BRP dealership |
| 30C |
293150173 |
Rivet 6,4 mm |
| 30D |
XXX |
Not Available As Spare Parts |
| 30E |
XXX |
Not Available As Spare Parts |
| 60 |
514054398 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 70 |
514054399 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 150 |
514054174 |
Exhaust Gasket |
| 250 |
XXX |
Not Available As Spare Parts |
| 260 |
XXX |
Not Available As Spare Parts |
| 300 |
514054174 |
Exhaust Gasket |
| 400B |
514054474 |
RH HEAT SHIELD - Call your local BRP dealership |
| 400C |
514054369 |
LH HEAT SHIELD - Call your local BRP dealership |
| 400D |
514054256 |
INSULATING WOOL - Call your local BRP dealership |
| 400E |
514054257 |
INSULATING WOOL - Call your local BRP dealership |
| 400F |
390910000 |
Pop Rivet 3/16” |
| 400G |
514054522 |
Spring Bracket |
| 400H |
390909200 |
Avex Rivet |
| 400J |
514054496 |
Lower Stopper |
| 400K |
514054396 |
DEFLECTOR - Call your local BRP dealership |
| 400L |
293150173 |
Rivet 6,4 mm |
| 410 |
514054346 |
Stopper |
| 500 |
514054226 |
Spring |
| 510 |
514055030 |
Spring Bracket This part replaces 514054620. |
| 520 |
293150194 |
Interlock Rivet 3/16'' |
| 530 |
514054484 |
SPRING BRACKET - Call your local BRP dealership |
| 540 |
390909200 |
Avex Rivet |
| 550 |
XXX |
Not Available As Spare Parts |
| 560 |
XXX |
Not Available As Spare Parts |
| 570 |
514054600 |
SUPPORT - Call your local BRP dealership |
