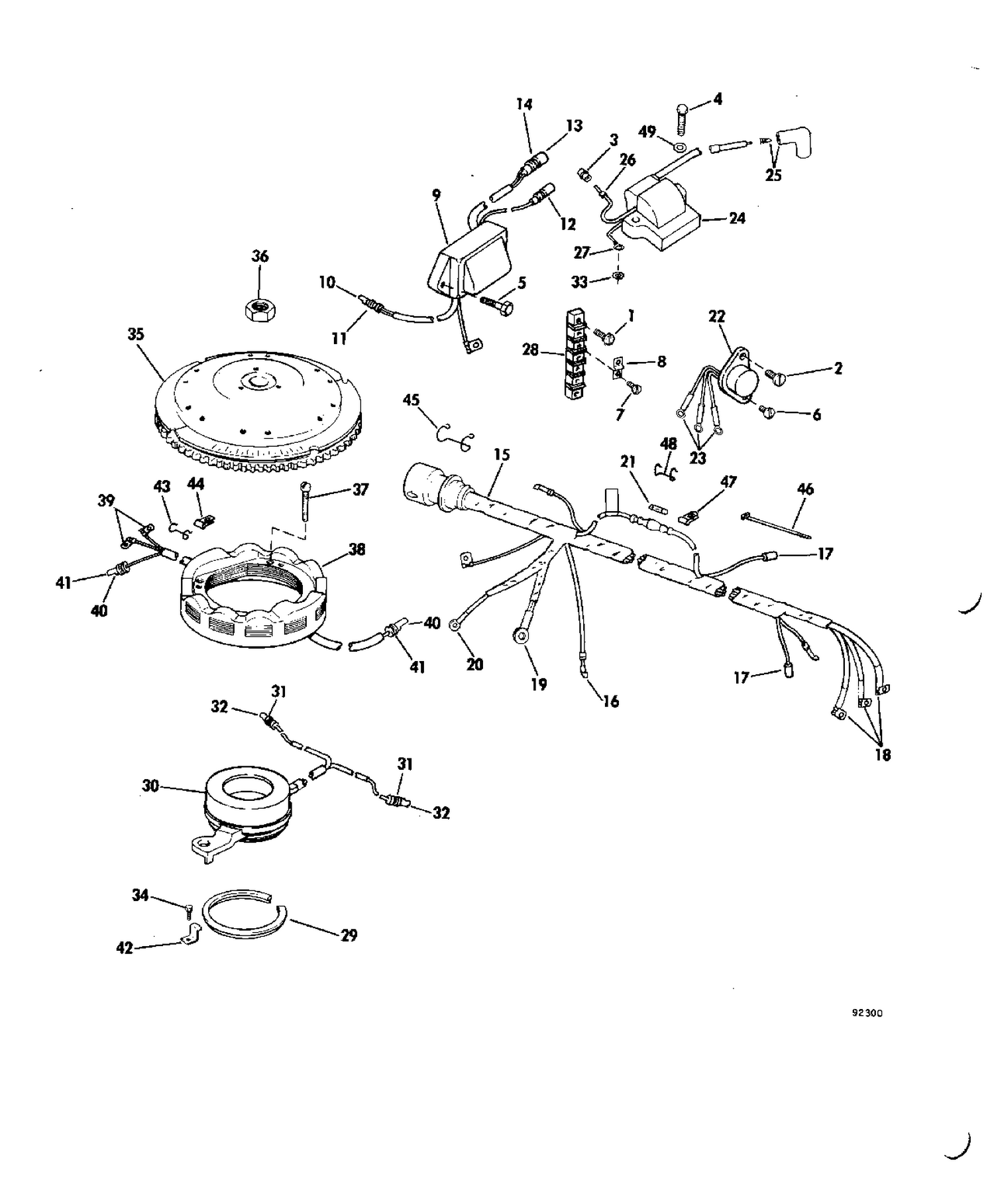

| Ref | Part Number | Description |
|---|
| 2 |
0319292 |
SCREW, Clamp This part replaces 0308762. |
| 3 |
0511616 |
CLAMP, Cable |
| 5 |
0328726 |
SCREW (Use existing coil screw) This part replaces 0323796. |
| 6 |
0319682 |
VIS, capteur vers plaque |
| 8 |
0315004 |
FIL DE LIAISON, bornier |
| 9 |
0582125 |
POWER PACK ASSY This part replaces 0581805. |
| 10 |
0511989 |
CONNECTOR This part replaces 0511617. |
| 12 |
0511449 |
COMMECTOR, Coil to power pack |
| 14 |
0511616 |
CLAMP, Cable |
| 15 |
0582053 |
MOTOR CABLE ASSY |
| 24 |
0581998 |
COIL ASSY |
| 27 |
0510767 |
RING TERMINAL |
| 28 |
0511563 |
TERMINAL BLOCK |
| 29 |
0313666 |
RET., Distributor base 1 |
| 30 |
0582041 |
TIMER BASE & SENSOR ASSY |
| 35 |
0582628 |
FLYWHEEL ASSY. This part replaces 0581850. |
| 36 |
0329267 |
NUT, Flywheel This part replaces 0314209. |
| 38 |
0581987 |
STATOR ASSY., 10 amp |
| 38 |
0582016 |
STATOR ASSY., 6 amp |
| 41 |
0511989 |
CONNECTOR This part replaces 0511617. |
| 42 |
0326439 |
CLAMP, Leads This part replaces 0316014. |
| 43 |
0322549 |
DISPOSITIF DE RETENUE, bouchon |
| 44 |
0330157 |
CLAMP This part replaces 0323373. |
| 46 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 0315633. |
| 47 |
0330157 |
CLAMP This part replaces 0323373. |
