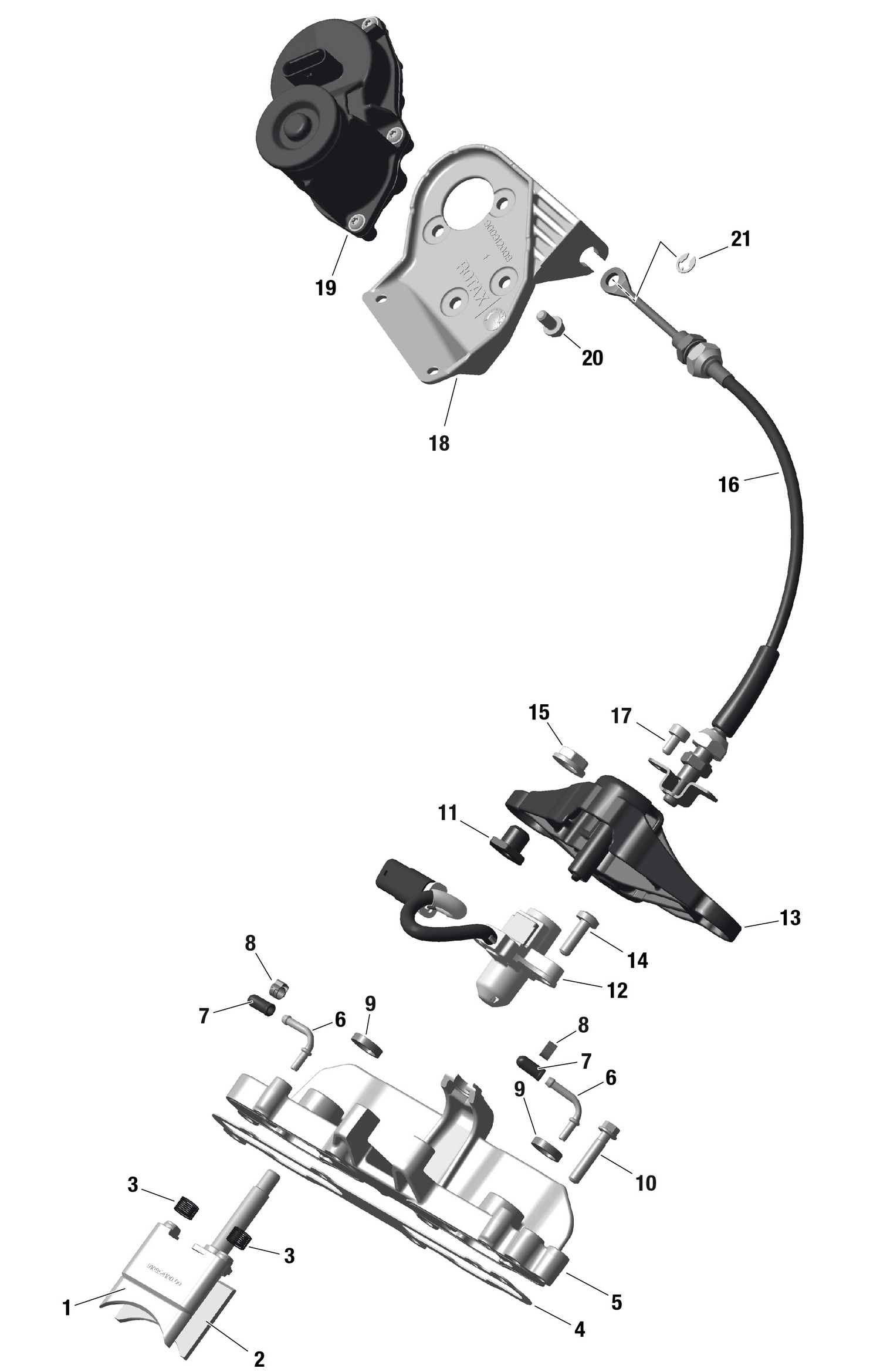

01- ROTAX - RAVE Valve
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420954100 | Exhaust Valve Upper |
| 2 | 420954095 | Exhaust Valve Lower |
| 3 | 420238558 | Spring |
| 6 | 420924053 | Fitting 90D |
| 8 | 420853138 | Clamp 5.8-7.0MM |
| 9 | 420950732 | Oil Seal |
| 11 | 420942331 | Collar Nut M8 |
| 12 | 420855295 | Valve Bar With Position Sensor |
| 13 | 420855290 | Valve Bar |
| 14 | 420441386 | Flanged Torx Screw M6 X 20 |
| 15 | 420942190 | Nut M12 X 1.5 |
| 16 | 420997033 | Bowden Cable Ass'y This part replaces 420997033. |
| 17 | 420240692 | Allen Screw M5 X 10 |
| 18 | 420912008 | Mounting Bracket |
| 19 | 420889432 | Servo Motor Ass'y |
| 20 | 420440149 | Flanged Hex. Screw M6 X 12 |
