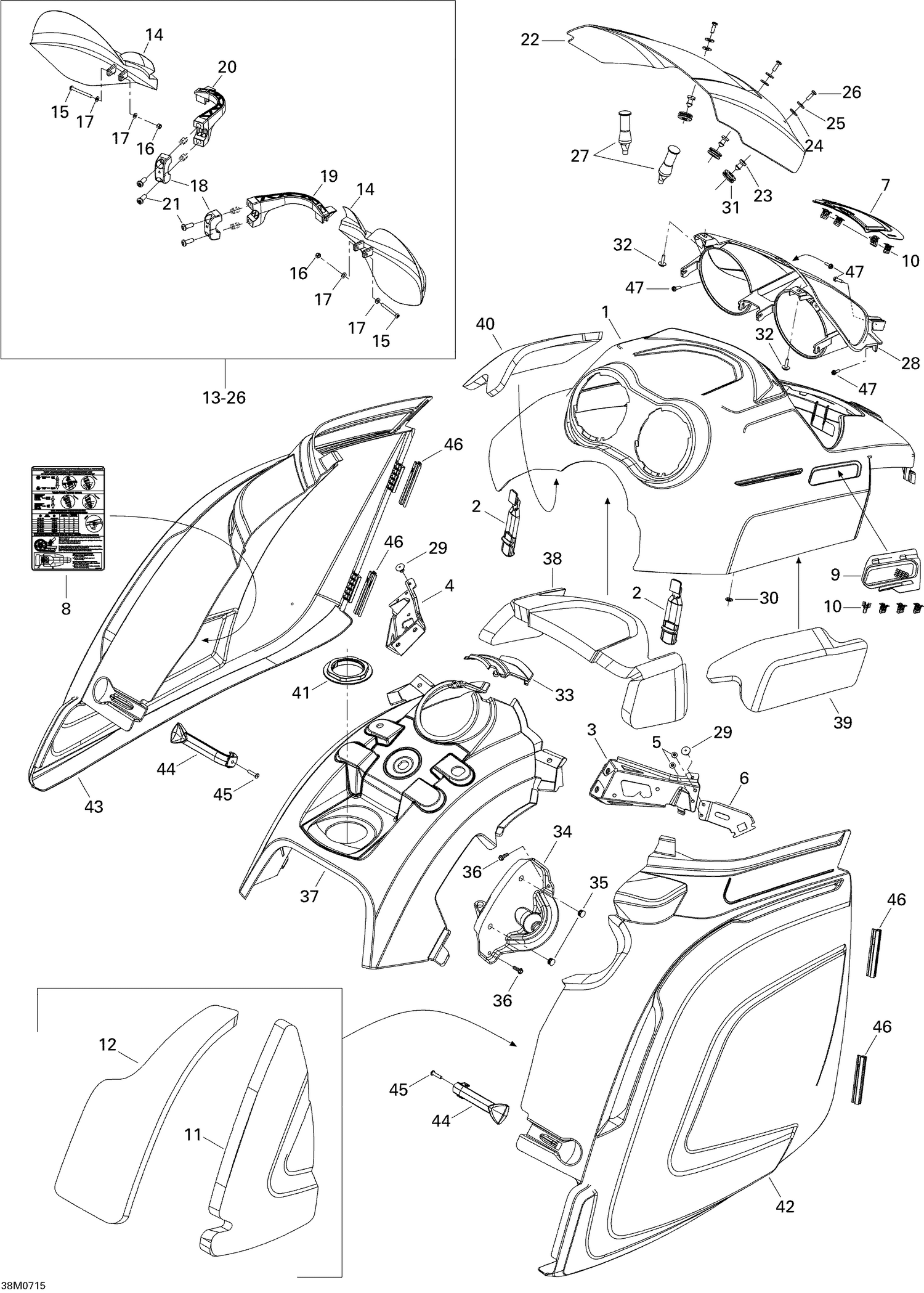

09- Hood
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517303650 | HOOD - Call your local BRP dealership |
| 2 | 517303518 | Latch |
| 3 | 517303662 | RH Bracket |
| 4 | 517303663 | LH Bracket |
| 5 | 390402200 | Pop Rivet 3/16" |
| 6 | 517303517 | BRACKET - Call your local BRP dealership |
| 7 | 517303331 | Center Hood Grille |
| 8 | 517303594 | Adjustment Suspension Decal |
| 9 | 517303586 | RH HOOD GRILL - Call your local BRP dealership |
| 10 | 517302785 | Edge Clip |
| 11 | 517303456 | RH PANEL FOAM, FRONT - Call your local BRP dealership |
| 12 | 517303457 | RH PANEL FOAM, REAR - Call your local BRP dealership |
| 14 | 415128767 | DEFLECTOR - Call your local BRP dealership |
| 15 | 205444086 | Socket Head Screw M4 X 40 |
| 16 | 232541484 | Elastic Stop Nut M4 |
| 17 | 234041480 | Flat Washer 4 mm |
| 18 | 517303264 | U-Clamp |
| 19 | 517303590 | RH DEFLECTOR SUPPORT - Call your local BRP dealership |
| 20 | 517303591 | LH DEFLECTOR SUPPORT - Call your local BRP dealership |
| 21 | 250000172 | SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 22 | 517303660 | Windshield |
| 23 | 517303439 | Knob |
| 24 | 250200024 | Rubber Washer 5 mm |
| 25 | 250200025 | Washer M5 |
| 26 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 27 | 517303197 | WINDSHIELD SUPPORT - Call your local BRP dealership |
| 28 | 517303692 | Moulding |
| 29 | 293150103 | Pop Rivet 3/16" |
| 30 | 732610072 | Push Nut |
| 31 | 517307161 | Grommet This part replaces 517302841. |
| 32 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 33 | 517303458 | CONSOLE CAP - Call your local BRP dealership |
| 34 | 517303482 | RH CONSOLE - Call your local BRP dealership |
| 35 | 275500241 | Black, Cap |
| 36 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 37 | 517303349 | CENTER CONSOLE - Call your local BRP dealership |
| 38 | 517303664 | Hood Foam |
| 39 | 517303486 | RH Hood Foam |
| 40 | 517303487 | LH HOOD FOAM - Call your local BRP dealership |
| 41 | 517302575 | CONSOLE NUT - Call your local BRP dealership |
| 42 | 517303644 | RH Panel |
| 43 | 517303540 | LH PANEL - Call your local BRP dealership |
| 44 | 517302448 | Panel Latch |
| 45 | 390410100 | Pop Rivet 3/16” |
| 46 | 517302823 | Hinge Lock |
