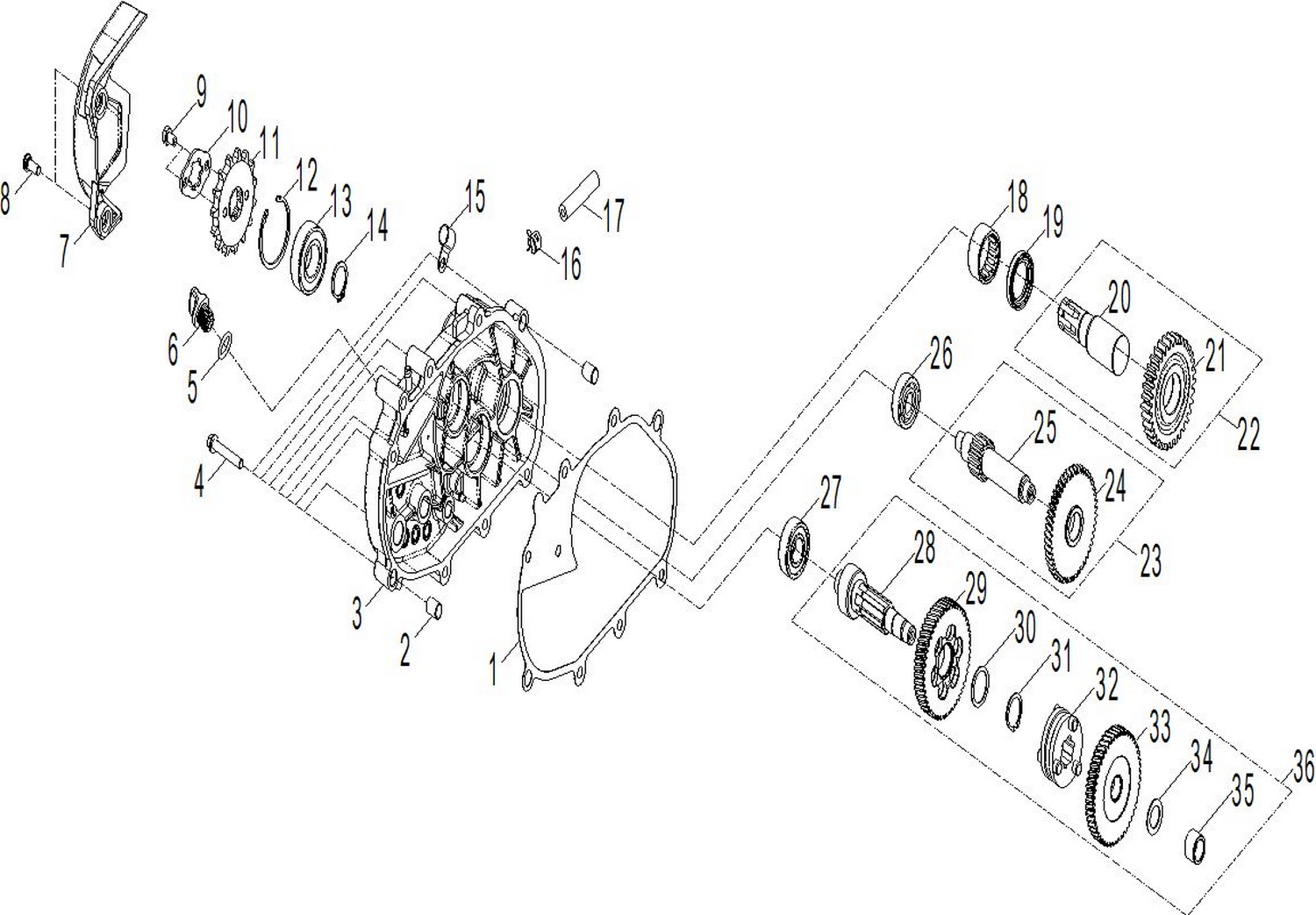

04- Drive - Transmission - 110 EFI & 110 XXC
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A2139518C003 | Transmission Cover Gasket |
| 2 | A9430110140 | Dowel Pin |
| 3 | A2130018C00A | Cover |
| 4 | A960000604088C3 | Hex. Flange Screw M6 X 40 |
| 5 | A9321001326 | O-RIng |
| 6 | A15650111001 | Oil Plug Screw |
| 7 | A40520T91070 | Rear Sprocket Cover |
| 8 | A935020601680K3 | Round Head Bolt With Spring Washer |
| 9 | A920000601080C3 | Hexagonal Bolt M6 X 10 |
| 10 | A2381118C00A | Plate Fixing |
| 11 | A2380122C000 | Drive Sprocket 15T |
| 12 | A945124200R | Circlip, Interior |
| 13 | A961006004LLUC3/ZG | Ball Bearing |
| 14 | A945112000S | External CirClip |
| 15 | A12106210000 | Clip, Fuel Hose |
| 16 | A9451510006 | Hose Clamp |
| 17 | A11211209000 | Vent Tube (270 MM) |
| 18 | A96200253315 | Needle Bearing, HMK2515 |
| 19 | A96504253506NBR | Oil Seal |
| 20 | A2343118C000 | Final Drive Shaft |
| 21 | A2343218C000 | Final Gear |
| 22 | A2343018C000 | Final Drive Shaft Set |
| 23 | A23420201000 | Idle Shaft Set |
| 24 | A23423201000 | Idle Gear |
| 25 | A23421201000 | Idle Shaft |
| 26 | A961006201000000 | Ball Bearing |
| 27 | A961006202000000 | Ball Bearing |
| 28 | A2344118S000 | Main Shaft |
| 29 | A23460201000 | Reverse Gear |
| 30 | A941012025010000 | Flat Washer |
| 31 | A945171900S | CirClip |
| 32 | A22430203000 | Clutch |
| 33 | A23450201000 | Gear, Main Shaft |
| 34 | A94101142201000L | Flat Washer |
| 35 | A23442201000 | Spacer |
