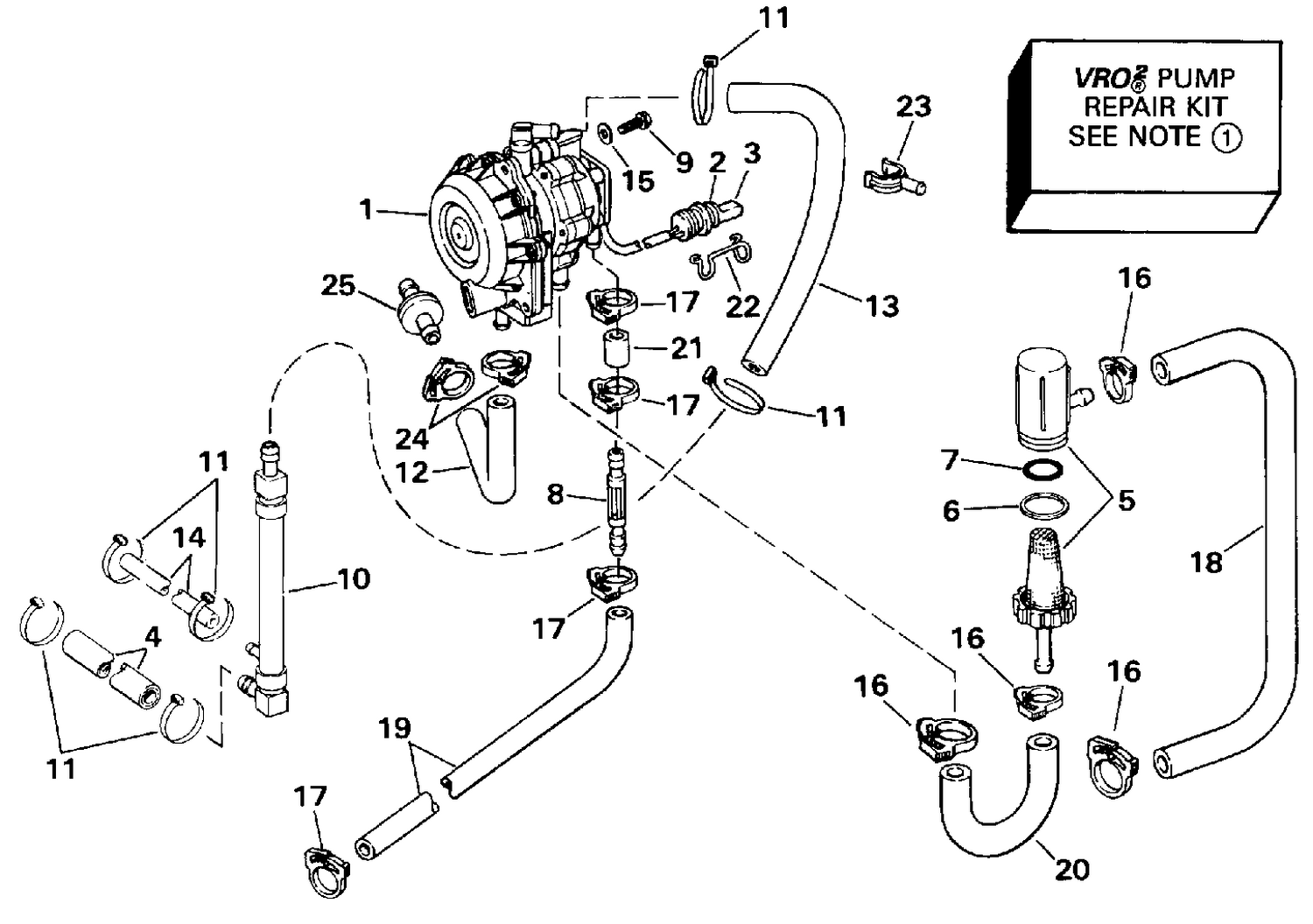

| Ref | Part Number | Description |
|---|
| 1 |
5007420 |
Kit Ay This part replaces 0175107. |
| 4 |
HOSE, |
Fuel manifold to carb., 4 1/2" (114mm) |
| 5 |
0398541 |
CARBURETOR REPAIR KIT |
| 8 |
0331623 |
FILTER AND HOSE ASSY. |
| 11 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 12 |
0332851 |
FLEXIBLE D’IMPULSIONS |
| 13 |
0332851 |
FLEXIBLE D’IMPULSIONS |
| 14 |
HOSE, |
MANF. to primer, 13" (330mm) |
| 17 |
0322654 |
PINCE RAPIDE, flexible d'huile |
| 18 |
HOSE, |
Connector to filter, 11 1/2" (292mm) |
| 19 |
HOSE, |
Fuel connector to sight tube, 14" (356mm) |
| 20 |
0334131 |
FLEXIBLE, impulsions |
| 21 |
HOSE, |
Sight tube pump, 1 1/2" (38mm) |
| 22 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 23 |
0329661 |
SUPPORT/BOUCHON |
