| Ref | Part Number | Description |
|---|
| 1 |
5005177 |

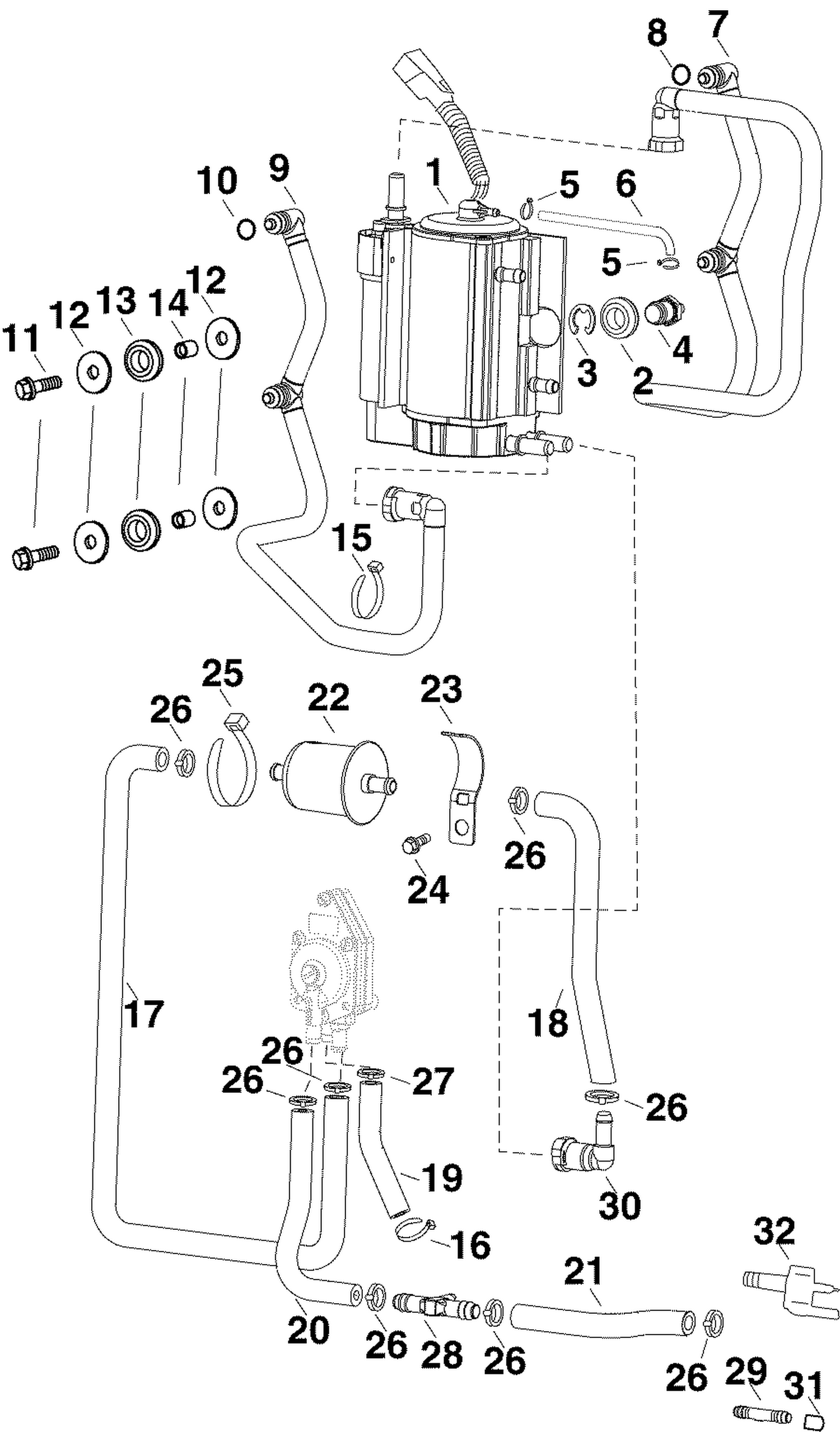

FUEL VAPOR SEPARATOR/ PUMP Assy |
| 3 |
0510487 |
RETAINING RING |
| 7 |
5005344 |
FUEL RAIL Assy, Supply |
| 9 |
5005343 |
FUEL RAIL Assy, Return |
| 10 |
504154331 |
Gearbox Case Ass'y |
| 14 |
0335328 |
SCREW, Connector |
| 15 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 16 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 17 |
0350792 |
HOSE, Fuel pump to fuel filter |
| 18 |
0348561 |
HOSE, Fuel filter to vapor separator |
| 20 |
0350998 |
HOSE, Oil tee to fuel pump |
| 20 |
250001213 |
Socket Head Screw M6 X 18 |
| 21 |
0351226 |
HOSE, Fuel inlet to tee |
| 22 |
5007335 |
FILTER AY, Fuel This part replaces 5005266. |
| 23 |
0351009 |
CLAMP, Fuel filter to C/C |
| 24 |
0312455 |
BOLT,Throttle lever retainer |
| 28 |
0345701 |
FITTING, Fuel to Oil tee |
| 31 |
0331649 |
CAP, Connector - fuel |
| 70 |
250001016 |
Hex Flanged Screw M8 X 25 S.Grip |
| 80 |
233261434 |
Flanged Elastic Nut M6 |
| 100 |
293200168 |
Oil Seal |
| 140 |
504153665 |
Sprocket 21 Teeth |
| 150b |
293350142 |
Ball Bearing |
| 150c2 |
504154043 |
Cap |
| 150d |
293300291 |
O-Ring Seal This part replaces 293300230. |
| 390 |
293370133 |
External Snap Ring |
| 450 |
293350131 |
Ball Bearing |
| 460 |
504153793 |
Oil Deflector |
| 470 |
207561644 |
Hex Flange Screw M6 X 16, Scotch Grip |
| 480 |
234061410 |
Flat Washer 6 mm |
| 600b |
293370055 |
Circlip |
| 600d |
293370133 |
External Snap Ring |
| 610 |
504154126 |
Shaft Gearbox Selection Ass'y |
| 620 |
504154127 |
Shaft Gearbox Out Ass'y |
| 700 |
293350053 |
Ball Bearing |
| 710 |
293350153 |
Ball Bearing |
| 720 |
293350117 |
Ball Bearing |
| 730 |
504153165 |
Ball Bearing |
| 740 |
504153165 |
Ball Bearing |
| 750 |
504154145 |
Cap |
| 1100 |
293200159 |
Oil Seal |
| 1120 |
504152582 |
Circlip |
| 1130 |
504153995 |
Pignon Chaîne 45 Dents |
| 1140 |
504152572 |
Circlip |
| 1500 |
504153679 |
Drive Chain 96 Links |
| 1510 |
414575600 |
Hair Pin |
| 1520 |
504153627 |
Adjustment Screw |
| 1540 |
250500013 |
Hex. Countersunk Drain Plug |
| 1545 |
504153704 |
Magnetic Plug |
| 1550 |
293300202 |
O-Ring |
| 1580 |
267001113 |
Nylon Plug |
| 1590 |
250500013 |
Hex. Countersunk Drain Plug |
| 1600 |
504154577 |
Chain Tensioner |
| 1610 |
504153312 |
Chain Slider |
| 1650 |
293370105 |
Circlip |
| 1680 |
414036300 |
Grommet |
| 1690 |
207588544 |
Hex. Flange Screw M8 X 85, Scotch Grip |
| 1700d |
515179692 |
Clip Connector |
| 1700f |
415130141 |
Sleeve |
| 1710 |
293300288 |
O-Ring Seal This part replaces 293300197. |
| 1720 |
250001153 |
Flanged Hex. Screw M6X20 |
| 1725 |
250001153 |
Flanged Hex. Screw M6X20 |
| 1740a |
414580700 |
Male Connector |
| 1740b |
219704539 |
Hose 5.7MM - 630MM |
| 1790 |
250001015 |
Flanged Hex. Screw M6 X 35 |
| 2030 |
293300201 |
O-Ring |
| 2040 |
504154043 |
Cap |
| 2050 |
504152572 |
Circlip |
| 2100 |
504154015 |
Speed Selector Support |
| 2110 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 2150 |
207584544 |
Hex. Flange Screw M8 X 45, Scotch Grip |
| 2160 |
504153648 |
Spacer |
| 2170 |
207664544 |
Hex. Flange Screw M6 X 45 |
| 2210 |
504154245 |
Actuating Rod Ass'y |
| 2220 |
504154100 |
Axle Fork |
| 2230 |
504154101 |
Fork |
| 2240 |
293300202 |
O-Ring |
| 2250 |
250400045 |
Spring Pin M5 X 16 |
| 2270 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 2280 |
233261434 |
Flanged Elastic Nut M6 |
| 2300 |
504153735 |
Bushing |
| 2320 |
233261434 |
Flanged Elastic Nut M6 |
| 2350 |
504154271 |
Extrusion |
| 2360 |
707003211 |
Lever Trim |
| 2370 |
232180491 |
Hex. Jam Nut M8 |
| 2380 |
504154141 |
Threaded Bar |
| 2390 |
504153984 |
Lever Arm Spring |
| 2400 |
504153977 |
Ball Joint |
| 2410 |
232081414 |
Hex. Nut M8 |
| 2420 |
232081414 |
Hex. Nut M8 |
| 2500b |
250300028 |
Clinch Stud, M8 X 25 |
| 2510 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 2610 |
504153980 |
Plate |
| 2620 |
707000310 |
Spring |
| 2630 |
207664044 |
Hex. Flange Screw M6 X 40 |
| 2640 |
504154782 |
Spacer |
| 2650 |
233261434 |
Flanged Elastic Nut M6 |
| 2700 |
512061370 |
Rope Guide |
| 2710 |
250000767 |
Torx Truss Screw M6 X 12 |
| 3000d |
504154417 |
Retaining Ring |
| 3000f |
293350059 |
Ball Bearing |
| 3000g |
293300291 |
O-Ring Seal This part replaces 293300230. |
| 3200a |
415130661 |
Clip |
| 3200b |
504152651 |
Cleat |
| 4000 |
250000764 |
Hex. Button Head Screw M8 X 1.25 X 35 |
