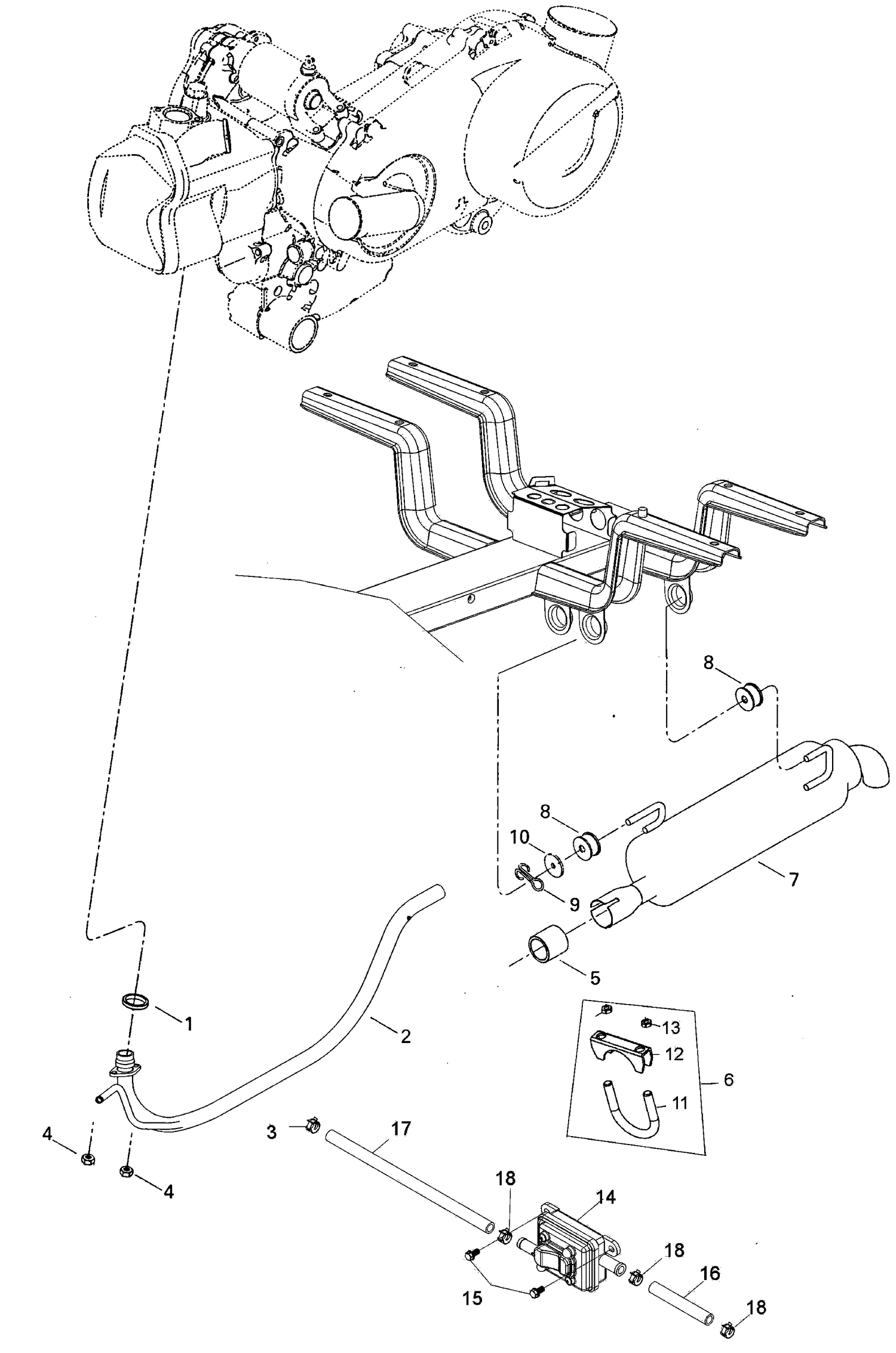

| Ref | Part Number | Description |
|---|
| 1 |
707600239 |
PIPE GASKET - Call your local BRP dealership |
| 2 |
A1831117900A |
FRONT EXHAUST PIPE - Call your local BRP dealership |
| 3 |
A9451318000 |
Spring Clamp |
| 4 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 5 |
707600175 |
PIPE GASKET - Call your local BRP dealership |
| 6 |
293650148 |
U-CLAMP - Call your local BRP dealership |
| 7 |
A1832117900A |
Muffler |
| 8 |
707600702 |
Anti-Vibration Rubber This part replaces 707600012. |
| 9 |
211400017 |
Cotter Pin |
| 10 |
250200030 |
WASHER - Call your local BRP dealership |
| 11 |
Not |
Available As Spare Part - Fixed Ring |
| 12 |
Not |
Available As Spare Part - Fixed Plate |
| 13 |
Not |
Available As Spare Part - Hex. Flanged Nut M8 |
| 14 |
A17410127000 |
Reed Valve Comp |
| 15 |
A960000601610G |
HEXAGONAL WASHER FACE BOLT M6X16 - Call your local BRP dealership |
| 16 |
A17411179000 |
Hose |
| 17 |
A17412179000 |
HOSE - Call your local BRP dealership |
