Home / BRP / 2021 / 008 - SKI-DOO - North America - SUMMIT Series / 001 - SUMMIT 600R E-TEC - SP - North America, 2021 000CCMA00 000CCMB00 000CCMC00 000CCMD00 000CCME00 000CCMF00 000CCMG00 000CCMH00 000CCMJ00 000CCMK00 000CXMA00 000CXMB00 000CXMC00 000CXMD00 000CXME00 / 07- Body - Seat

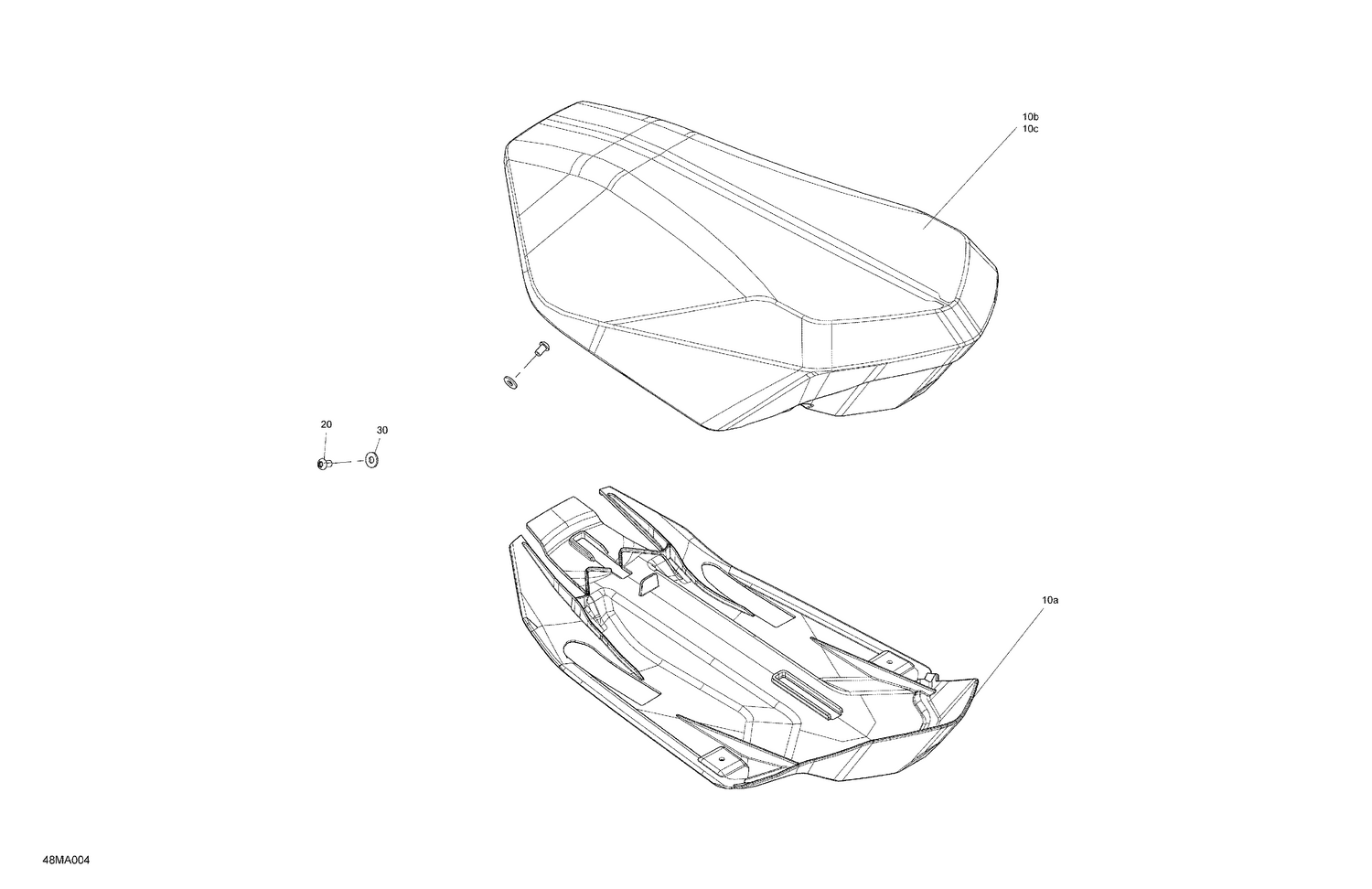

07- Body - Seat

07- Body - Seat

Parts (4)

RefPart NumberDescription
10a 510006537 Seat Base
10b 510006538 Seat Foam
10c 510005997 Seat Cover
20 250001158 Torx Screw Button Head M6X10
