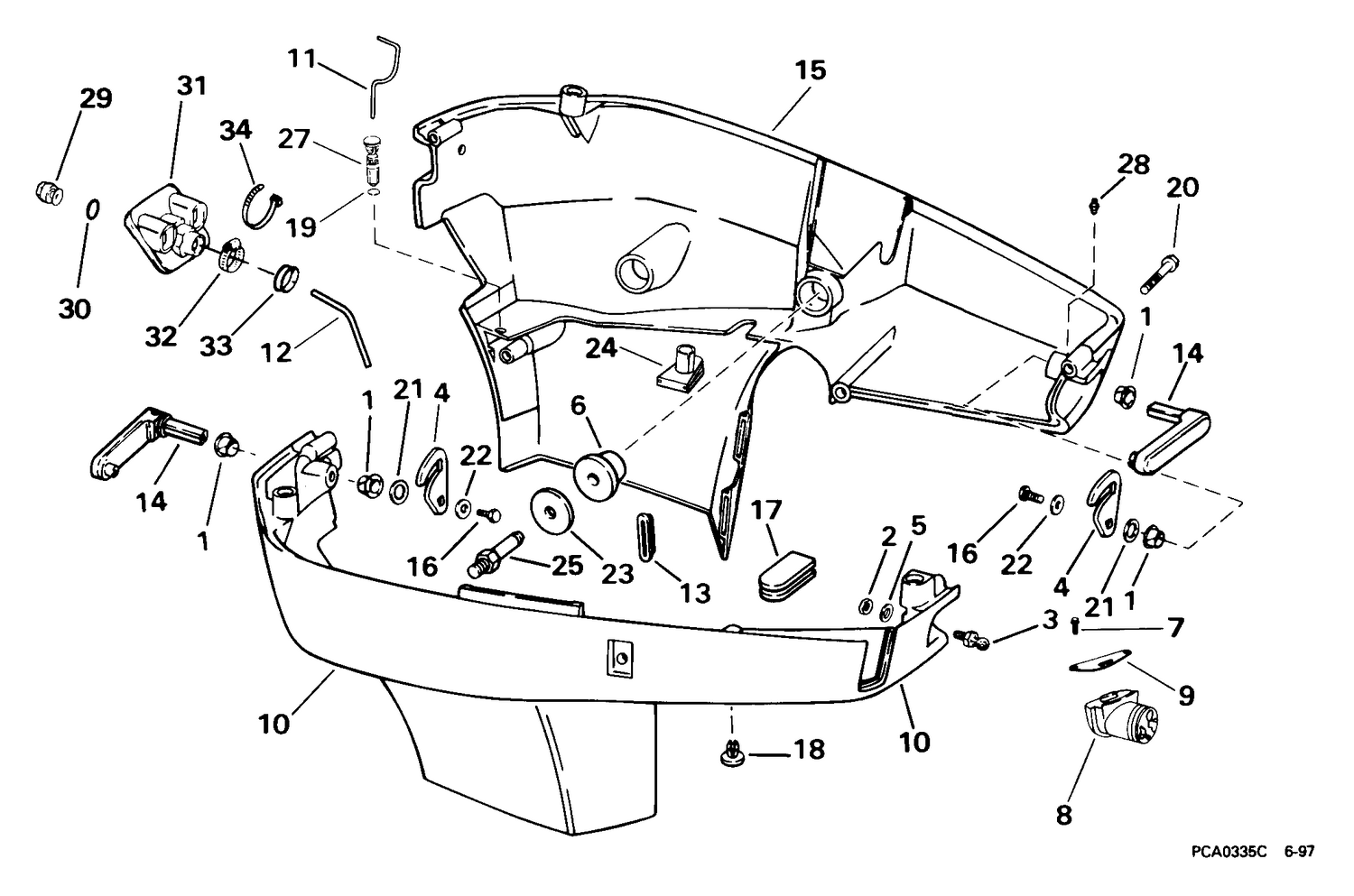

| Ref | Part Number | Description |
|---|
| 6 |
0349557 |
MOUNT This part replaces 0328584. |
| 8 |
0340721 |
GROMMET, Control cables & fuel hoses |
| 8 |
0342290 |
GROMMET, Control cable entry |
| 9 |
0341099 |
BRACKET, Grommet |
| 10 |
0437146 |
ENGINE COVER & SEAL ASSY., Stbd. |
| 10 |
5004581 |
Lmc Ay This part replaces 0439773. |
| 15 |
0345160 |
LOWER COVER, Port |
| 15 |
5004580 |
Lmc Ay This part replaces 0344806. |
| 17 |
0331896 |
Grommet, Plug - Trim lead hole |
| 18 |
0333011 |
PLUG |
| 20 |
0325115 |
SCREW, Oil tank/EMM mount |
| 23 |
0349556 |
Washer This part replaces 0329749. |
| 25 |
0329743 |
STUD, Cover mount |
| 29 |
0436726 |
INDICATOR/PLUG, Overboard water |
| 30 |
0301967 |
O RING |
| 31 |
0345586 |
GROMMET Assy |
| 32 |
0912627 |
CLAMP |
| 33 |
0340383 |
LINER, Clamp |
