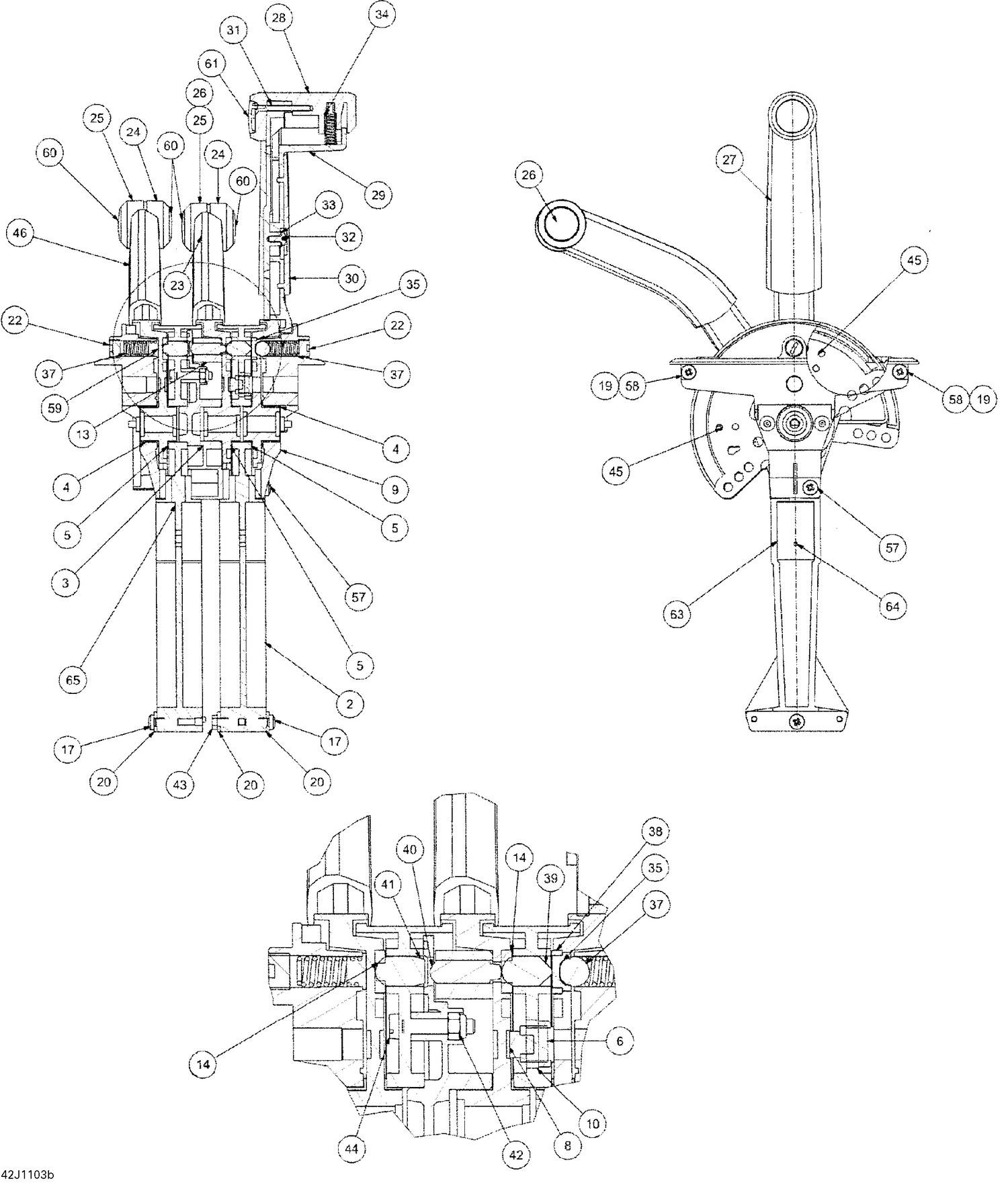

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - N/A |
| 3 |
Not |
Available As Spare Part - N/A |
| 4 |
277000397 |
BUSHING - Call your local BRP dealership |
| 5 |
277000398 |
BUSHING - Call your local BRP dealership |
| 6 |
277001813 |
BUSHING - Call your local BRP dealership |
| 8 |
277001814 |
FRICTION PIN - Call your local BRP dealership |
| 9 |
Not |
Available As Spare Part - N/A |
| 10 |
277001816 |
BUSHING - Call your local BRP dealership |
| 13 |
277001817 |
THROTTLE LEVER SELECTOR - Call your local BRP dealership |
| 14 |
Not |
Available As Spare Part - N/A |
| 17 |
204130092 |
SCREW M5 X 16 - Call your local BRP dealership |
| 19 |
204100016 |
SCREW M5 X 20 - Call your local BRP dealership |
| 20 |
204390227 |
RETAINING PLATE - Call your local BRP dealership This part replaces 204130091. |
| 22 |
277000402 |
CAP SCREW - Call your local BRP dealership |
| 23 |
277001819 |
CENTRAL THROTTLE LEVER - Call your local BRP dealership |
| 24 |
277001820 |
LEFT HALF KNOB - Call your local BRP dealership |
| 25 |
277001821 |
RIGHT HALF KNOB - Call your local BRP dealership |
| 26 |
277001822 |
SCREW - Call your local BRP dealership |
| 27 |
277001823 |
MOLDED LEVER - Call your local BRP dealership |
| 28 |
277001824 |
SHIFT KNOB - Call your local BRP dealership |
| 29 |
277001825 |
LOCK - Call your local BRP dealership |
| 30 |
277001826 |
LOCK COVER - Call your local BRP dealership |
| 31 |
277001827 |
SCREW - Call your local BRP dealership |
| 32 |
277001828 |
SCREW M4 X 8 - Call your local BRP dealership |
| 33 |
277001829 |
WASHER - Call your local BRP dealership |
| 34 |
277001830 |
SPRING - Call your local BRP dealership |
| 35 |
277001831 |
BALL BASE - Call your local BRP dealership |
| 36 |
277000399 |
BALL - Call your local BRP dealership |
| 37 |
277001832 |
DETENT SPRING - Call your local BRP dealership |
| 38 |
Not |
Available As Spare Part - N/A |
| 39 |
277001834 |
PIN - Call your local BRP dealership |
| 40 |
277001835 |
PIN - Call your local BRP dealership |
| 41 |
277001836 |
PIN - Call your local BRP dealership |
| 42 |
Not |
Available As Spare Part - N/A |
| 43 |
204130093 |
SCREW M5 X 14 - Call your local BRP dealership |
| 44 |
Not |
Available As Spare Part - N/A |
| 45 |
277001839 |
Screw |
| 46 |
277001840 |
RIGHT MOLDED THROTTLE LEVER - Call your local BRP dealership |
| 57 |
Not |
Available As Spare Part - N/A |
| 58 |
Not |
Available As Spare Part - N/A |
| 59 |
277000403 |
FRICTION INSERT - Call your local BRP dealership |
| 60 |
277001843 |
RED KNOB CAP - Call your local BRP dealership |
| 61 |
277001844 |
BLACK KNOB CAP - Call your local BRP dealership |
| 63 |
277001846 |
MICROSWITCH - Call your local BRP dealership |
| 64 |
277001847 |
SCREW M3X6 - Call your local BRP dealership |
