| Ref | Part Number | Description |
|---|
| 1 |
0438796 |

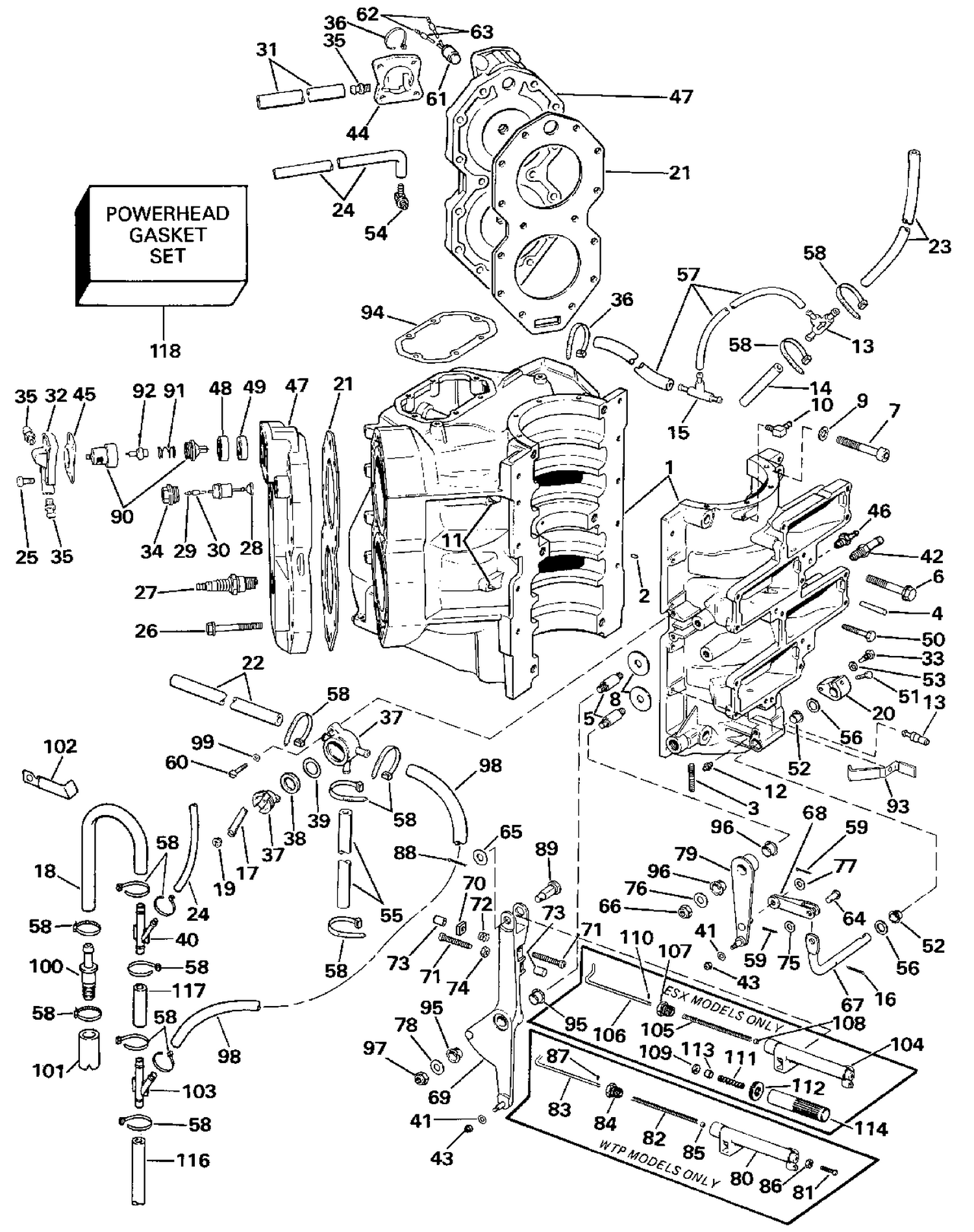

CYLINDER & CRANKCASE ASSY. This part replaces 0432407. |
| 14 |
HOSE, |
Valve, lower, 1 1/2 in. (38mm) |
| 15 |
0325569 |
T, amorçage |
| 16 |
0330145 |
COTTER PIN |
| 17 |
0329740 |
ARM, Control arm |
| 18 |
0913438 |
HOSE, 30 (DEGREE) Tee to check valve |
| 19 |
0315094 |
BUSHING |
| 20 |
0326644 |
LEVER, Shift rod |
| 21 |
0340115 |
GASKET, Cylinder head This part replaces 0333549. |
| 22 |
0330366 |
HOSE, Control valve to cover |
| 23 |
HOSE, |
Bearing hsg., 15 in. (381mm) |
| 24 |
0329971 |
HOSE, Adapter to control valve |
| 25 |
0909533 |
SCREW, Pressure relief valve cover |
| 26 |
0322323 |
SCREW |
| 27 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 27 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 28 |
0584592 |
SWITCH, Temperature This part replaces 0583441. |
| 31 |
0330365 |
FLEXIBLE, indicateur d'éjection |
| 32 |
0329745 |
COVER, Thermostat stbd |
| 33 |
0327590 |
PIN, Shift lever |
| 37 |
0394407 |
CONTROL VALVE |
| 38 |
0329787 |
SEAL |
| 39 |
0330262 |
WIPER |
| 41 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 44 |
0329744 |
COVER, Thermostat, port |
| 45 |
0394408 |
DIAPHRAGM, Thermostat cover |
| 46 |
0392988 |
CHECK VALVE |
| 48 |
0330273 |
CAP, Thermostat |
| 49 |
0320880 |
SEAT |
| 50 |
0302288 |
BOLT |
| 51 |
0328695 |
CLAMP, Engine cable |
| 52 |
0312708 |
BUSHING |
| 55 |
0331838 |
HOSE, Adapter to control valve |
| 56 |
0202026 |
LOCK WASHER, Stud |
| 57 |
HOSE, |
Drain system |
| 58 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 61 |
0583789 |
TEMPERATURE SWITCH, Port |
| 64 |
0340134 |
PIN, Shift lever This part replaces 0324364. |
| 65 |
0330995 |
RONDELLE, levier |
| 67 |
0329083 |
LEVER, Shift |
| 68 |
0340133 |
LINK, Shift lever This part replaces 0329085. |
| 69 |
0432649 |
THROTTLE LEVER |
| 71 |
0334219 |
SCREW |
| 71 |
0334220 |
SCREW, CPS bracket |
| 73 |
0318660 |
BUMPER, Screw, throttle stop |
| 79 |
0433481 |
SHIFT ARM |
| 88 |
0330145 |
COTTER PIN |
| 89 |
0328636 |
PIN, Advance link |
| 90 |
0434137 |
THERMOSTAT ASSY, This part replaces 0394409. |
| 91 |
0434137 |
THERMOSTAT ASSY, This part replaces 0329766. |
| 92 |
0394411 |
THERMOSTAT & SEAT ASSY. |
| 93 |
0334169 |
CLAMP, Hose, control valve |
| 98 |
0334740 |
HOSE, Control valve to aspirator |
| 100 |
0986534 |
CHECK VALVE, Aspirator |
| 101 |
0913439 |
HOSE, Aspirator |
| 104 |
0432095 |
LINK ASSY., Spark advance |
| 106 |
0334313 |
ROD, Spark advance link |
| 109 |
0334311 |
STOP, Adjustment |
| 111 |
0334312 |
SPRING, Adjustment housing |
| 112 |
0334314 |
LOCKNUT, Housing |
| 113 |
0334315 |
GUIDE, Spring |
| 114 |
0334316 |
HOUSING, Adjustment |
| 115 |
0394892 |
CHECK VALVE ASSY. |
| 116 |
0912289 |
HOSE, Overboard |
