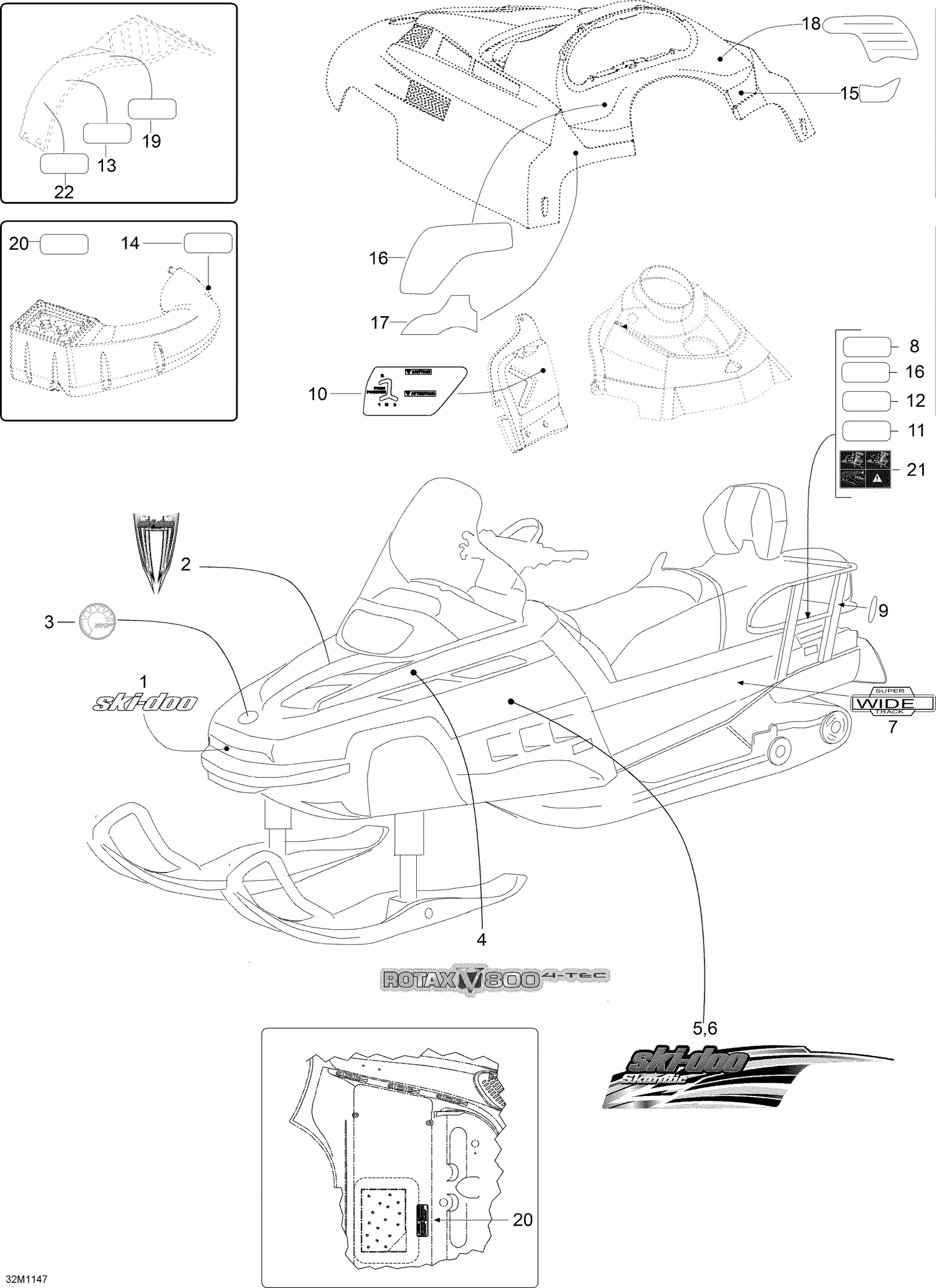

| Ref | Part Number | Description |
|---|
| 1 |
516000338 |
DECAL - «SKI-DOO» - Call your local BRP dealership |
| 2 |
516003476 |
HOOD DECAL - Call your local BRP dealership |
| 3 |
516008739 |
BRP Logo 68mm This part replaces 219902469. |
| 4 |
516003477 |
HOOD DECAL - Call your local BRP dealership |
| 5 |
516003561 |
SIDE DECAL RH - Call your local BRP dealership |
| 6 |
516003560 |
SIDE DECAL LH - Call your local BRP dealership |
| 7 |
516003484 |
Frame Decal |
| 8 |
516002958 |
Warning Decal |
| 9 |
520000523 |
REFLECTOR - Call your local BRP dealership |
| 10 |
516001201 |
REVERSE DECAL - Call your local BRP dealership |
| 11 |
516003038 |
WARNING DECAL-SECURITY-FRENCH - Call your local BRP dealership This part replaces 516002667. |
| 12 |
516004568 |
WARNING DECAL, SECURITY - Call your local BRP dealership |
| 13 |
516004649 |
Security label, Belt Guard |
| 14 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 15 |
516003470 |
INSTRUCTION DECAL - Call your local BRP dealership |
| 16 |
516003471 |
INSTRUCTION DECAL - Call your local BRP dealership |
| 17 |
516003472 |
INSTRUCTION DECAL - Call your local BRP dealership |
| 18 |
516003473 |
INSTRUCTION DECAL - Call your local BRP dealership |
| 19 |
516005521 |
Caution Decal, Oil Level This part replaces 516004718. |
| 20 |
516002965 |
WARNING DECAL, HOT PARTS - Call your local BRP dealership |
| 21 |
516003474 |
SECURITY LABEL - Call your local BRP dealership |
| 22 |
Not |
Available As Spare Part - E.P.A Decal |
| 23 |
Not |
Available As Spare Part - SSCC Decal |
| 24 |
516003039 |
MAXIMUM CARGO LOAD LABEL - Call your local BRP dealership |
