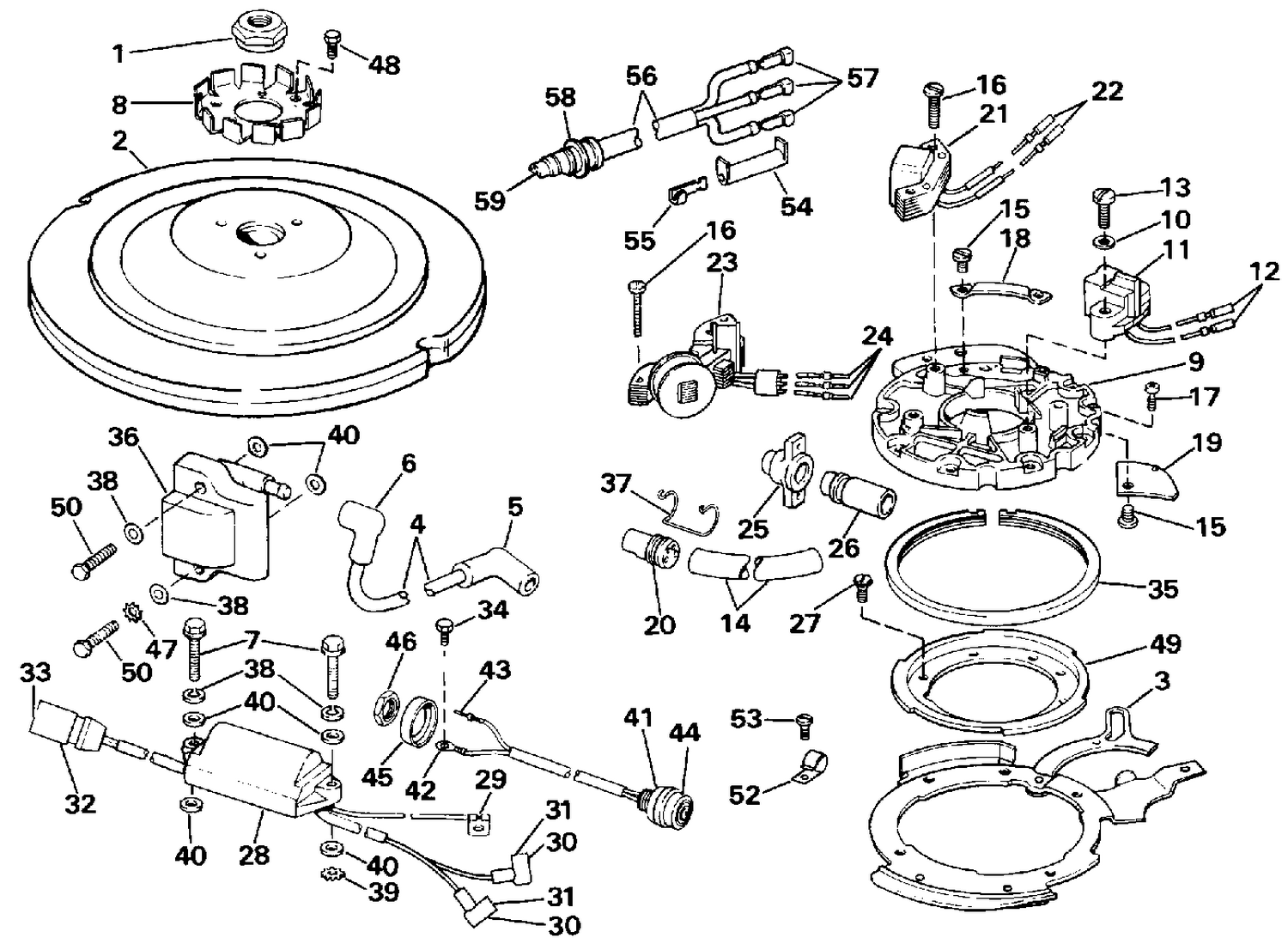

| Ref | Part Number | Description |
|---|
| 1 |
0326111 |
NUT This part replaces 0308457. |
| 2 |
0582625 |
FLYWHEEL ASSEMBLY |
| 3 |
0395406 |
RETAINER & LINK ASSY. |
| 4 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 7 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter |
| 8 |
0202111 |
RATCHET |
| 9 |
0582624 |
PLATE & SLEEVE ASSY |
| 11 |
0583387 |
SENSOR ASSEMBLY This part replaces 0581655. |
| 14 |
0512765 |
BRACKET |
| 15 |
0303212 |
VIS, collier & capot |
| 17 |
0511460 |
VIS, dispositif de retenue |
| 18 |
0511458 |
COLLIER, fils |
| 19 |
0511459 |
CACHE, fils |
| 21 |
0581670 |
CHARGE COIL |
| 27 |
0319547 |
SCREW, Clamp & ground lead |
| 28 |
0582261 |
POWER PACK ASSEMBLY |
| 35 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 36 |
0582508 |
COIL ASSY |
| 37 |
0512743 |
DISPOSITIF DE RETENUE |
| 40 |
0329176 |
FIBER WASHER, Ignition coil |
| 46 |
0313779 |
NUT, Shorting switch |
| 48 |
0308072 |
SCREW |
| 49 |
0322102 |
PLATE, Support |
| 52 |
0316669 |
CLAMP This part replaces 0319473. |
| 0583163 |
0583163 |
PLATE ASSY. COMPLETE |
