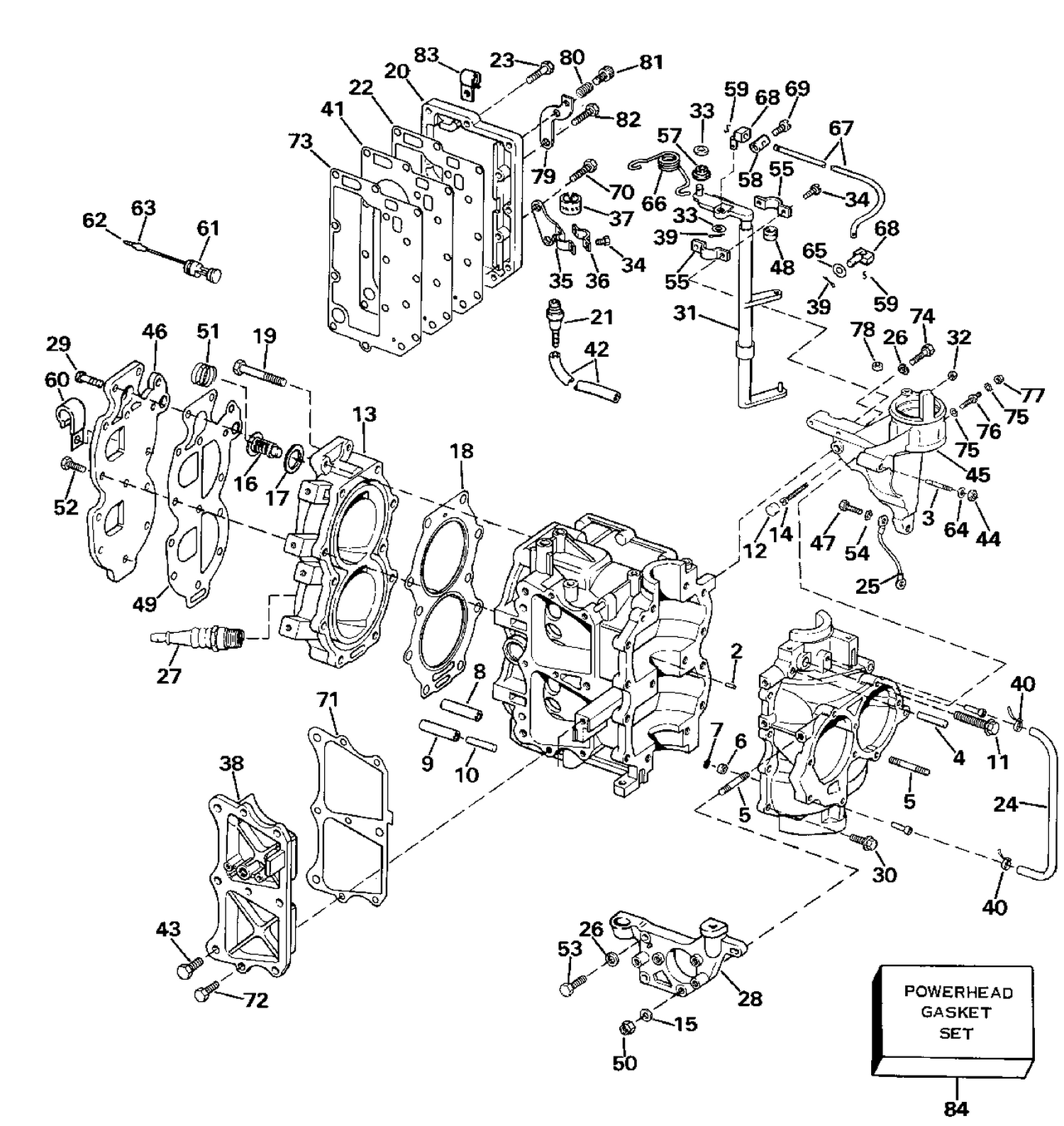

| Ref | Part Number | Description |
|---|
| 1 |
0396165 |
CYL. & C'CASE ASSY. |
| 1 |
0435942 |
CYL. & C'CASE ASSY. This part replaces 0432540. |
| 12 |
0314416 |
BUMBER, Advance screw |
| 13 |
0335635 |
CYL. HEAD ASSY. This part replaces 0327671. |
| 15 |
0329241 |
RONDELLE |
| 16 |
5005440 |
THERMOSTAT This part replaces 0393659. |
| 17 |
0329319 |
GASKET, Thermostat |
| 18 |
0329419 |
GASKET, Cylinder head |
| 19 |
0305027 |
SCREW |
| 20 |
0391465 |
EXHAUST COVER, Outer |
| 22 |
0324323 |
GASKET, Exh. cover, outer to inner |
| 23 |
0306418 |
VIS, ancrage |
| 24 |
HOSE, |
Mfld. to crankcase 12" (305mm) |
| 25 |
0583051 |
GROUND LEAD ASSY. |
| 27 |
0432424 |
SPARK PLUG , QL16V |
| 27 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 28 |
0325340 |
BRACKET, Starboard |
| 30 |
0314979 |
SCREW, Cylinder to c'case |
| 31 |
0438075 |
CONTROL LEVER & PIN This part replaces 0398026. |
| 33 |
0305831 |
SHIM |
| 34 |
0331036 |
VIS, attache de palier |
| 35 |
0331448 |
BRACKET, Control lever |
| 36 |
0331919 |
BEARING CLAMP, Leaver, lower |
| 37 |
0331918 |
BEARING, Lever lower |
| 38 |
0330549 |
BY-PASS COVER ASSY. |
| 40 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 41 |
0326263 |
EXHAUST COVER, Inner |
| 42 |
HOSE, |
Ovbd. pump ind., 16" (406mm) |
| 43 |
0332203 |
SCREW, By-pass cover |
| 45 |
0333929 |
SUPPORT, bâbord |
| 46 |
0327673 |
COVER, Cylinder head |
| 48 |
0320524 |
BEARING, Control lever |
| 49 |
0327674 |
GASKEET, Water cover |
| 51 |
0328051 |
SPRING, Pressure release |
| 52 |
0300646 |
VIS, ancrage |
| 53 |
0303398 |
VIS, support |
| 55 |
0320523 |
BEARING CLAMP |
| 57 |
0307841 |
BUSHING, Control lever |
| 58 |
0304222 |
COLLAR |
| 59 |
0307565 |
PIN |
| 60 |
0330151 |
CLAMP, Harness to oil tank boss |
| 61 |
0584590 |
TEMPERATURE SWITCH This part replaces 0583815. |
| 64 |
0329241 |
RONDELLE |
| 65 |
0551953 |
WASHER |
| 66 |
0316368 |
SPRING |
| 67 |
0320156 |
ROD, Throttle control |
| 68 |
0320786 |
PIVOT PIN |
| 69 |
0304221 |
SCEW,Collar to cable |
| 70 |
0303398 |
VIS, support |
| 71 |
0319661 |
GASKET, By-pass cover |
| 72 |
0300646 |
VIS, ancrage |
| 73 |
0326264 |
GASKET, Exh. cover inner to c'case |
| 74 |
0324813 |
ECREW,Exhaust cover,1-3/8"long |
| 76 |
0311344 |
BOLT, Double end |
| 78 |
0304847 |
JOINT, boulon de démarreur |
| 79 |
0331446 |
SUPPORT DE BUTÉE DE RALENTI |
| 80 |
0331591 |
SPRING SCREW, Idle stop |
| 81 |
0331590 |
SCREW, Idle stop |
| 82 |
0303398 |
VIS, support |
| 83 |
0330151 |
CLAMP, Harness to oil tank boss |
