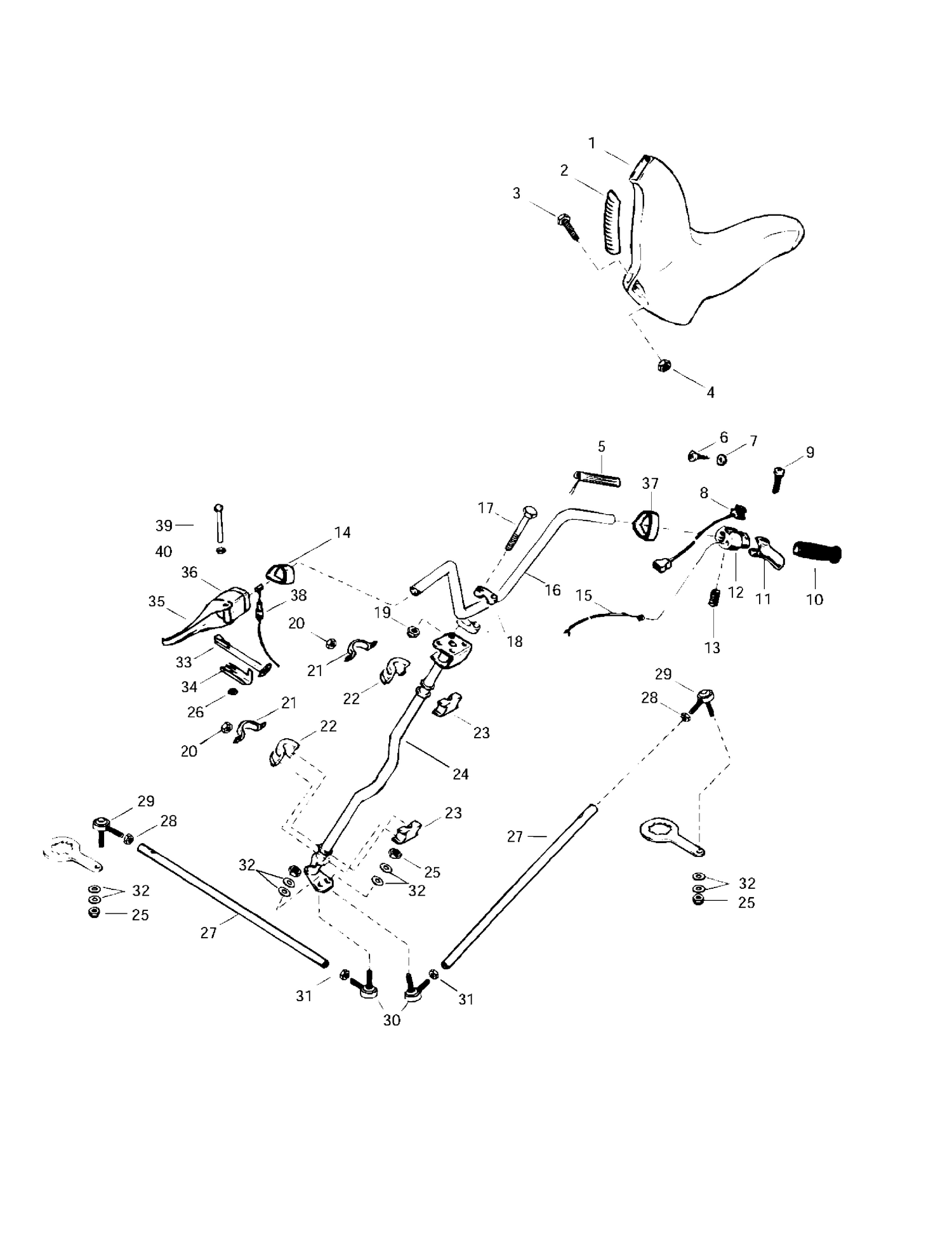

| Ref | Part Number | Description |
|---|
| 1 |
572023800 |
Steering Padding |
| 2 |
572023900 |
Key Way |
| 3 |
208652044 |
Phillips Screw M5 X 20 This part replaces 222852065. |
| 4 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 5 |
544345 |
Heather Assy - Call your local BRP dealership This part replaces M549141. |
| 6 |
414473200 |
Screw |
| 7 |
M20026 |
Washer |
| 8 |
515177362 |
Emergency Stop Switch This part replaces 414612700. |
| 9 |
414438700 |
Lever Pin |
| 10 |
506152483 |
Grip This part replaces M5340464. |
| 11 |
M549142 |
Heat Throttle Handle |
| 12 |
512060603 |
Throttle Housing This part replaces 572086700. |
| 13 |
414440800 |
Socket Set Screw M8 X 10 |
| 14 |
572073800 |
BRAKE COVER - Call your local BRP dealership |
| 15 |
512060861 |
THROTTLE CABLE - Call your local BRP dealership This part replaces M528766. |
| 16 |
M529751 |
BAR-HANDLE - Call your local BRP dealership |
| 17 |
M40286 |
Socket Head Screw M8 X 45 |
| 18 |
M548448 |
Support Guidon *Support-Steer. |
| 19 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 20 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 21 |
517126200 |
Retainer Support |
| 22 |
572064500 |
BUSHING - Call your local BRP dealership |
| 23 |
572064400 |
Bushing |
| 24 |
M539809 |
Main Tube |
| 25 |
232501416 |
Elastic Flange Nut M10 This part replaces M33023. |
| 26 |
389804300 |
Push Nut |
| 27 |
M549752 |
Tie Rod |
| 28 |
M33019 |
RH NUT - Call your local BRP dealership |
| 29 |
506151492 |
RH BALL JOINT - Call your local BRP dealership This part replaces 414768000. |
| 30 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 414768100. |
| 31 |
M33017 |
LH NUT - Call your local BRP dealership |
| 32 |
20068 |
Lock Washer D10 This part replaces M20068. |
| 33 |
572025200 |
Brake Lever |
| 34 |
517229300 |
Spring |
| 35 |
572025700 |
BRAKE HANDLE - Call your local BRP dealership |
| 36 |
M24034 |
Brake Housing |
| 37 |
572044600 |
THROTTLE COVER - Call your local BRP dealership |
| 38 |
M535657 |
Brake Cable |
| 39 |
517229400 |
PIN - Call your local BRP dealership |
