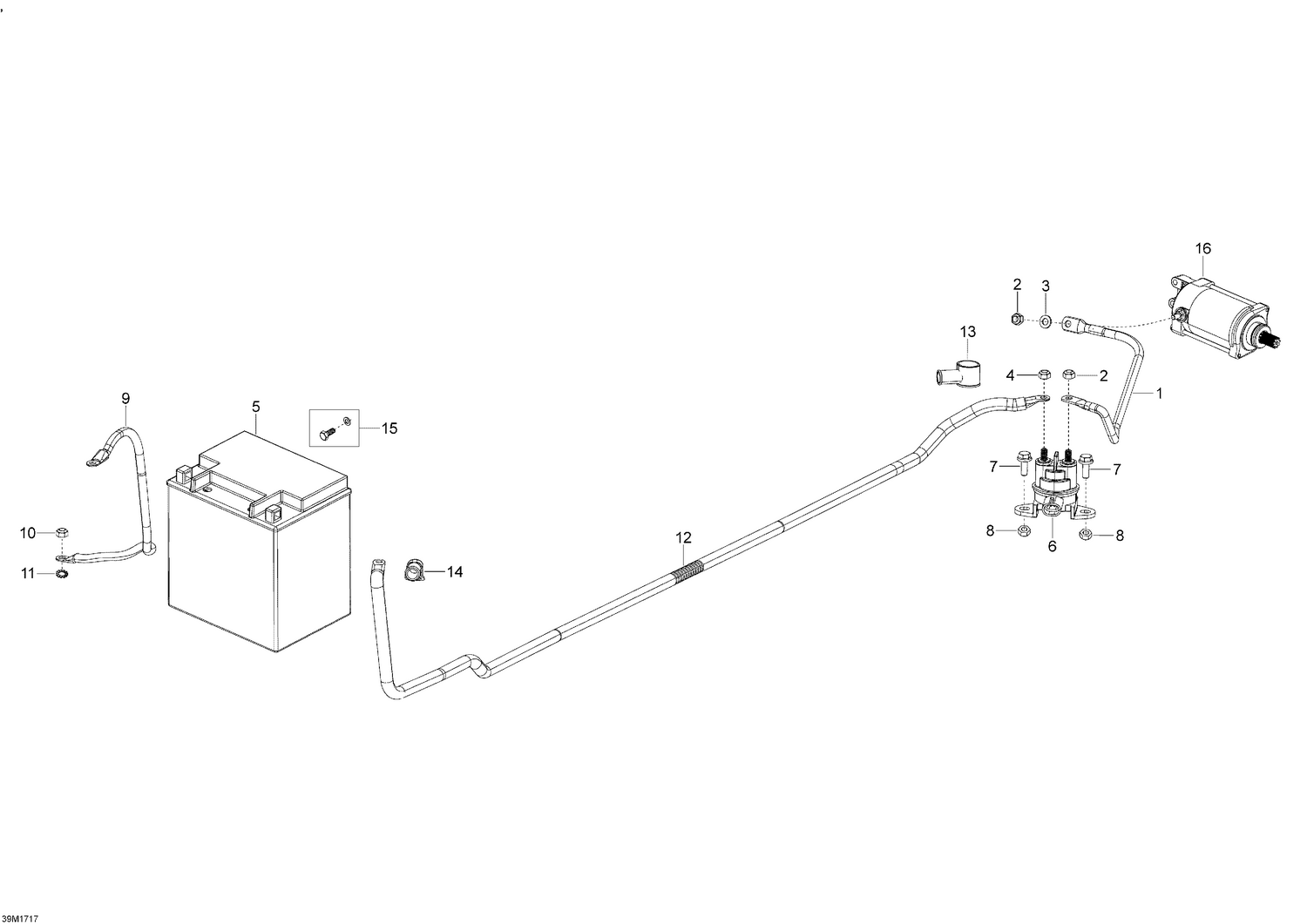

10- Battery And Starter
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 232561434 | Elastic Stop Nut M6 |
| 3 | 234061410 | Flat Washer 6 mm |
| 4 | 232561434 | Elastic Stop Nut M6 |
| 5 | 410301203 | Battery YUASA YTX20L |
| 6 | 278003012 | Starter Relay |
| 7 | 207661644 | Hex. Flange Screw M6 X 16 |
| 9 | 515176780 | Ground Wire |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 250200041 | Lock Washer Serrated M6 |
| 14 | 710000495 | Protector Cap |
| 15 | 250000282 | Battery Bolt Kit |
