Parts Catalog

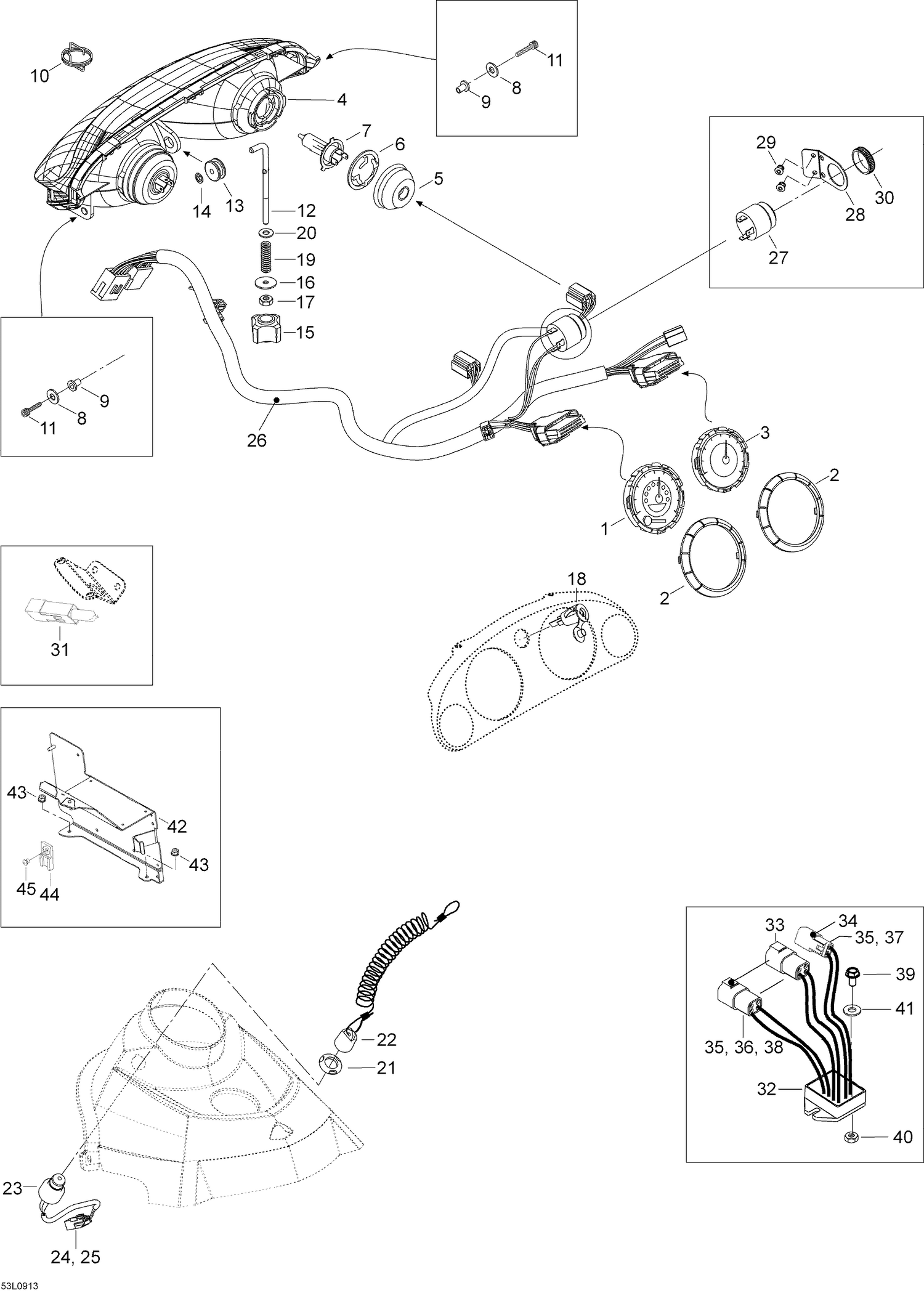

10- Electrical Acessories

Parts (42)

Ref	Part Number	Description
1	515176477	SPEEDOMETER - Call your local BRP dealership
2	515179005	Gauge Ring This part replaces 515176242.
3	515176478	TACHOMETER - Call your local BRP dealership
5	515175911	COVER - Call your local BRP dealership
6	515176385	BULB HOLDER - Call your local BRP dealership
7	515176274	Halogen bulp 60/55W
8	20008	Washer A5,3
9	250100018	NUT M5 - Call your local BRP dealership
10	5447238	Spring
11	40235	Hex. screw M5 x 35
12	605450023	ADJUSTER ROD - Call your local BRP dealership
13	415100800	Grommet - Call your local BRP dealership
14	732610072	Push Nut
15	515175548	Handle - Call your local BRP dealership
16	20038	Washer
17	33010	Lock Nut M6 (1=10Pcs)
18	710001248	Flush mounted socket
19	415100600	SPRING - Call your local BRP dealership
20	20003	Washer A6,4
21	278002963	Safety Nut (DESS Switch) This part replaces 278000508.
22	515178284	Dess. This part replaces 515176461.
24	515175232	Male terminal
25	515175494	Male terminal housing
26	605355923	HARNESS ASS'Y - Call your local BRP dealership
27	515176035	HORN - Call your local BRP dealership
28	5447941	HORN SUPPORT - Call your local BRP dealership
29	36005	Rivet
30	414805101	PLASTIC NUT - Call your local BRP dealership
31	515176234	FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership
33	278001477	FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
34	278001674	Male terminal housing
35	515175568	Female terminal
36	278001478	MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
37	278001672	Male lock
38	293000052	Sealing Cap
39	40030	Screw M6 x 20
40	33010	Lock Nut M6 (1=10Pcs)
41	234062410	Flat Washer 6 mm This part replaces 20009.
42	605353300	DEVICE PLATE - Call your local BRP dealership
43	233261414	Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200.
44	270000141	Clip This part replaces 515175917.
45	36005	Rivet
