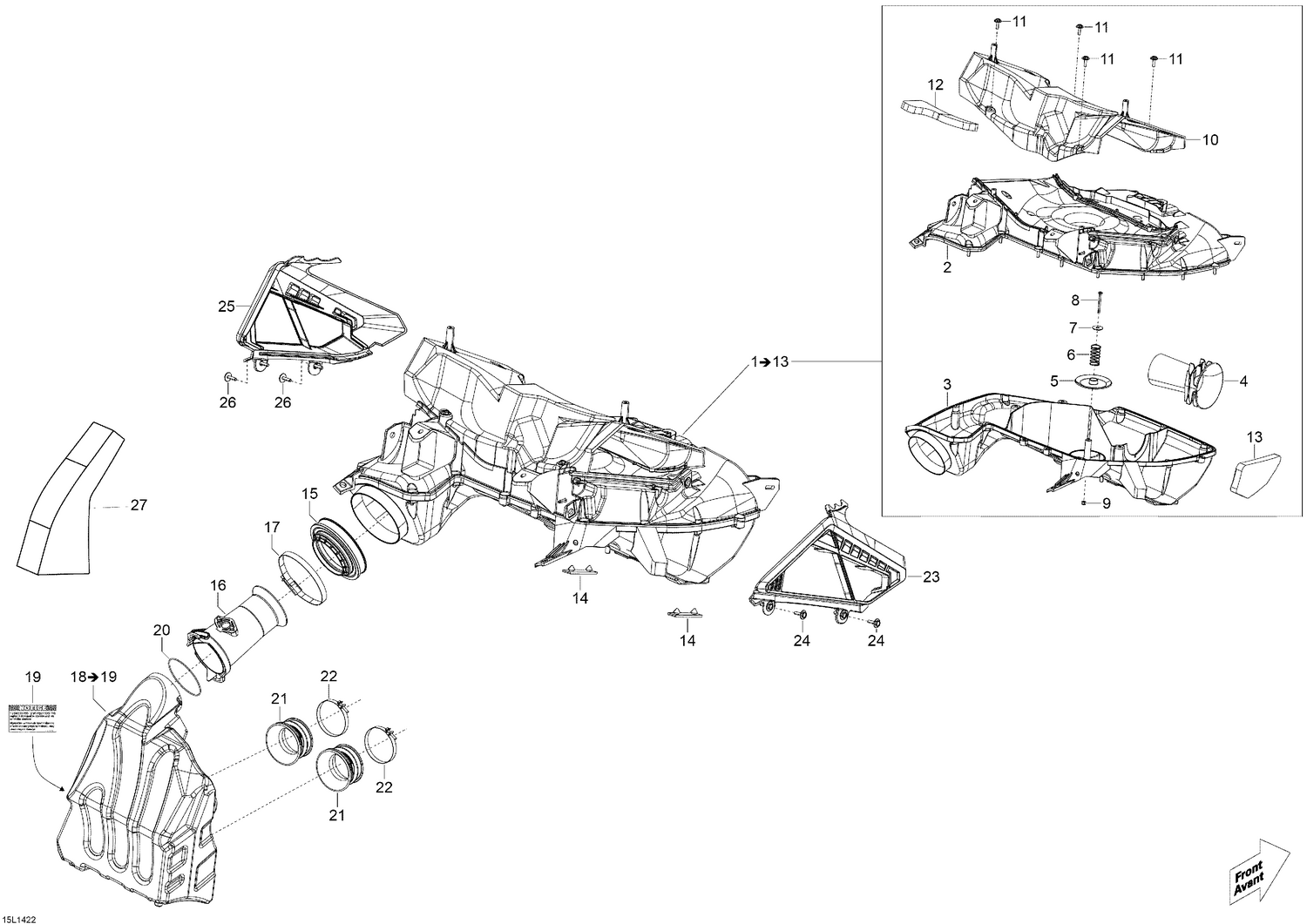

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Shell Upper |
| 3 |
Not |
Available As Spare Part - Shell Lower |
| 4 |
Not |
Available As Spare Part - Front Baffle |
| 5 |
Not |
Available As Spare Part - Check Valve |
| 6 |
Not |
Available As Spare Part - Spring |
| 7 |
224060201 |
Flat Washer |
| 8 |
205444086 |
Socket HD Screw M4 x 40 |
| 9 |
232541414 |
Elastic Stop Nut M4 |
| 10 |
Not |
Available As Spare Part - Air Duct |
| 11 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
| 12 |
Not |
Available As Spare Part - Foam |
| 13 |
Not |
Available As Spare Part - Foam |
| 14 |
508000744 |
Stopper |
| 15 |
508000567 |
Intake Adaptor |
| 16 |
508000662 |
Flute |
| 17 |
514052924 |
Gear Clamp |
| 19 |
516005876 |
Instr. Label, Air Intake |
| 20 |
293300115 |
O-Ring |
| 21 |
508000721 |
INTAKE ADAPTER - Call your local BRP dealership |
| 22 |
508000346 |
Clamp |
| 23 |
508000730 |
Air Filter RH |
| 24 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
| 25 |
508000731 |
Air Filter LH |
| 26 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
