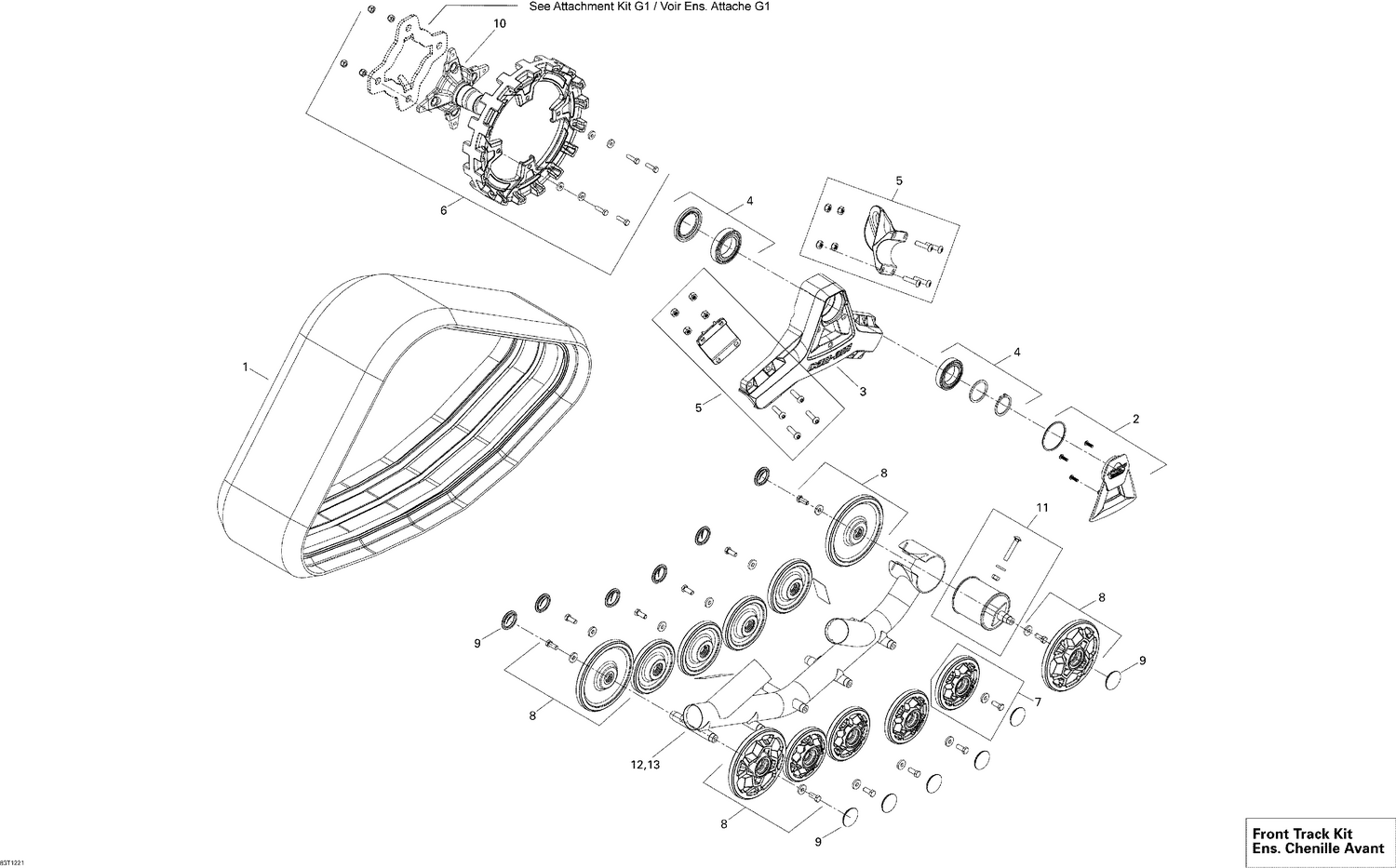

| Ref | Part Number | Description |
|---|
| 1 |
705402654 |
Track_360 F This part replaces 705401208. |
| 2 |
715002044 |
Cover Kit This part replaces 715001611. |
| 3 |
705401212 |
Aluminum Link |
| 4 |
715001602 |
Bearing Kit |
| 5 |
715005241 |
LH Front Clamp Kit This part replaces 715001603. |
| 5 |
715005242 |
RH Front Clamp Kit This part replaces 715001608. |
| 6 |
715001604 |
Sprocket Kit |
| 7 |
715001605 |
Roue De 144mm |
| 8 |
715001606 |
Roue De 190mm - Appelez votre concessionnaire BRP local |
| 9 |
570063600 |
Wheel Cap |
| 10 |
705402653 |
Main Axle - 360 This part replaces 705401210. |
| 11 |
715001607 |
TENSIONNER - Call your local BRP dealership |
| 12 |
705401213 |
RH FRONT FRAME - Call your local BRP dealership |
