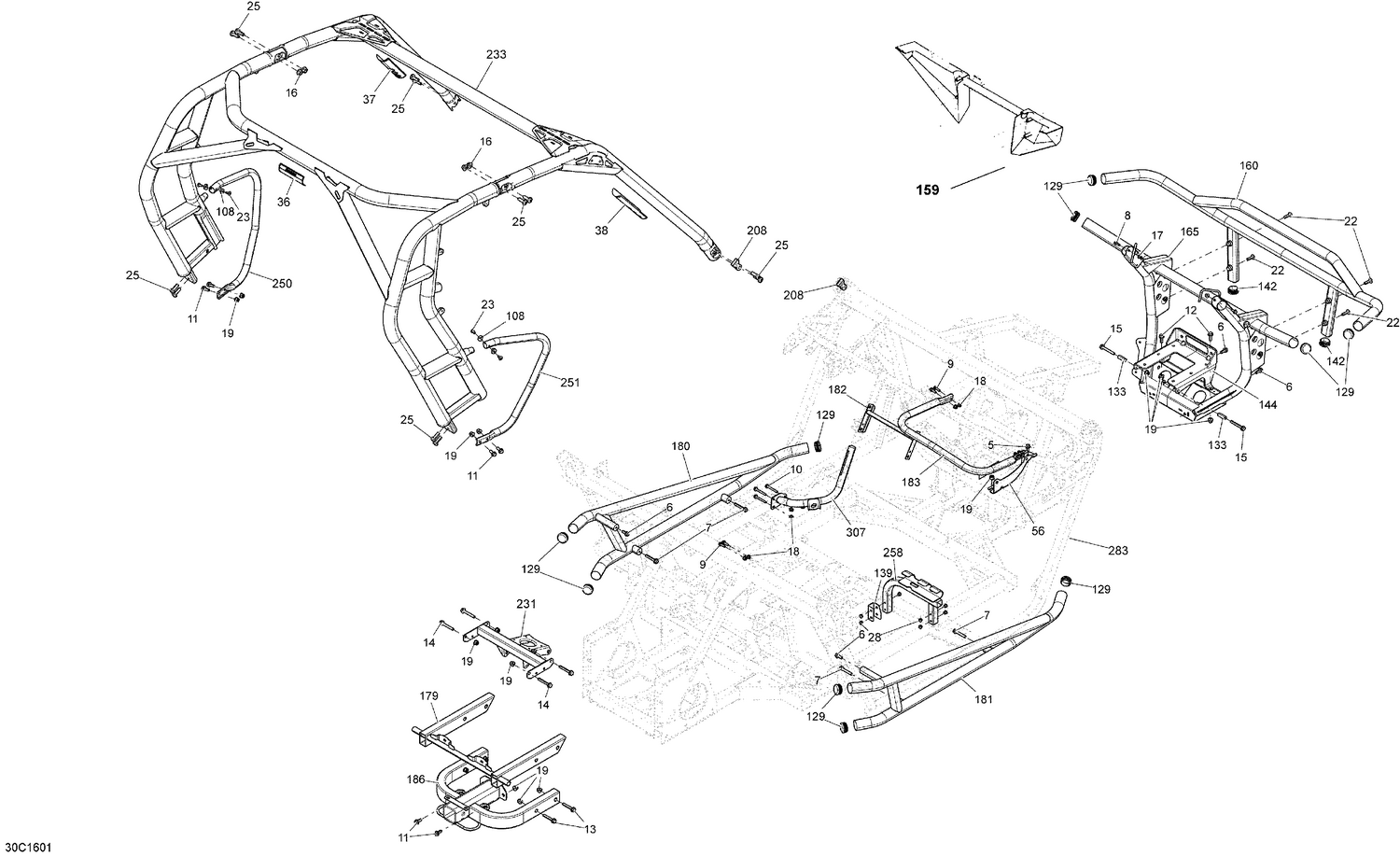

09- Frame
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 6 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 8 | 207661644 | Hex. Flange Screw M6 X 16 |
| 9 | 207662046 | Hex. Flange Screw M6 X 20 |
| 10 | 207665044 | Hex. Flange Screw M6 X 50 |
| 11 | 207682044 | Hex. Flange Screw M8 X 20 |
| 12 | 207662044 | Hex. Flange Screw M6 X 20 |
| 13 | 207685044 | Hex. Flange Screw M8 X 50 |
| 14 | 207685544 | Hex. Flange Screw M8 X 55 |
| 16 | 233101464 | Hex. Elastic Flange Nut , M10 X 1.5 |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 18 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 19 | 233281414 | Hex. Flange Elastic Nut M8 |
| 23 | 250000789 | Torx Truss M6X14 This part replaces 250000439. |
| 25 | 250000848 | Screw Pan M10 X 30 This part replaces 250000624. |
| 28 | 293150096 | Hemlock Rivet, 6.5 mm |
| 36 | 704903492 | Warning Label |
| 37 | 704903679 | Warning Label |
| 38 | 704903680 | Warning Label |
| 56 | 705201721 | Front Differential Support |
| 108 | 705202223 | Offset Washer |
| 129 | 705202455 | Cap |
| 139 | 705202602 | Seat Support |
| 165 | 705202995 | Black Front Bumper |
| 179 | 705203325 | BOX HOLDER - Call your local BRP dealership |
| 182 | 705203330 | Reinforcement Panel |
| 183 | 705203332 | Black Handle |
| 186 | 715001251 | TRAILER HITCH ASS'Y - Call your local BRP dealership |
| 208 | 705203415 | Binding Block |
| 231 | 705203538 | Differential Holder |
| 283 | 715004811 | Black, Frame This part replaces 715003090. |
