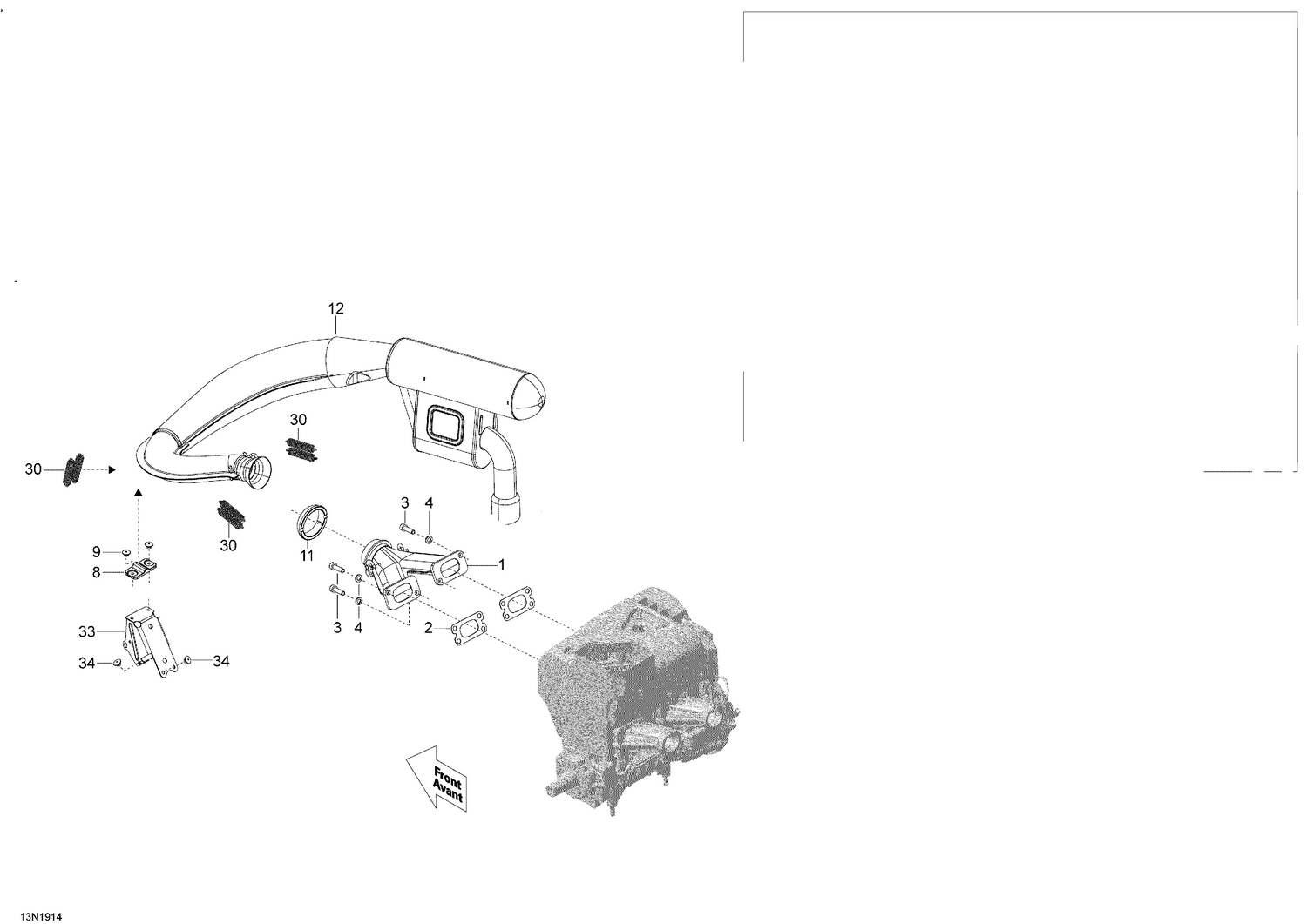

01- Exhaust - 550F
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420673065 | Exhaust Manifold |
| 2 | 420831849 | Gasket 1.0 mm |
| 3 | 205083044 | Socket Head Screw M8 X 30 |
| 4 | 250200111 | Washer |
| 8 | 514054617 | Bumper |
| 9 | 293150103 | Pop Rivet 3/16" |
| 11 | 514053644 | Exhaust Gasket |
| 12 | 514055126 | Calibrated Tube Ass'y |
| 29 | 514054606 | Upper Stopper |
| 30 | 415107100 | Spring |
| 31 | 514054522 | Spring Bracket This part replaces 514054391. |
| 32 | 390402200 | Pop Rivet 3/16" |
| 33 | 514054767 | Exhaust Muffler Support |
