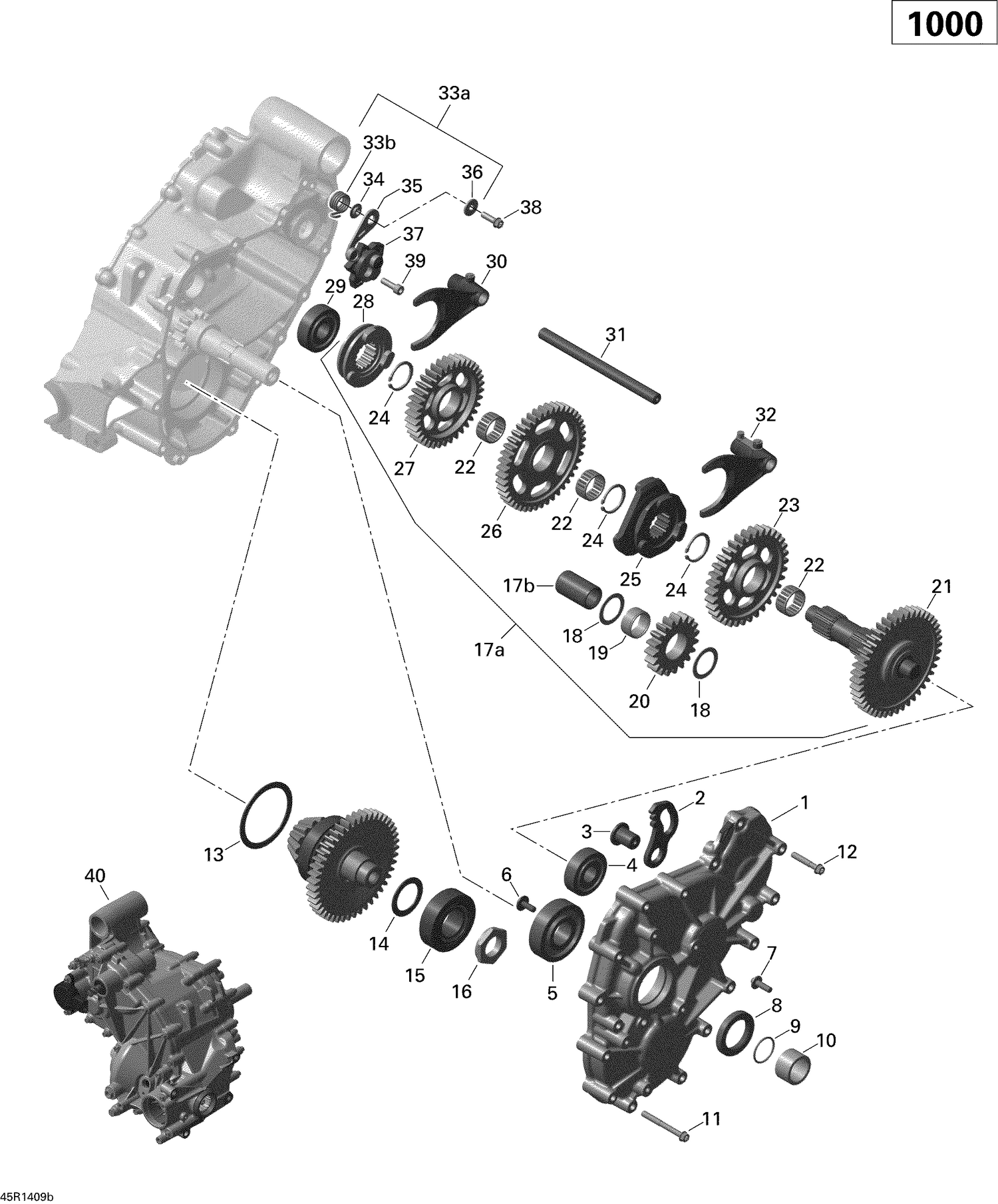

| Ref | Part Number | Description |
|---|
| 2 |
420257659 |
Parking Lock Lever |
| 3 |
420647123 |
Collar Sleeve This part replaces 420647122. |
| 4 |
420932816 |
Ball Bearing This part replaces 420932815. |
| 5 |
420932822 |
Ball Bearing This part replaces 420932825. |
| 6 |
420241522 |
Torx Screw M6 X 16 This part replaces 420241529. |
| 7 |
420441433 |
Distance Screw M6 This part replaces 420441431. |
| 8 |
420950089 |
Oil Seal This part replaces 420950087. |
| 9 |
420631612 |
O-Ring This part replaces 420631610. |
| 10 |
420247118 |
Distance Ring |
| 11 |
420440702 |
Torx Flange Screw M6 X 55 |
| 12 |
420440274 |
Torx Flange Screw M6 X 35 This part replaces 420440277. |
| 17b |
Not |
Available As Spare Part - Intermediate Gear Shaft |
| 18 |
420427011 |
Thrust Washer This part replaces 420944479. |
| 19 |
420932930 |
Needle Bearing |
| 20 |
Not |
Available As Spare Part - Intermediate Gear, 19 Teeth |
| 21 |
Not |
Available As Spare Part - Main Shaft |
| 22 |
420632070 |
Needle Bearing |
| 23 |
420434873 |
Gear Pinion, 34 Teeth |
| 24 |
420845772 |
Retaining Ring This part replaces 420845771. |
| 25 |
420257954 |
Shifting Sleeve This part replaces 420257951. |
| 26 |
420434861 |
Gear Pinion, 44 Teeth |
| 27 |
420434855 |
Gear Pinion, 37 Teeth This part replaces 420434853. |
| 28 |
420257945 |
Shifting Sleeve This part replaces 420257942. |
| 29 |
420932816 |
Ball Bearing This part replaces 420932815. |
| 30 |
420657365 |
Shift Fork This part replaces 420257628. |
| 31 |
420258394 |
Pivot This part replaces 420258386. |
| 32 |
420657355 |
Shift Fork Ass'y This part replaces 420257618. |
| 33b |
Not |
Available As Spare Part - Index Spring |
| 34 |
Not |
Available As Spare Part - Step Ring |
| 35 |
Not |
Available As Spare Part - Index Lever |
| 36 |
Not |
Available As Spare Part - Washer |
| 37 |
Not |
Available As Spare Part - Index Washer |
| 38 |
420440207 |
Torx Flange Screw M6 X 20 |
| 39 |
420241939 |
Allen Screw M6 X 20 |
