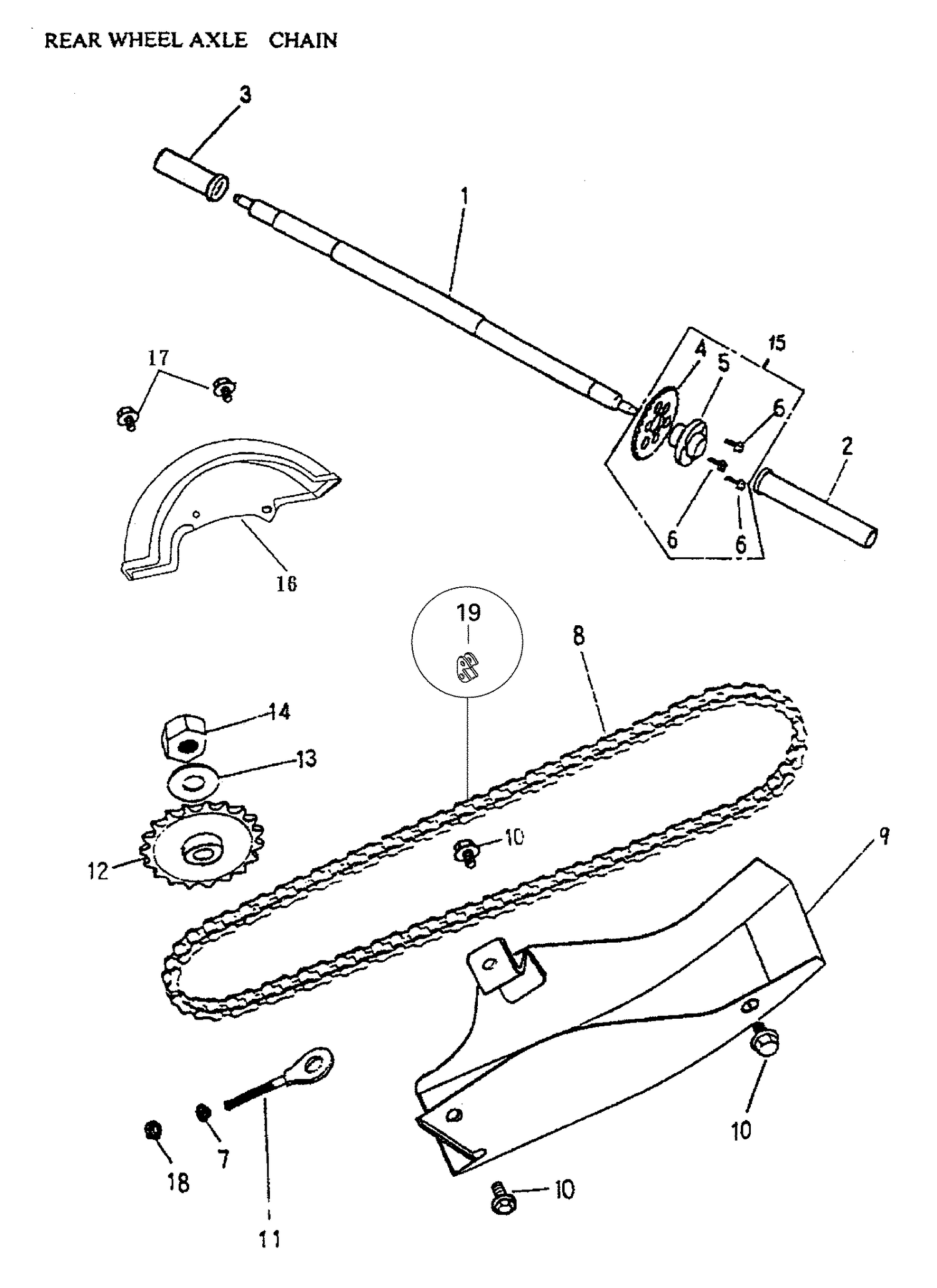

05- Rear Wheel Axle, Chain
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A42301145000 | REAR WHEEL AXLE - Call your local BRP dealership |
| 2 | A42620145001 | RIGHT SPACER COLLAR - Call your local BRP dealership |
| 3 | A42622145001 | Left Spacer Collar |
| 4 | A4120114600B | Rear Sprocket, 42t |
| 5 | A42610145000 | Final Drive Flange |
| 6 | A960000802012 | Hex. Washer Face Bolt 8 X 20 |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8 | A4053014500B | Drive Chain |
| 9 | A40510145001 | Chain Protect Cover |
| 10 | A960000801212G | HEXAGONAL WASHER FACE BOLT M8X12 - Call your local BRP dealership |
| 11 | A40543145000 | Drive Chain Adjuster |
| 12 | A23801145000 | DRIVE SPROCKET ASSY. 19T - Call your local BRP dealership |
| 13 | A941011529030 | PLAIN WASHER - Call your local BRP dealership |
| 14 | A9035014000 | NYLON NUT M14 - Call your local BRP dealership |
| 15 | A4260014500A | Rear Sprocket Ass'y |
| 16 | A40511152000 | Rear Chain Cover |
| 18 | 233081416 | Hex. Flange Nut M8 This part replaces A9405008000. |
| 19 | A40532145000 | Connecting Chain Link |
