| Ref | Part Number | Description |
|---|
| 3 |
0315039 |
WASHER, Plate |
| 4 |
0583563 |
FLYWHEEL This part replaces 0580892. |
| 5 |
0582957 |
ARMATURE PLATE & POST This part replaces 0581432. |
| 6 |
0510397 |
SCREW |
| 7 |
0580971 |
COIL & LAMINATION |
| 9 |
0580148 |
BEAKER,Assy |
| 10 |
704909038 |
Emblem Logo BRP 20 MM UV |
| 12 |
0510278 |
SCREW |
| 13 |
0510208 |
BOW WASHER |
| 15 |
0510185 |
ECCENTRIC SCREW |
| 15 |
704909041 |
Emblem Logo BRP 68 MM UV |
| 16 |
0580321 |
CONDENSER |
| 18 |
0510194 |
SCREW |
| 19 |
. |
LEAD |
| 21 |
0510190 |
CLAMP |
| 23 |
0313536 |
CAM, Armature plate |
| 24 |
0321701 |
SCREW, Cam This part replaces 0304441. |
| 26 |
0580733 |
FIL, masse solénoïde |
| 27 |
0510391 |
BOW WAHSER,Eccentric scr. |
| 28 |
0510772 |
SLEEVE |
| 29 |
0320432 |
GASKET, Armature plate |
| 30 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 30 |
704909040 |
Emblem BRP Logo 48 MM UV |
| 31 |
0306468 |
SCREW, Armature plate |
| 32 |
0307595 |
SPRING ,Armature plate |
| 33 |
0313381 |
LINER, Cyl. to armature plate |

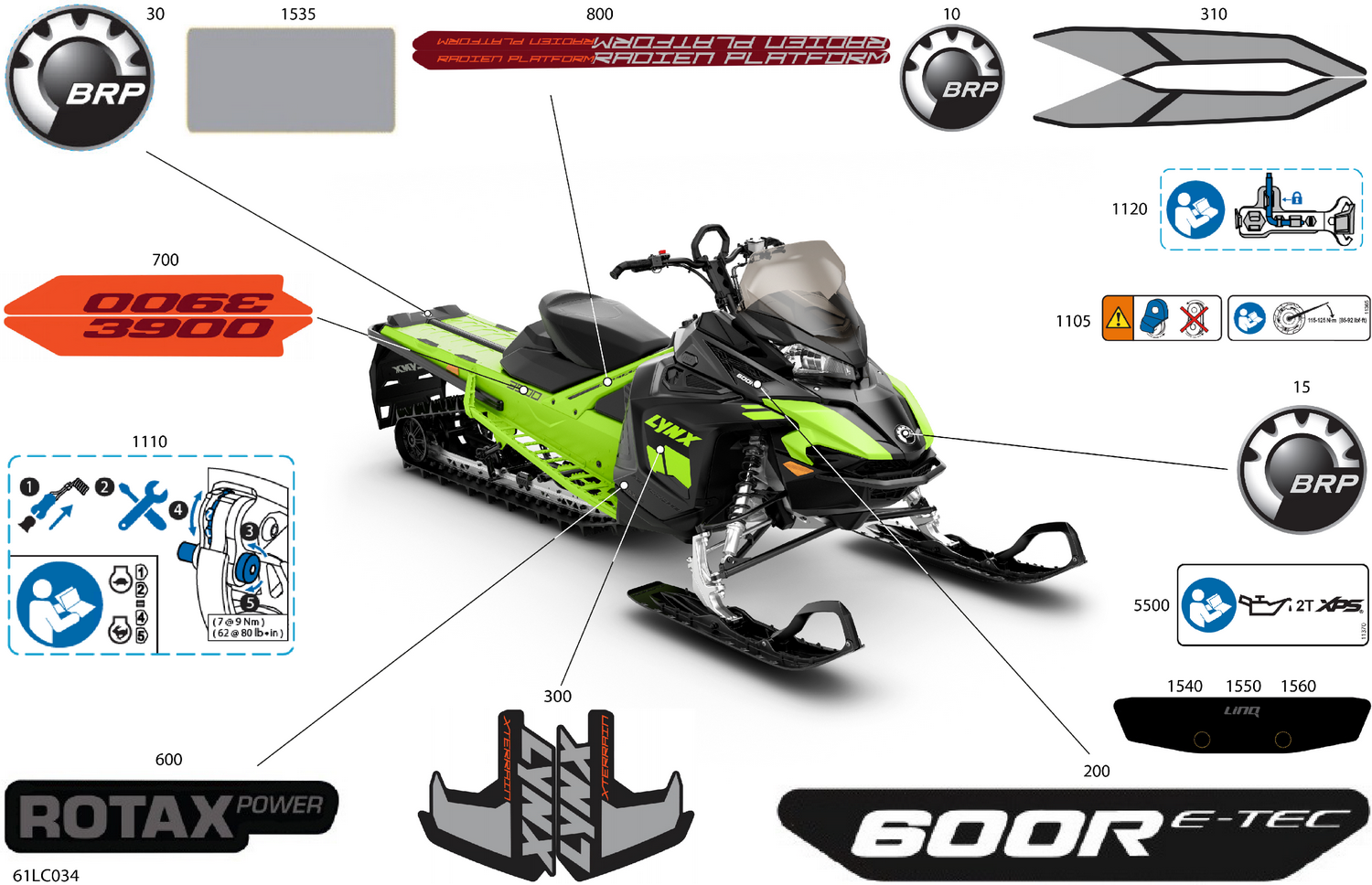

| 200 |
516009561 |
Upper Side Panel Decal "600R E-TEC" |
| 300 |
516010629 |
LH/RH Side Panel Decal "Lynx X Terrain" |
| 310 |
516010970 |
LH/RH Side Panel Decal |
| 600 |
516008760 |
Decal "Rotax Power" |
| 700 |
516010633 |
LH/RH Tunnel Decal |
| 800 |
516010635 |
LH/RH Platform Decal |
| 1105 |
516011365 |
Clutch Instruction Label |
| 1110 |
516011437 |
Ramp Instruction Label |
| 1120 |
516011629 |
Tool Instruction Label |
| 1535 |
516009954 |
Protective Decal |
| 1540 |
516011681 |
Decal Q-Link |
| 1550 |
516011681 |
Decal Q-Link |
| 1560 |
516011681 |
Decal Q-Link |
| 0580142 |
0580142 |
LEAD ASST.,H.T. |
| 0581433 |
0581433 |
ARMATURE PLATE ASSY |
