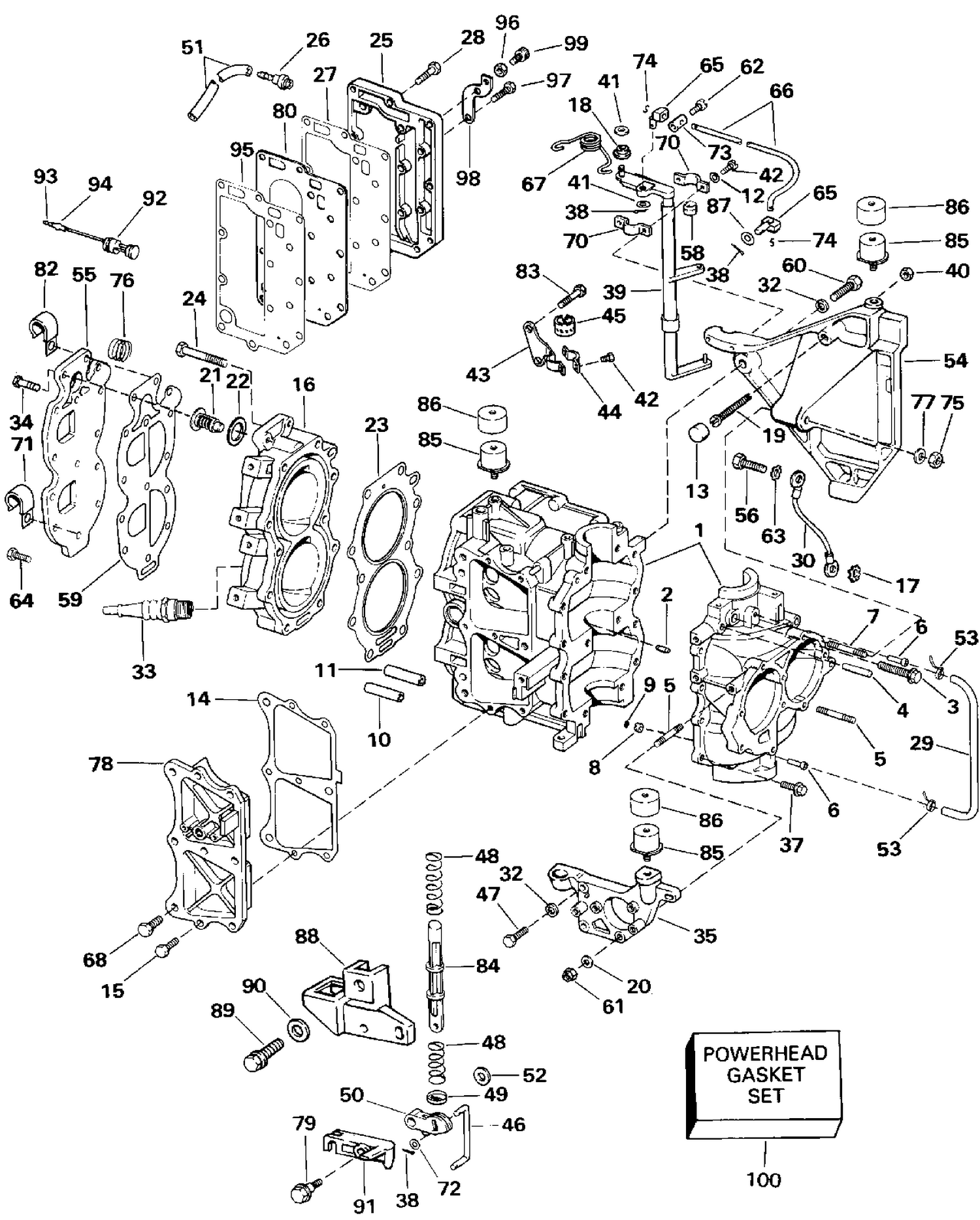

| Ref | Part Number | Description |
|---|
| 1 |
0435942 |
CYL. & C'CASE ASSY. This part replaces 0433533. |
| 13 |
0314416 |
BUMBER, Advance screw |
| 14 |
0319661 |
GASKET, By-pass cover |
| 15 |
0300646 |
VIS, ancrage |
| 16 |
0335635 |
CYL. HEAD ASSY. |
| 18 |
0307841 |
BUSHING, Control lever |
| 19 |
0335762 |
SCREW, Spark adj |
| 20 |
0329241 |
RONDELLE |
| 21 |
5005440 |
THERMOSTAT This part replaces 0393659. |
| 22 |
0329319 |
GASKET, Thermostat |
| 23 |
0329419 |
GASKET, Cylinder head |
| 24 |
0305027 |
SCREW |
| 25 |
0391465 |
EXHAUST COVER, Outer |
| 27 |
0324323 |
GASKET, Exh. cover, outer to inner |
| 28 |
0306418 |
VIS, ancrage |
| 29 |
HOSE, |
Mfld. to crankcase, 12 in. (305mm) |
| 30 |
0583051 |
GROUND LEAD ASSY. |
| 33 |
0432424 |
SPARK PLUG , QL16V |
| 33 |
0502894 |
SPARK PLUG, Champion, L16V This part replaces 0433627. |
| 35 |
0325340 |
BRACKET, Starboard |
| 37 |
0314979 |
SCREW, Cylinder to c'case |
| 39 |
0438075 |
CONTROL LEVER & PIN This part replaces 0398026. |
| 41 |
0305831 |
SHIM |
| 42 |
0331036 |
VIS, attache de palier |
| 43 |
0331448 |
BRACKET, Control lever |
| 44 |
0331919 |
BEARING CLAMP, Leaver, lower |
| 45 |
0331918 |
BEARING, Lever lower |
| 46 |
0335326 |
LINK, Actuator cam |
| 47 |
0303398 |
VIS, support |
| 48 |
0325584 |
SPRING, Neutral detent |
| 49 |
0325586 |
RETAINER, Spring |
| 50 |
0396163 |
LEVER & ROLLER ASSY |
| 51 |
HOSE, |
Ovbd. pump ind., 16 in. (406mm) |
| 52 |
0120590 |
WASHER LEVER ARM, Pulley |
| 53 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 54 |
0351035 |
BRACKET, Port This part replaces 0320374. |
| 55 |
0327673 |
COVER, Cylinder head |
| 58 |
0320524 |
BEARING, Control lever |
| 59 |
0327674 |
GASKEET, Water cover |
| 60 |
0303398 |
VIS, support |
| 62 |
0304221 |
SCEW,Collar to cable |
| 64 |
0300646 |
VIS, ancrage |
| 65 |
0320786 |
PIVOT PIN |
| 66 |
0320156 |
ROD, Throttle control |
| 67 |
0316368 |
SPRING |
| 68 |
0332203 |
SCREW, By-pass cover |
| 70 |
0320523 |
BEARING CLAMP |
| 71 |
0330151 |
CLAMP, Harness to oil tank boss |
| 73 |
0304222 |
COLLAR |
| 74 |
0307565 |
PIN |
| 76 |
0328051 |
SPRING, Pressure release |
| 77 |
0329241 |
RONDELLE |
| 78 |
0439912 |
BYPASS COVER Assy This part replaces 0433567. |
| 79 |
0327443 |
SCREW, Starter lockout |
| 80 |
0326263 |
EXHAUST COVER, Inner |
| 82 |
0330151 |
CLAMP, Harness to oil tank boss |
| 83 |
0303398 |
VIS, support |
| 84 |
0325332 |
PLUNGER |
| 85 |
0332610 |
RUBBER Mount, Powerpack |
| 86 |
0333071 |
CUP, Starter housing to mounts |
| 87 |
0551953 |
WASHER |
| 88 |
0325326 |
BRACKET, Safety sw. & cable |
| 89 |
0122147 |
VIS, connecteur |
| 91 |
0325589 |
LEVER, Start lockout |
| 92 |
0584590 |
TEMPERATURE SWITCH This part replaces 0583815. |
| 95 |
0326264 |
GASKET, Exh. cover inner to c'case |
| 97 |
0303398 |
VIS, support |
| 98 |
0331446 |
SUPPORT DE BUTÉE DE RALENTI |
| 99 |
0308038 |
VIS, butée de ralenti |
