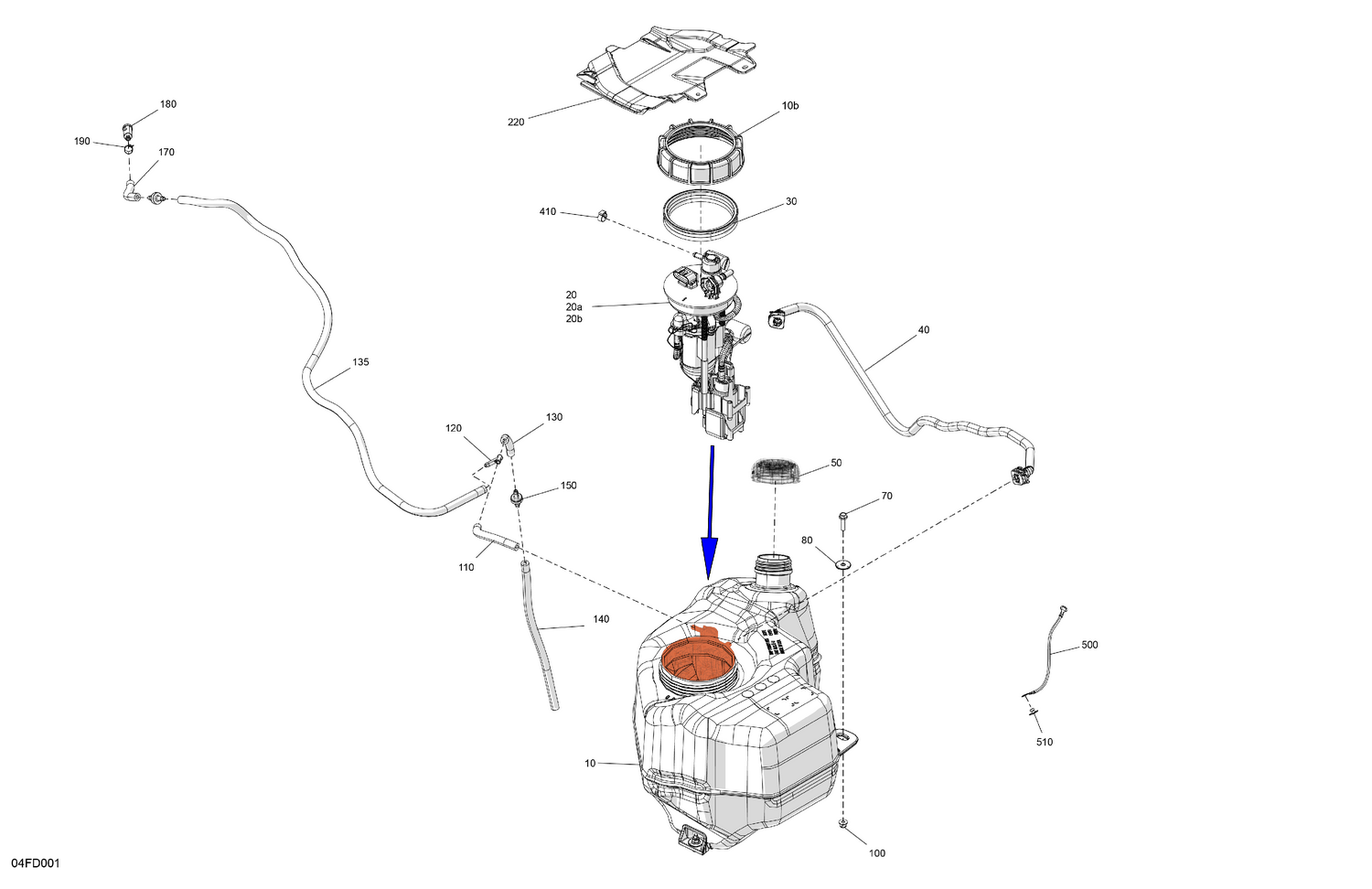

02- Engine - Fuel
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 250100062 | Special Nut M130 |
| 20a | 709001390 | Fuel Pre-Filter |
| 20b | 709001695 | Fuel Level Sensor This part replaces 709001391. |
| 30 | 293250173 | Gasket |
| 40 | 709001076 | Fuel Tank Hose |
| 50 | 709000868 | Fuel Cap |
| 70 | 207662554 | Hex. Flange Screw M6 X 25 |
| 80 | 709001343 | Shouldered Bushing |
| 100 | 233261466 | Hex. Flange Elastic Nut M6 |
| 110 | 219704534 | Hose 6.35MM ID |
| 120 | 293710059 | Y-Fitting |
| 130 | 219704534 | Hose 6.35MM ID |
| 135 | 219704534 | Hose 6.35MM ID |
| 140 | 219704534 | Hose 6.35MM ID |
| 150 | 275500398 | Check Valve |
| 170 | 219704534 | Hose 6.35MM ID |
| 180 | 709001120 | Filter |
| 190 | 414415200 | Spring Clamp |
| 220 | 709001104 | Panel |
| 410 | 293650046 | Oetiker Clamp |
| 500 | 278003272 | Ground Wire |
