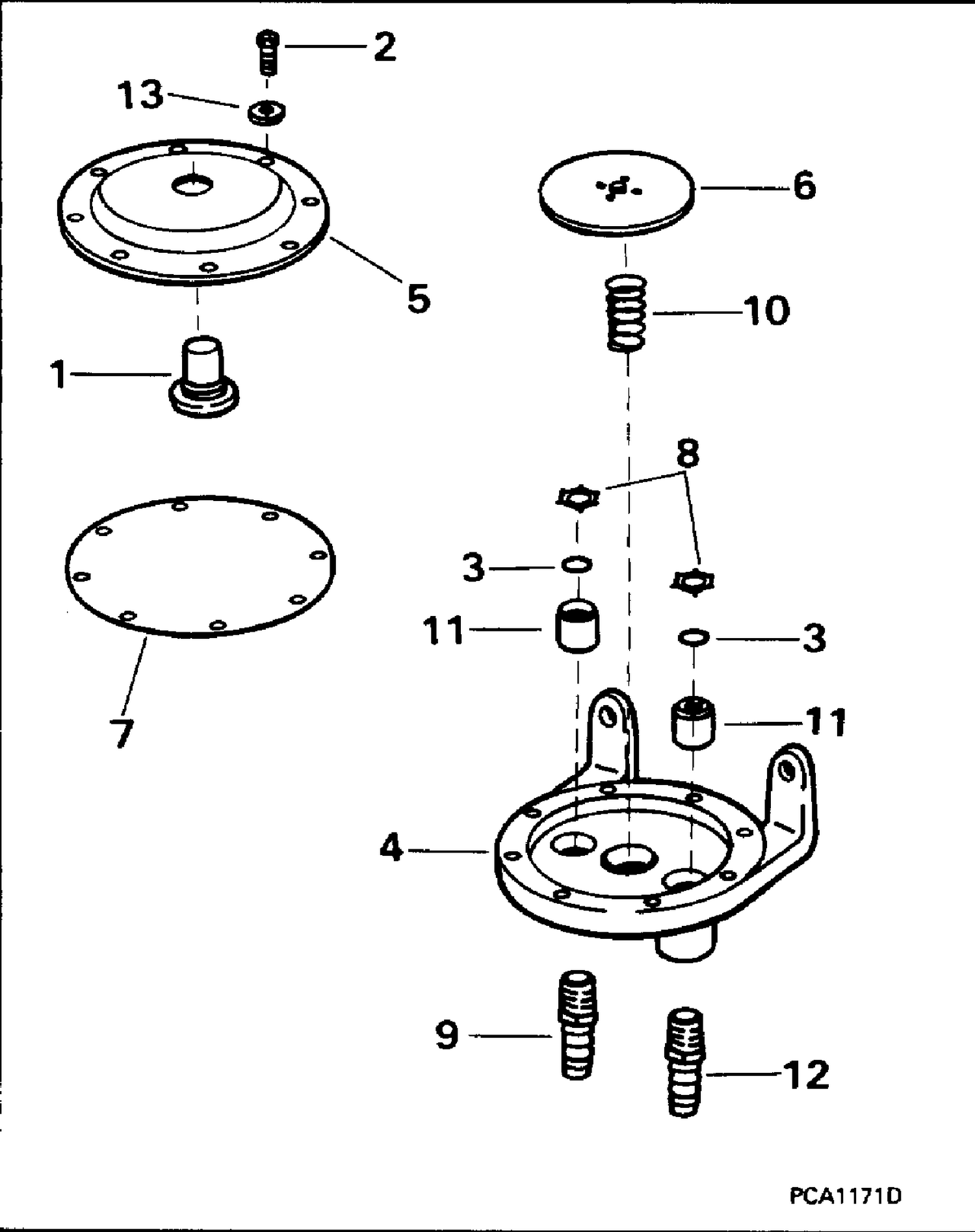

PRIMER PUMP ASSY.
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 0338399 | O-RING, Check valve |
| 4 | 0341664 | BODY, Primer |
| 5 | 0341665 | COVER |
| 6 | 0341666 | SUPPORT, Diaphragm |
| 7 | 0437700 | MANUAL FUEL PRIMER KIT This part replaces 0341678. |
| 8 | 0341737 | RING, Retaining, check valve |
| 9 | 0341842 | FITTING, Inlet |
| 10 | 0341978 | SPRING, Primer button |
| 11 | 0437542 | VALVE, Check, inlet & outlet |
| 12 | 0341842 | FITTING, Inlet |
| 0437700 | 0437700 | MANUAL FUEL PRIMER KIT |
