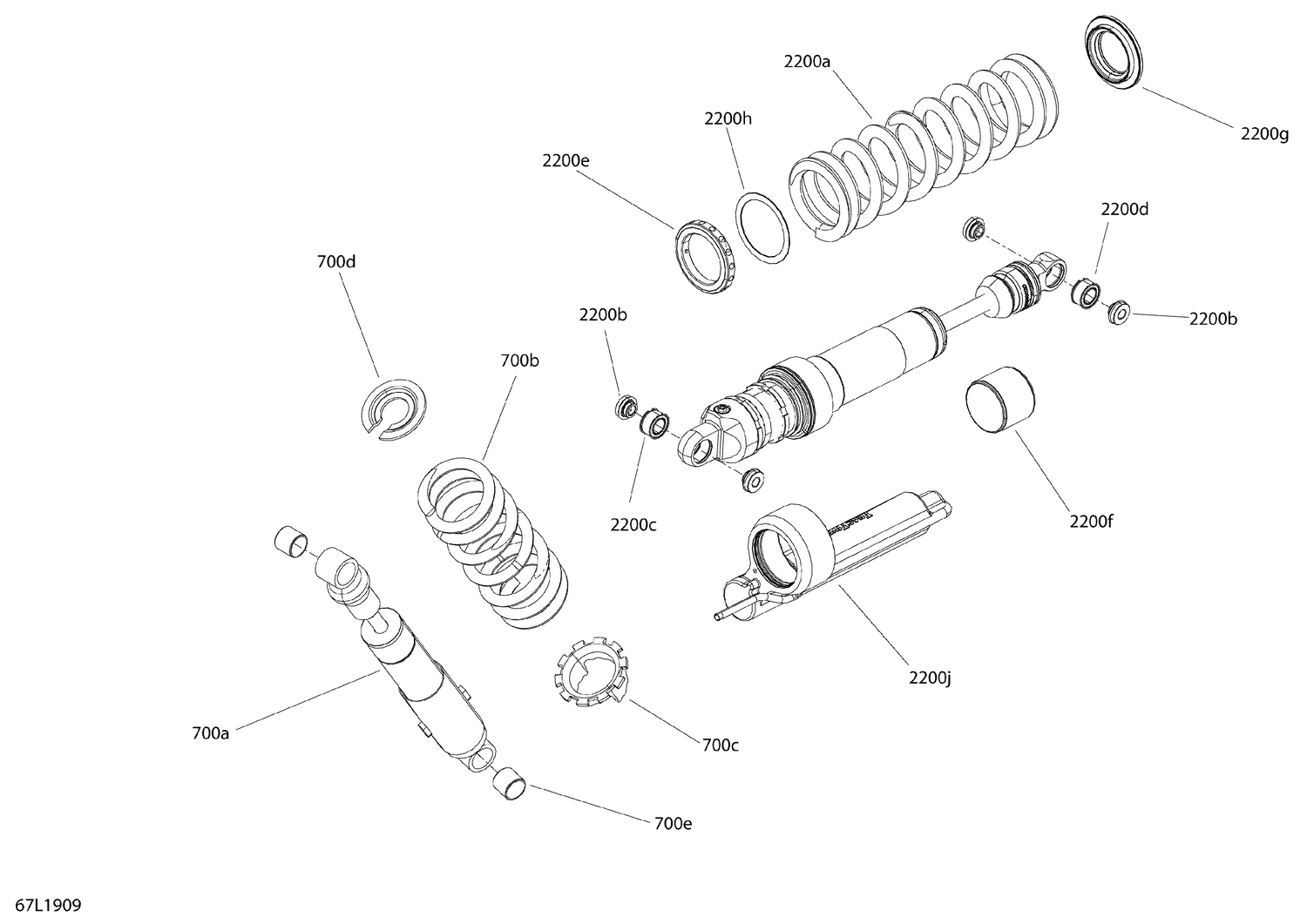

08- Rear Shocks - GT Comfort
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 700a | 503193521 | Shock |
| 700b | 503193279 | Spring (255mm - 30N/mm) |
| 700c | 230078 | Adjusting Cam |
| 700d | 230076 | Fjäder stoppare Främ dä,päre |
| 700e | 31094 | Cushion |
| 2200a | 619300178 | Rear Shock Spring 65 Nm. |
| 2200b | 619300183 | Center Shock Upper Bearing Bushing |
| 2200c | 619300186 | Front Shock Upper Bearing |
| 2200d | 619300187 | Rear Shock Lower Bearing |
| 2200e | 619300188 | Upper Spring Retainer Kit |
| 2200f | 619300189 | Rubber Protection Sleeve |
| 2200g | 619300190 | Spring Retainer Set, Lower |
| 2200h | 619300191 | Retainer Spacer, Spring |
