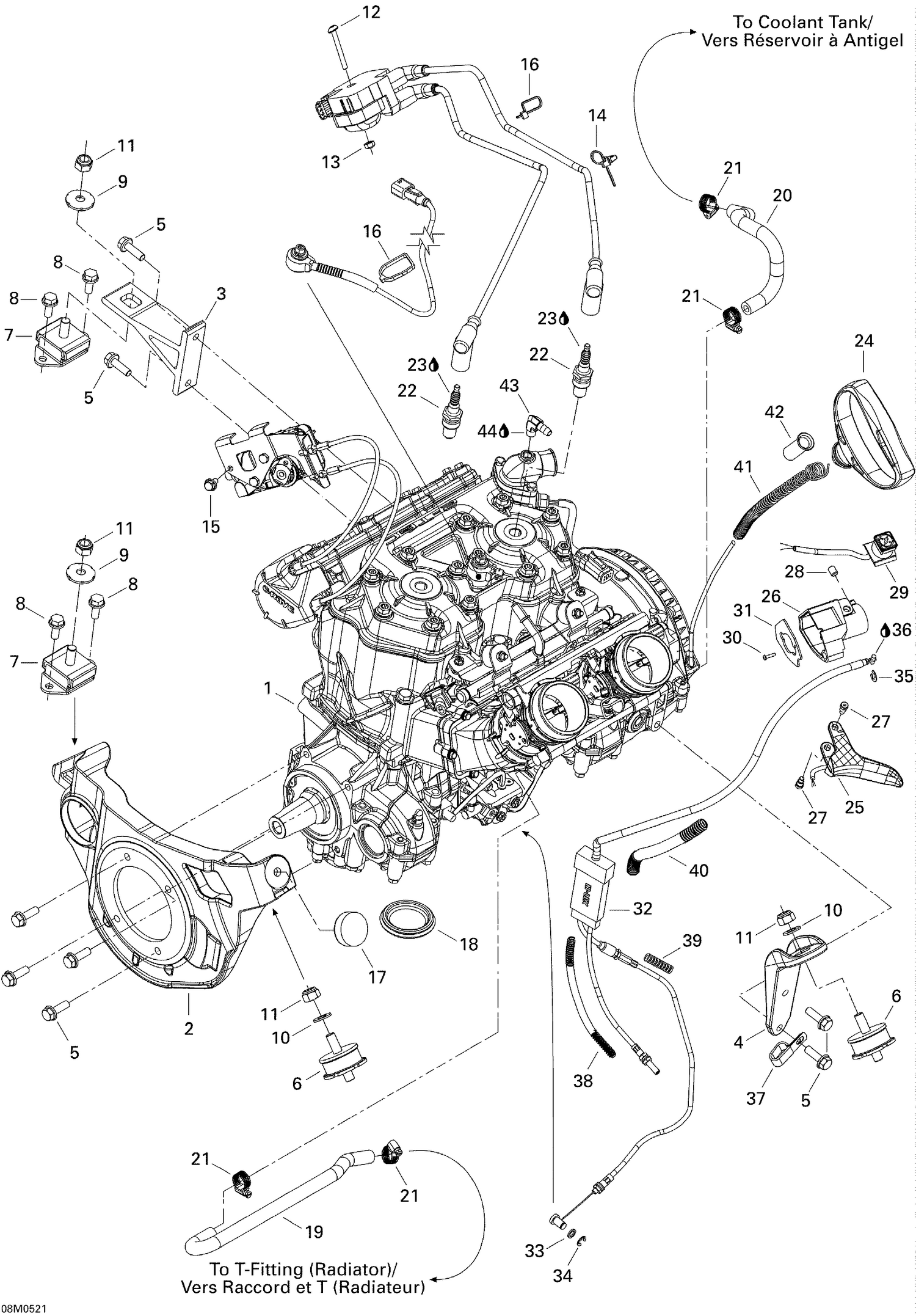

| Ref | Part Number | Description |
|---|
| 1 |
400101116 |
Engine 995 SDI Rer |
| 2 |
512059792 |
ENGINE SUPPORT, PTO - Call your local BRP dealership |
| 3 |
512059894 |
FRONT ENGINE SUPPORT, MAG - Call your local BRP dealership |
| 4 |
512059794 |
REAR ENGINE SUPPORT, MAG - Call your local BRP dealership |
| 5 |
207582544 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 6 |
512059960 |
RUBBER MOUNT - Call your local BRP dealership |
| 7 |
512060564 |
Rubber Mount This part replaces 512059936. |
| 8 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 9 |
512056700 |
Lock Washer |
| 10 |
234001410 |
Flat Washer 10 mm |
| 11 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 12 |
250000215 |
Torx Screw M6 X 45 |
| 13 |
232561414 |
Elastic Stop Nut M6 |
| 14 |
515175220 |
Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 15 |
207661244 |
Hex. Flange Screw M6 X 12 |
| 16 |
414115200 |
Tie-Rap 180 mm |
| 17 |
512060000 |
Stopper |
| 18 |
570045101 |
BOTTOM PAN CAP - Call your local BRP dealership |
| 19 |
512060012 |
FORMED HOSE, INLET THROTTLE BODY - Call your local BRP dealership |
| 20 |
512059935 |
FORMED HOSE, OUTLET THROTTLE BODY - Call your local BRP dealership |
| 21 |
293650170 |
Tridon Gear Clamp |
| 22 |
512060029 |
Spark Plug NGK BR8ECS |
| 23 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 24 |
572084400 |
Starter Grip |
| 25 |
512060484 |
Throttle Handle Ass'y This part replaces 512059891. |
| 26 |
512060603 |
Throttle Housing This part replaces 512059295. |
| 27 |
732601143 |
Flange Screw |
| 28 |
414440800 |
Socket Set Screw M8 X 10 |
| 30 |
250000022 |
SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership |
| 31 |
512060390 |
Plate This part replaces 512059507. |
| 32 |
512060009 |
Throttle Cable |
| 33 |
234081100 |
Flat Washer 8 mm, Nylon |
| 34 |
414753500 |
Circlip |
| 35 |
414274500 |
Circlip |
| 36 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 37 |
515175980 |
OPEN CLAMP - Call your local BRP dealership |
| 38 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 39 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 40 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 41 |
512059964 |
ROPE GUIDE - Call your local BRP dealership |
| 42 |
512059536 |
TUBE - Call your local BRP dealership |
| 43 |
293700045 |
ELBOW FITTING 90 - Call your local BRP dealership |
