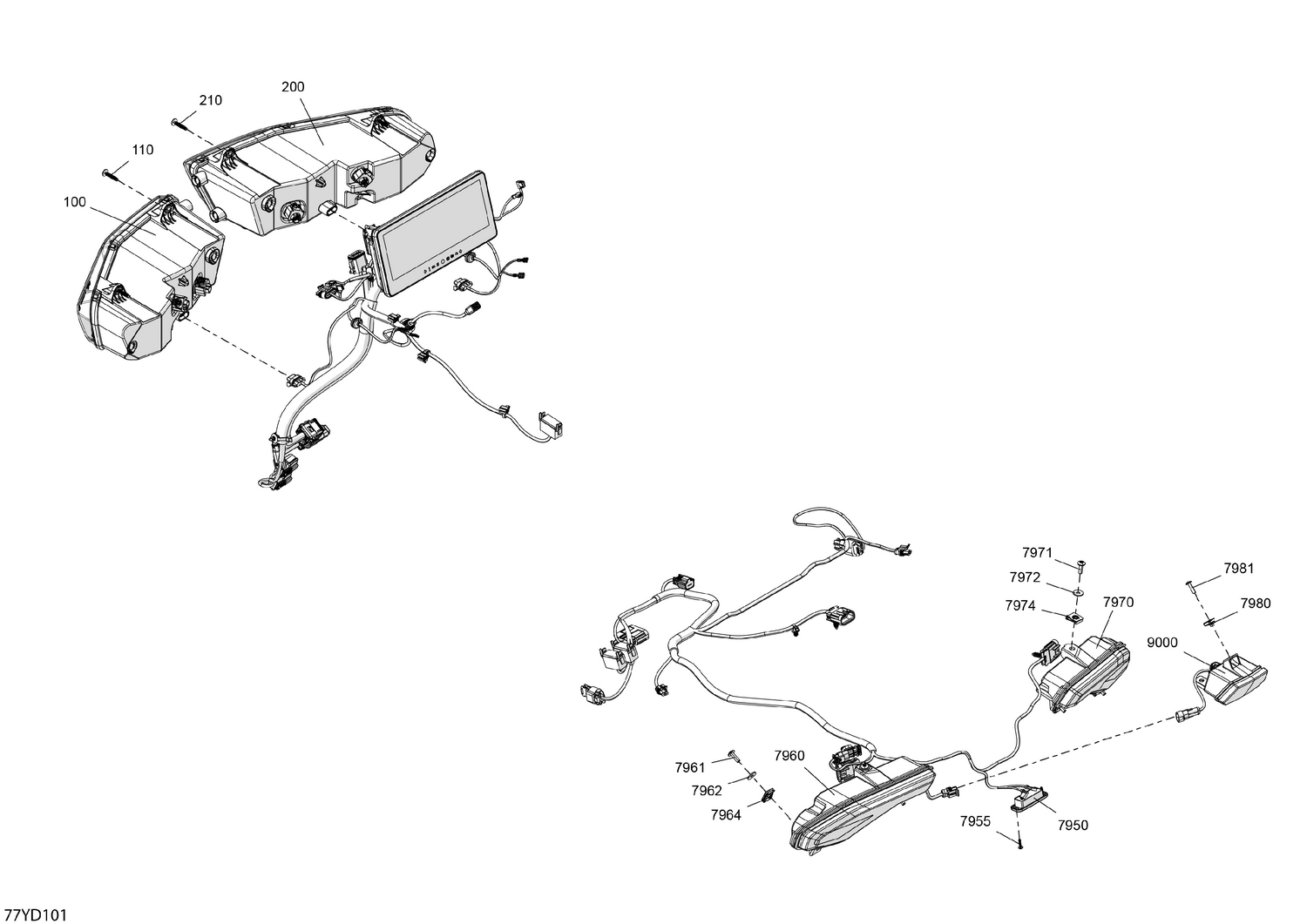

08- Electric - Vehicle Lighting
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 710006578 | LH Headlight |
| 110 | 250000949 | Screw PT K60 X 30 |
| 200 | 710006579 | RH Headlight |
| 210 | 250000949 | Screw PT K60 X 30 |
| 7950 | 710005501 | License Light |
| 7955 | 250001123 | Hex. Flange Screw K40 X 16 |
| 7960 | 710007002 | LH Tail Light |
| 7961 | 250000722 | Torx Screw M6 X 20 |
| 7962 | 250200164 | Flat washer M6 |
| 7964 | 250100208 | Panel Nut M6 X 1.0 |
| 7970 | 710007004 | RH Tail Light |
| 7971 | 250000722 | Torx Screw M6 X 20 |
| 7972 | 250200164 | Flat washer M6 |
| 7974 | 250100208 | Panel Nut M6 X 1.0 |
| 7980 | 250000958 | Panel Nut M5 X 0.8 |
| 7981 | 250000715 | Torx Truss Screw M5 X 20 |
