| Ref | Part Number | Description |
|---|
| 1 |
0438921 |

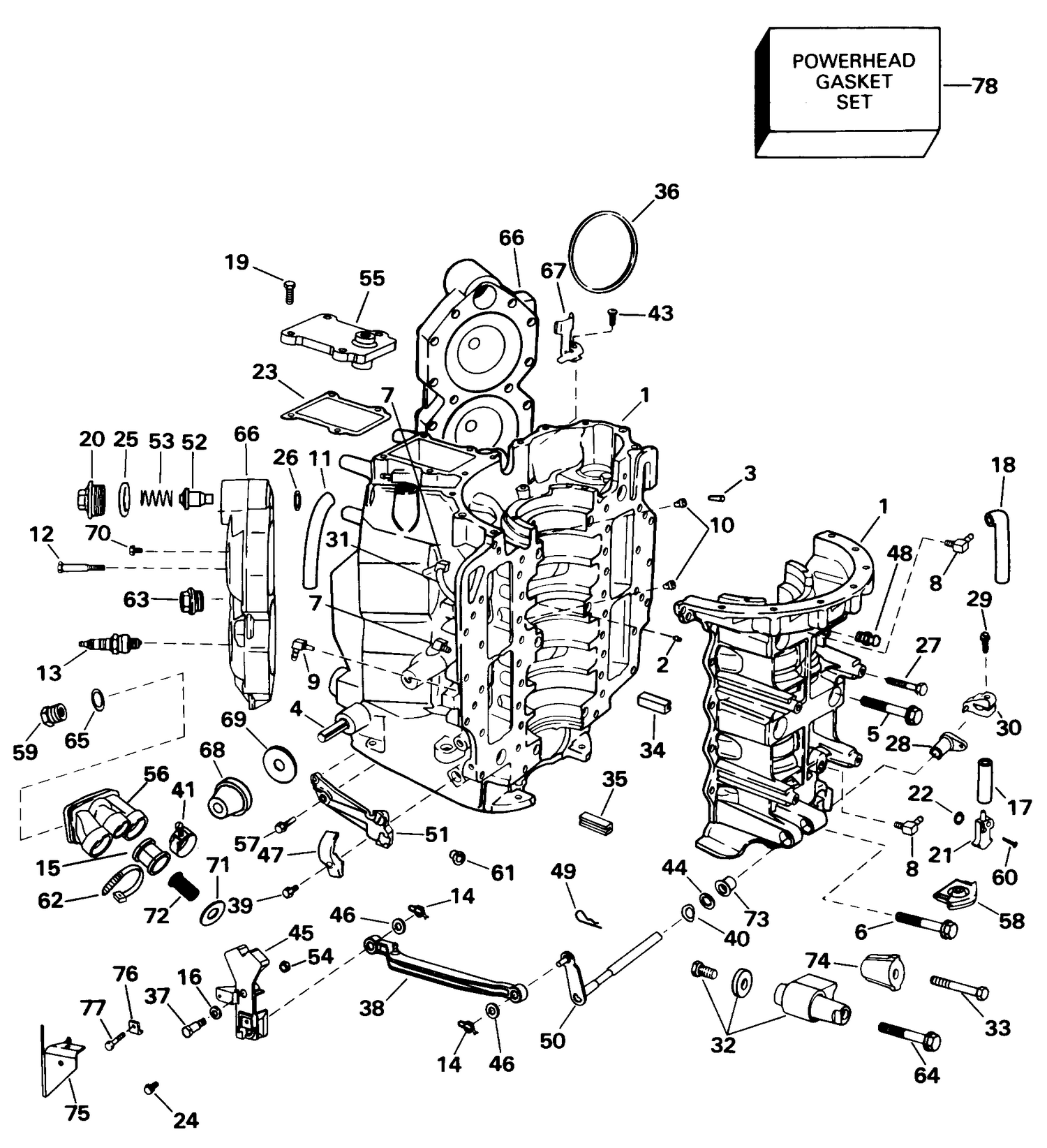

CYLINDER & C'CASE ASSY. |
| 11 |
HOSE, |
Vent, 13 in. (330mm) |
| 13 |
0437929 |
BOUGIE, Champion, QL78YC |
| 15 |
0342916 |
HOSE, Exhaust grommet to block |
| 17 |
HOSE, |
Lower main drain to stbd. bal. tube, 15 in. (381mm) |
| 18 |
HOSE, |
Upper main to c'case vent nipple, 9 1/2 in. (242mm) |
| 20 |
0338632 |
Thermostat Cover |
| 21 |
0340767 |
FITTING, Lower drain |
| 22 |
0324677 |
JOINT TORIQUE, mamelon, vidange inférieure |
| 23 |
0350357 |
GASKET, BASE PLATE This part replaces 0342291. |
| 24 |
0909533 |
SCREW, Pressure relief valve cover |
| 25 |
0331188 |
O-Ring |
| 28 |
0330935 |
BAGUE, retenue de la tige du levier de sens de marche |
| 29 |
0335020 |
SCREW, Bracket to block |
| 30 |
0433817 |
ENSEMBLE LEVIER, tige de commande de sens de marche |
| 31 |
HOSE, |
Drain system |
| 33 |
0330263 |
SCREW, Mounting, 3/8 in. X 3.50 in. |
| 37 |
0330933 |
SCREW, reverse lock link |
| 38 |
0343118 |
LIAISON, levier vers bras de commande de sens de marche |
| 40 |
0306012 |
BOW WASHER |
| 41 |
0336136 |
CLAMP |
| 43 |
0316195 |
SCREW |
| 44 |
0202026 |
LOCK WASHER, Stud |
| 45 |
0436902 |
LEVIER DE SENS DE MARCHE |
| 47 |
0349060 |
CACHE, tourillon This part replaces 0335528. |
| 50 |
5000470 |
SHIFT SHAFT & ARM Assy This part replaces 0436822. |
| 51 |
0349061 |
TOURILLON This part replaces 0340761. |
| 52 |
0435491 |
THERMOSTAT |
| 53 |
0338174 |
RESSORT, thermostat |
| 55 |
0342293 |
PLATE, Cover |
| 56 |
0437223 |
GROMMET & INSERT, Exhaust relief |
| 58 |
0335316 |
JOINT, tige de commande de sens de marche |
| 59 |
0436857 |
BOUCHON & GICLEUR, indicateur d'éjection |
| 61 |
0335253 |
BAGUE, bouton de starter |
| 62 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 63 |
0342923 |
COVER, Cylinder block |
| 65 |
0301967 |
O RING |
| 66 |
0342795 |
CYLINDER HEAD |
| 67 |
0337478 |
GUIDE, fils du stator |
| 68 |
0349557 |
MOUNT This part replaces 0328584. |
| 69 |
0349556 |
Washer This part replaces 0329749. |
| 71 |
0315189 |
GASKET, Oil indicator |
| 72 |
0341689 |
FILETR, Overboard |
| 73 |
0335521 |
BAGUE, levier de sens de marche vers bloc |
| 74 |
0360761 |
RETAINER, Upper mount This part replaces 0340418. |
| 76 |
0328456 |
CLAMP |
| 77 |
0328731 |
VIS, câble de verrouillage |
