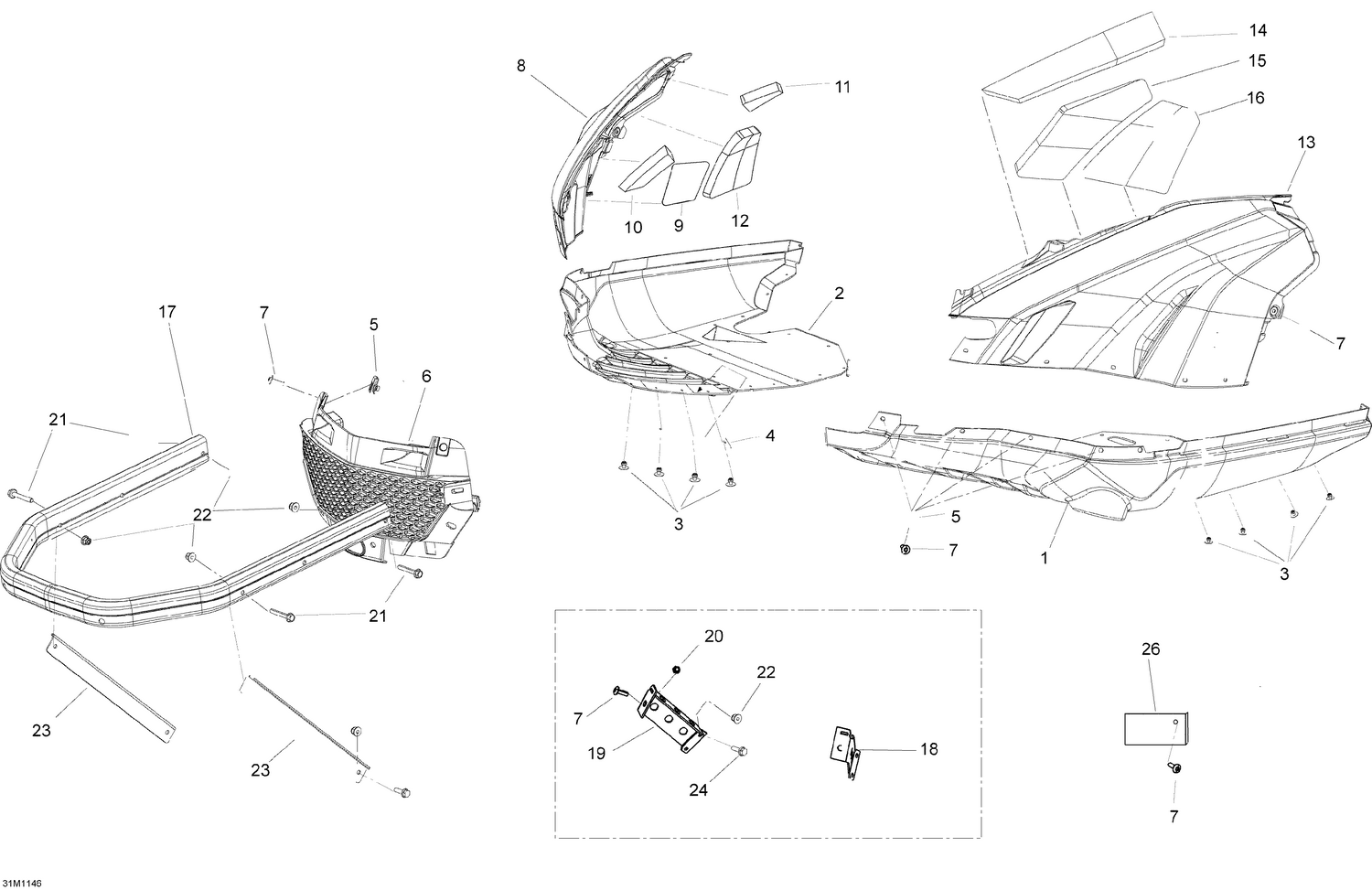

| Ref | Part Number | Description |
|---|
| 1 |
502007436 |
LH Lower Bottom Pan This part replaces 502007046. |
| 2 |
502006917 |
BLACK BOTTOM-PAN LOWER RH. - Call your local BRP dealership |
| 3 |
293150104 |
Pop Rivet 3/16" |
| 4 |
502007226 |
SUPPORT PLATE - Call your local BRP dealership |
| 5 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 6 |
502007139 |
FRONT GRILL - Call your local BRP dealership |
| 7 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 8 |
502008015 |
Deep Black, RH Bottom Pan This part replaces 502007202. |
| 9 |
502007133 |
Insulator |
| 10 |
502007009 |
Insulator |
| 11 |
502007008 |
INSULATOR - Call your local BRP dealership |
| 12 |
502007132 |
Insulator |
| 13 |
502008017 |
Deep Black, LH Bottom Pan This part replaces 502006919. |
| 14 |
502007185 |
Insulator |
| 15 |
502007088 |
Insulator |
| 16 |
502007131 |
Insulator |
| 17 |
502007170 |
Clear Bumper |
| 18 |
619690082 |
BOTTOM PAN FASTENER LH - Call your local BRP dealership This part replaces 502007137. |
| 19 |
619690081 |
BOTTOM PAN FASTENER RH - Call your local BRP dealership This part replaces 502007138. |
| 20 |
605636003 |
Clinch Nut M6 Hexsert |
| 21 |
207664044 |
Hex. Flange Screw M6 X 40 |
| 22 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 23 |
502006927 |
Bumper Support |
| 24 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 25 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
