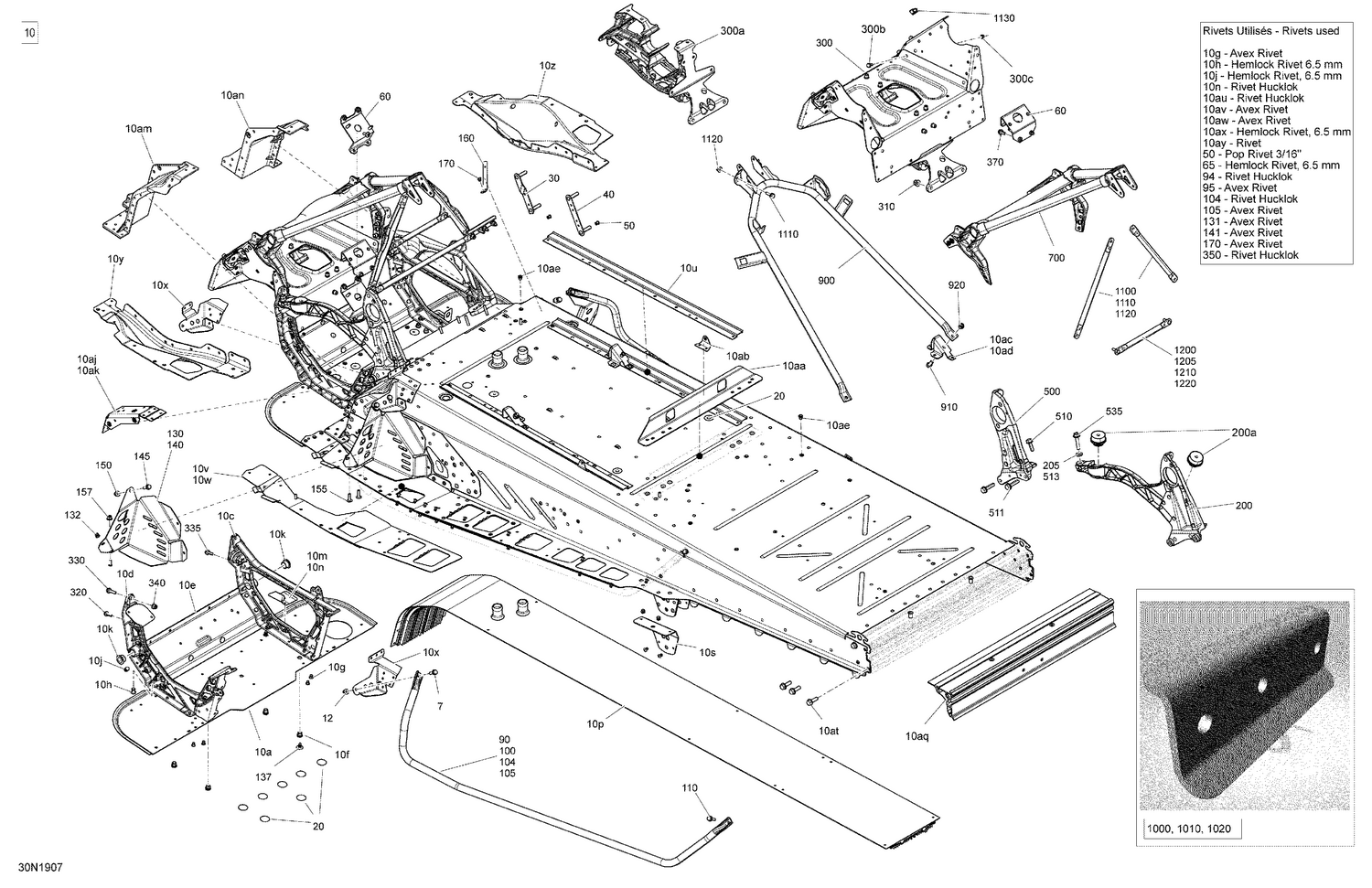

09- Frame - 900 ACE
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 10ab | 518329164 | Seat Box Bracket |
| 10ac | 518329109 | LH Support Tube Bracket |
| 10ad | 518329110 | RH Support Tube Bracket |
| 10ae | 605636003 | Clinch Nut M6 Hexsert |
| 10ak | 250100065 | Clinching Nut Hexert M8 |
| 10at | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 10au | 293150163 | Rivet Hucklok |
| 10av | 390909100 | Avex Rivet |
| 10aw | 390909200 | Avex Rivet |
| 10ax | 293150119 | Hemlock Rivet, 6.5 mm |
| 10ay | 293150183 | Rivet |
| 10c | 518326328 | RH Side Member |
| 10d | 518326330 | LH Side Member |
| 10e | 518326198 | Front Member |
| 10f | 605636002 | Clinch Nut Hexsert M8 |
| 10g | 390909100 | Avex Rivet |
| 10h | 293150120 | Hemlock Rivet 6.5 mm |
| 10j | 293150119 | Hemlock Rivet, 6.5 mm |
| 10k | 505072690 | Leg Bushing |
| 10m | 518327983 | SUPPORT_EXHAUST - Call your local BRP dealership |
| 10n | 293150163 | Rivet Hucklok |
| 10p | 509000976 | Tunnel Radiator |
| 10s | 518329083 | Rear Arm Bracket |
| 10u | 518326107 | Fastening rail |
| 20 | 518325560 | Adhesive Patch |
| 30 | 518326123 | GEARBOX FRONT PLATE - Call your local BRP dealership |
| 40 | 518326124 | Gearbox Rear Plate |
| 50 | 390402200 | Pop Rivet 3/16" |
| 60 | 518326178 | Engine Support |
| 65 | 293150174 | Hemlock Rivet, 6.4 mm |
| 94 | 293150163 | Rivet Hucklok |
| 95 | 390909100 | Avex Rivet |
| 104 | 293150163 | Rivet Hucklok |
| 105 | 390909100 | Avex Rivet |
| 110 | 207662056 | Hex. Flange Screw M6 x 20 |
| 132 | 605636003 | Clinch Nut M6 Hexsert |
| 137 | 414644300 | Black, Dart |
| 141 | 390909200 | Avex Rivet |
| 145 | 207662056 | Hex. Flange Screw M6 x 20 |
| 150 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 160 | 514054846 | Spring Bracket |
| 170 | 390909200 | Avex Rivet |
| 180 | 390909200 | Avex Rivet |
| 200a | 512061516 | Vibration Damper This part replaces 512060295. |
| 205 | 234281474 | Conical Spring Washer M8 |
| 300a | 518327487 | Front Suspension Support |
| 300b | 207161444 | Hex. Screw M6 X 14 |
| 300c | 232561600 | Hex. Elastic Stop Nut M6 |
| 310 | 233281414 | Hex. Flange Elastic Nut M8 |
| 320 | 210262050 | Hexagonal Head Screw |
| 330 | 207662544 | Hex. Flange Screw M6 X 25 |
| 335 | 207662544 | Hex. Flange Screw M6 X 25 |
| 340 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 350 | 293150163 | Rivet Hucklok |
| 370 | 207661644 | Hex. Flange Screw M6 X 16 |
| 500 | 518328434 | Pulley Support |
| 510 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 535 | 207584044 | Hex. Flange Screw M8 X 40, Scotch Grip |
| 700 | 518326975 | Front Member |
| 900 | 518329105 | Upper Support Tube |
| 910 | 207182044 | Hex. Screw M8 X 20 |
| 920 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1100 | 518326848 | Upper Column Support |
| 1110 | 207662056 | Hex. Flange Screw M6 x 20 |
| 1120 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1130 | 414227300 | Clip |
| 1200 | 518326355 | Center Column Support |
| 1205 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1210 | 207662556 | Hex. Flange Screw M6 X 25 |
