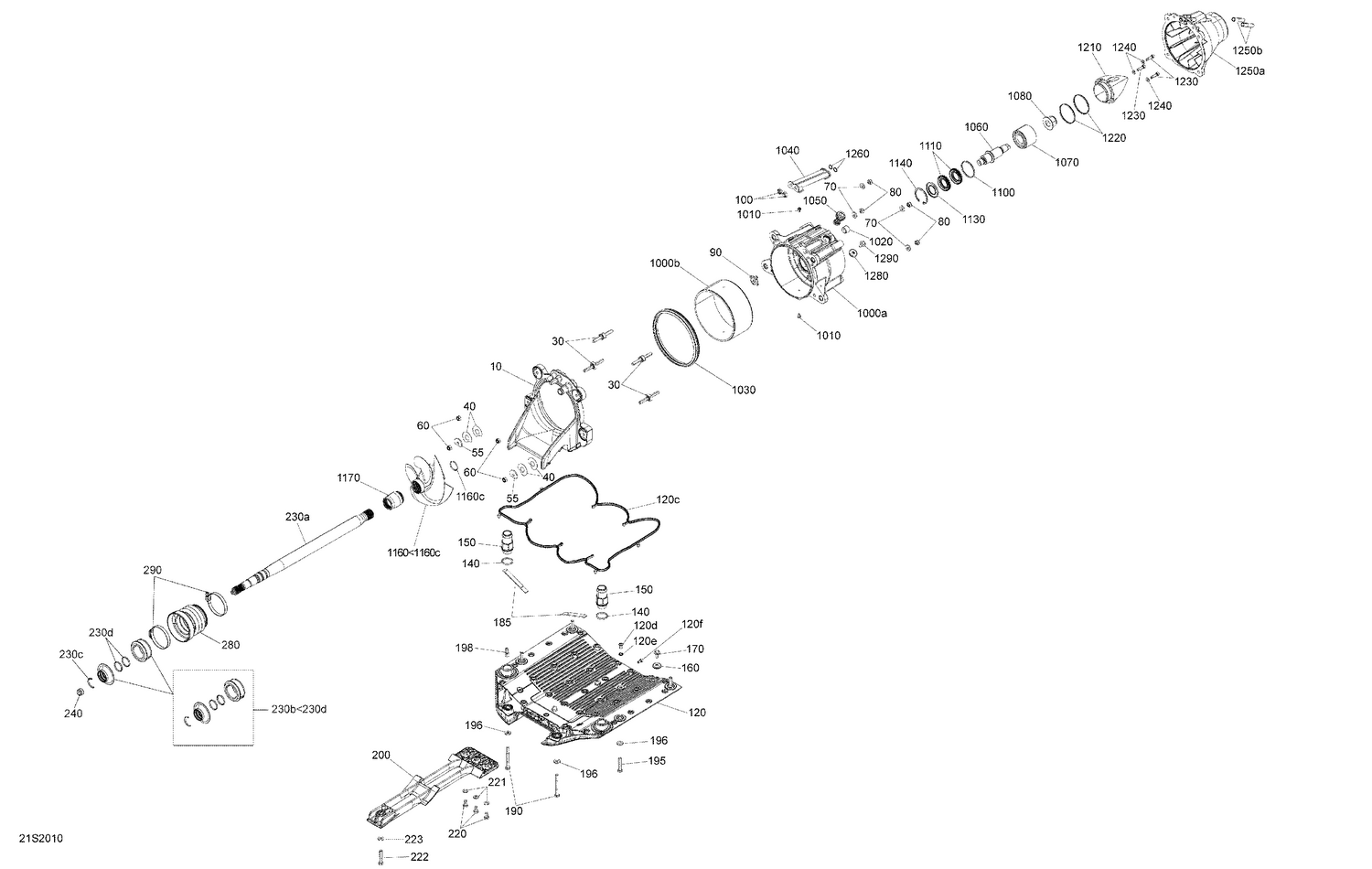

05- Propulsion
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 271001931 | Pump Support |
| 30 | 250300046 | Square Stud |
| 40 | 272000053 | Shim 0.3 mm |
| 55 | 279000326 | Flat Washer |
| 60 | 232581200 | Hex. Elastic Nut M8 Brass |
| 70 | 293050001 | Flat Washer M8.5 x 18 |
| 80 | 232581200 | Hex. Elastic Nut M8 Brass |
| 90 | 271002029 | Reducer, Green |
| 100 | 293250084 | Watertight Seal |
| 120c | 271002024 | Gasket |
| 120d | 250000384 | Torx Screw M6 X 14 |
| 120e | 250200114 | Sealing Washer |
| 120f | 250500005 | Socket Drain Plug M6 X 12 |
| 140 | 293300121 | O-Ring |
| 150 | 293710124 | Strait Fitting |
| 160 | 271001920 | Anode Zinc |
| 170 | 250000965 | Hex Screw M6 X 20 |
| 185 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 190 | 250000812 | Hexagonal Head Cap Screw M8 X 75 |
| 195 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 196 | 293050001 | Flat Washer M8.5 x 18 |
| 198 | 293000105 | Cap Plug |
| 200 | 271001971 | Pump Grate |
| 220 | 207381660 | Hex. Screw M8 X 16, Scotch Grip |
| 221 | 234081600 | Stainless, Flat Washer 8 mm |
| 222 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 223 | 293050001 | Flat Washer M8.5 x 18 |
| 230a | 271001719 | Drive Shaft |
| 230c | 271001577 | C-Clip |
| 230d | 293300107 | O-Ring |
| 240 | 272000173 | Drive Shaft Plug |
| 280 | 271001933 | Bellow |
| 290 | 293650079 | Norma Clamp |
| 1000a | 271002018 | Impeller Housing |
| 1000b | 267000917 | Wear Ring |
| 1010 | 204100269 | Hex. Screw 10-32 X 3/8", Stainless |
| 1020 | 267000469 | Black, Plastic Plug |
| 1030 | 293200087 | Neoprene Seal |
| 1040 | 271000785 | Water Outlet |
| 1050 | 267000282 | Plug |
| 1060 | 267000388 | Impeller Shaft |
| 1070 | 267000900 | Angled Bearing |
| 1080 | 250100104 | Elastic Flange Nut M20 |
| 1100 | 293300090 | O-Ring |
| 1110 | 271002071 | Seal |
| 1130 | 293200089 | Oil Seal |
| 1140 | 293370038 | Circlip |
| 1160c | 293300044 | O-Ring |
| 1170 | 271002228 | Guard This part replaces 267000929. |
| 1210 | 267000428 | Impeller Cover |
| 1220 | 293300086 | O-Ring |
| 1230 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip |
| 1240 | 234061600 | Stainless Flat Washer M6 |
| 1250a | 267000845 | Venturi |
| 1250b | 271001885 | Siphon Tube |
| 1260 | 293300013 | O-Ring |
| 1280 | 271001920 | Anode Zinc |
