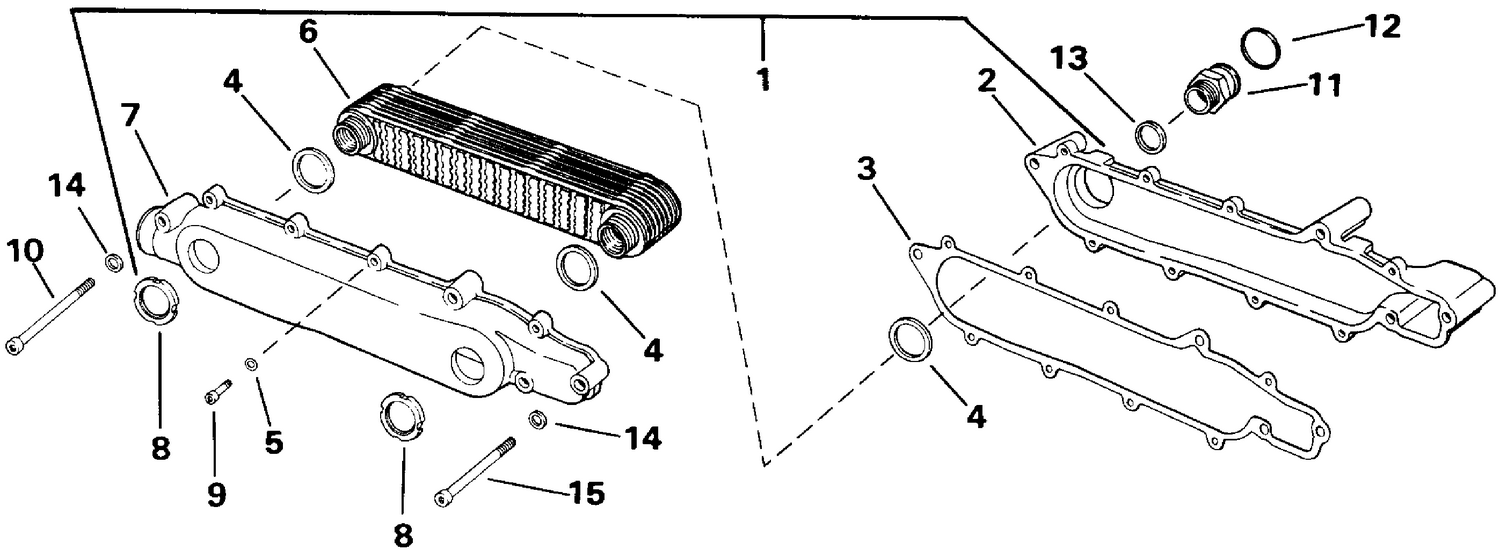

ENGINE OIL COOLER
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0987404 | OIL COOLER ASSY., Engine oil |
| 2 | 0915603 | HOUSING, Oil cooler |
| 3 | 0915604 | GASKET, Oil cooler |
| 4 | 0915605 | SEAL RING, Oil cooler |
| 5 | 0915399 | WASHER, Bolt, water pump |
| 6 | 0915607 | INSERT, Oil cooler |
| 7 | 0915608 | COVER, Oil cooler |
| 8 | 0915609 | SLOTTED ROUND NUT, Oil cooler |
| 9 | 0915479 | BOLT, Housing |
| 10 | 0915612 | BOLT, Oil cooler mtg., large |
| 11 | 0915614 | UNION, Block oil inlet |
| 12 | 0915483 | SEAL, Oil drain |
| 13 | 0915615 | SEAL RING, Union, block oil inlet |
| 14 | 0915611 | WASHER, Oil cooler mounting |
