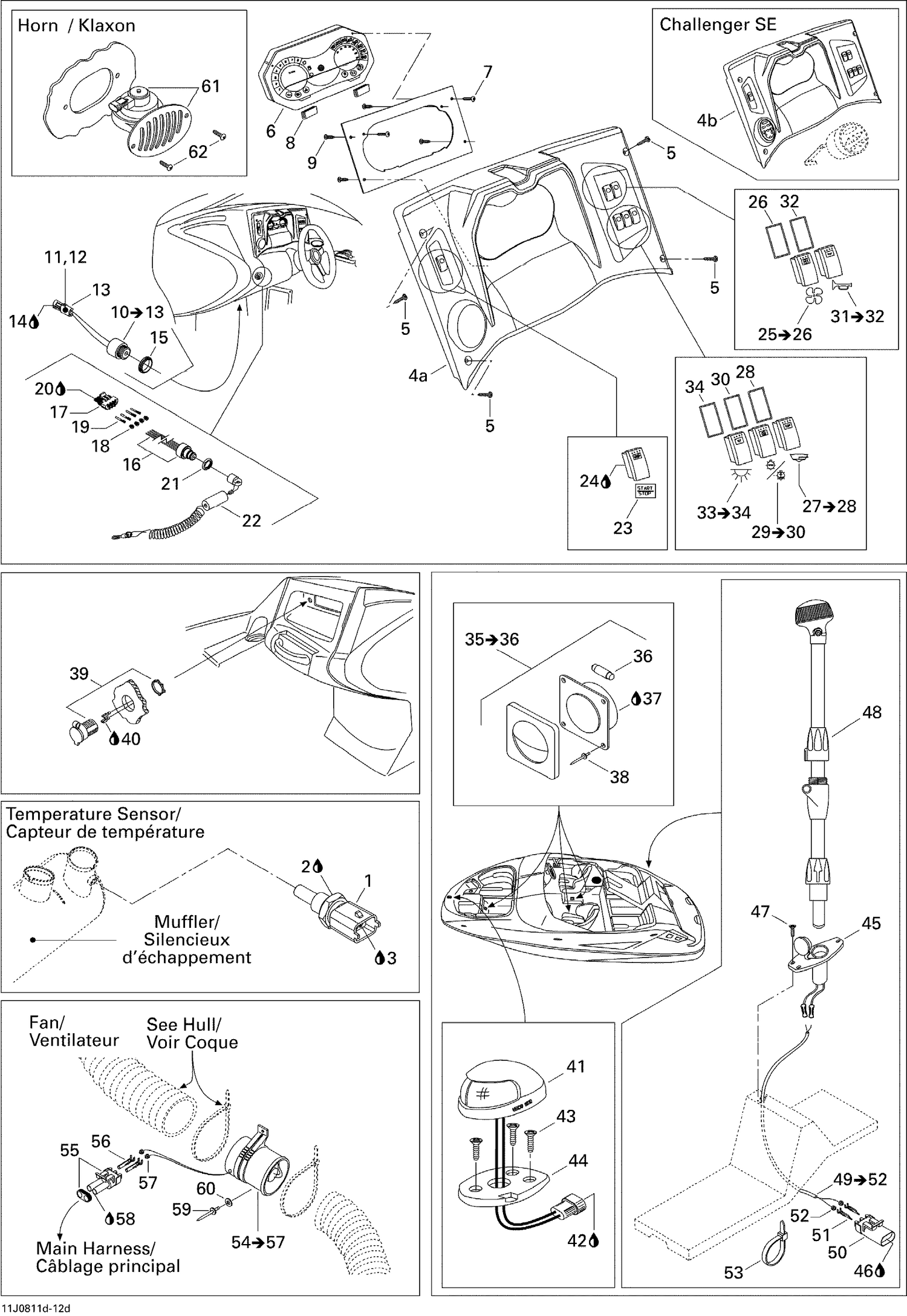

| Ref | Part Number | Description |
|---|
| 1 |
278002895 |
Temperature Sensor This part replaces 278001016. |
| 3 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 4a |
204471244 |
Fascia |
| 4b |
XXX |
Not Available As Spare Parts |
| 5 |
209941960 |
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership |
| 6 |
204471378 |
Cluster Gauge This part replaces 204471236. |
| 7 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 8 |
293830113 |
TRIM - Call your local BRP dealership |
| 9 |
211000180 |
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership |
| 11 |
278000222 |
Male Terminal |
| 12 |
278000218 |
Wire Seal |
| 13 |
278000217 |
Female Housing, 2 Circuits |
| 14 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 15 |
278000707 |
Buzzer Nut |
| 16 |
278002351 |
Safety Switch This part replaces 278002295. |
| 17 |
278000395 |
Male Housing, 4 Circuits |
| 18 |
278000218 |
Wire Seal |
| 19 |
278000223 |
Female Terminal |
| 20 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 21 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 22 |
204471206 |
Safety Lanyard |
| 23 |
204471178 |
START/STOP SWITCH - Call your local BRP dealership |
| 24 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 26 |
204470132 |
Gasket |
| 28 |
204470132 |
Gasket |
| 30 |
204470132 |
Gasket |
| 32 |
204470132 |
Gasket |
| 34 |
204470132 |
Gasket |
| 36 |
204470081 |
BULB - Call your local BRP dealership |
| 37 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 38 |
293150032 |
RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 39 |
710001248 |
DC Outlet This part replaces 204470907. |
| 40 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 41 |
204470372 |
Front Lamp |
| 42 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 43 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 44 |
204470072 |
FRONT LAMP SUPPORT - Call your local BRP dealership |
| 45 |
204470990 |
REAR LIGHT BASE - Call your local BRP dealership |
| 46 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 47 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 48 |
204470979 |
REAR LIGHT POLE - Call your local BRP dealership |
| 50 |
278000217 |
Female Housing, 2 Circuits |
| 51 |
278000222 |
Male Terminal |
| 52 |
278000218 |
Wire Seal |
| 53 |
293750002 |
Tie Wrap 142 mm |
| 55 |
278000220 |
Male Connector, 2 Circuits |
| 56 |
278000223 |
Female Terminal |
| 57 |
278000218 |
Wire Seal |
| 58 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 59 |
293150088 |
Pop Rivet 3/16" |
| 60 |
234052600 |
Flat Washer 5 mm, Stainless |
| 61 |
204470801 |
HORN - Call your local BRP dealership |
