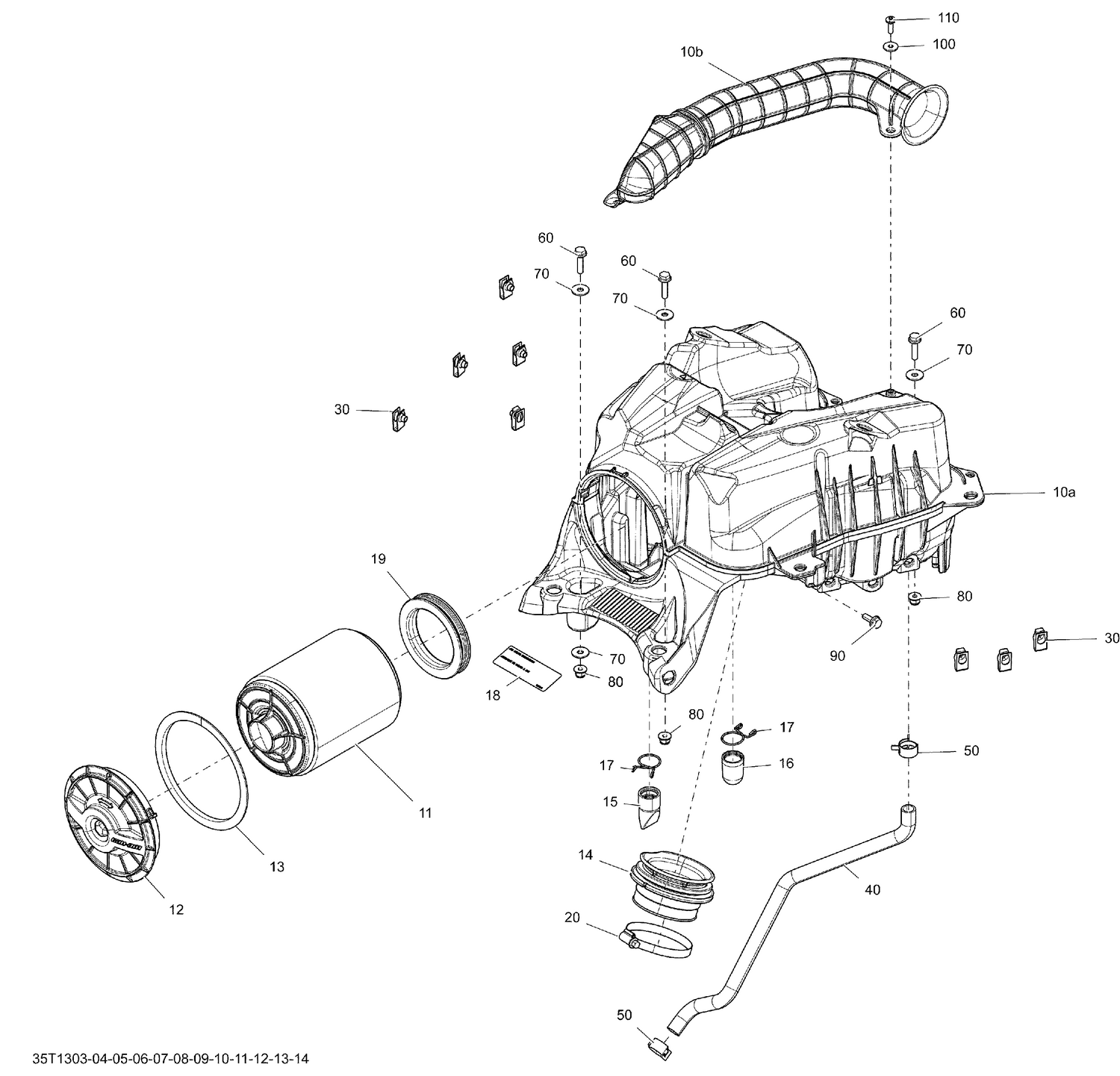

02- Air Intake Silencer
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 707800531 | Intake Silencer |
| 10b | 707800375 | Air Intake Hose |
| 11 | 707800371 | Air Filter |
| 12 | 715002174 | Intake Silencer Cap Ass'y This part replaces 707800518. |
| 13 | 293300175 | Gasket This part replaces 293300165. |
| 14 | 707800333 | Intake Adaptor |
| 15 | 707801178 | Drain Valve This part replaces 707800404. |
| 16 | 707800080 | Drain Tube |
| 17 | 707800278 | Retainer Clip |
| 18 | 707800373 | Air Filter Maintenance Decal |
| 19 | 707800470 | Air Filter Adaptor |
| 20 | 293650091 | Norma Clamp |
| 30 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 40 | 707800453 | Vent Hose |
| 50 | 293650110 | Norma Clamp |
| 60 | 207662534 | Hex. Flange Screw M6 X 25 |
| 70 | 250200082 | Flat Washer This part replaces 391302000. |
| 80 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 90 | 207661644 | Hex. Flange Screw M6 X 16 |
| 100 | 391301600 | Washer |
