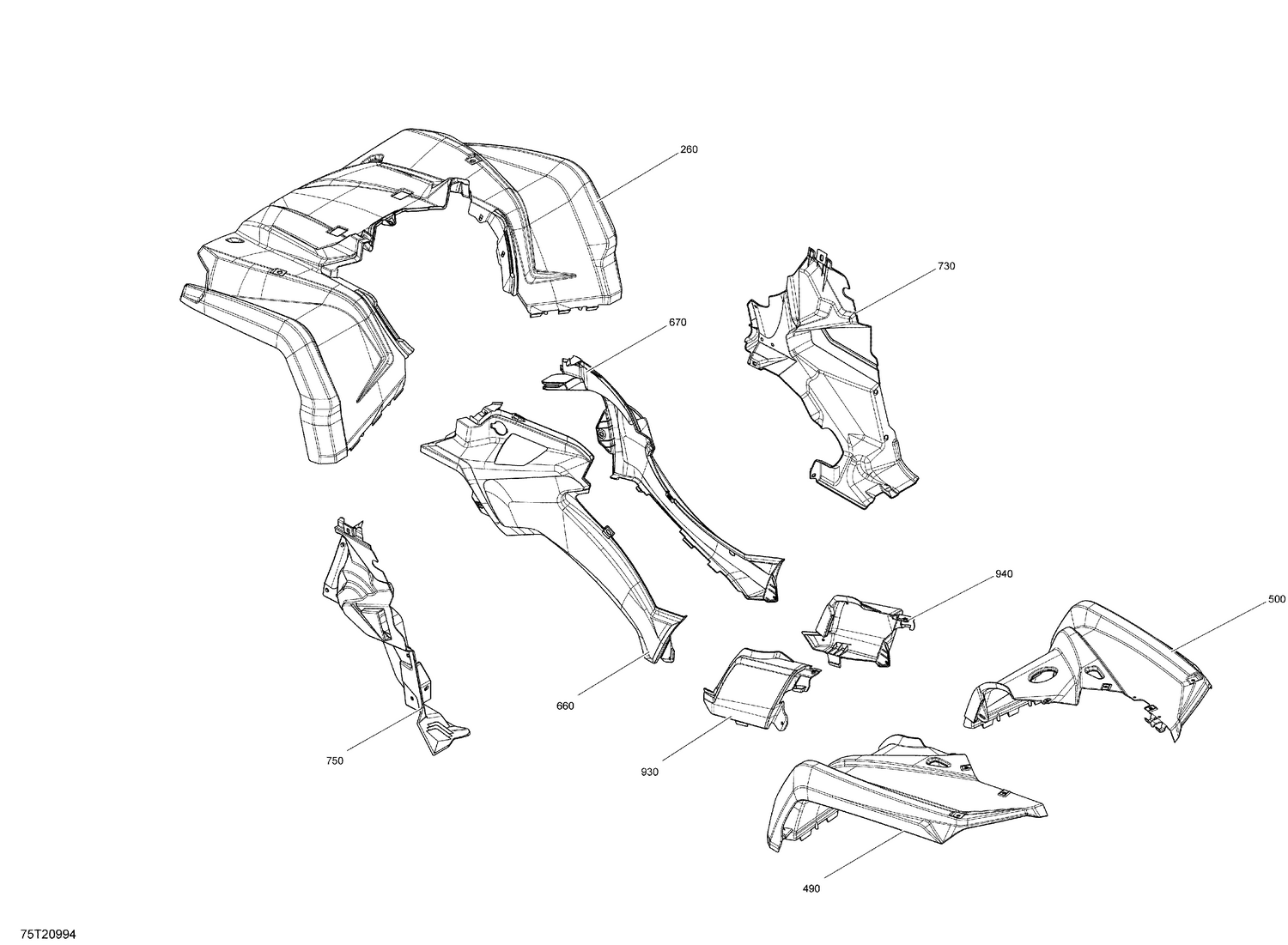

07- Fender Kit
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 260 | 715006459 | Squadron Green, Frond Fender Kit |
| 490 | 715006163 | Squadron Green, Rear LH Fender Kit |
| 500 | 715006461 | Squadron Green, Rear RH Fender Kit |
| 660 | 705009760 | Squadron Green, LH Lateral Panel |
| 670 | 705009764 | Squadron Green, RH Lateral Panel |
| 730 | 705017023 | RH Front Wheel Arch Protector This part replaces 705010714. |
| 750 | 705017022 | LH Front Wheel Arch Protector This part replaces 705012338. |
| 930 | 715001897 | LH Extension Panel |
