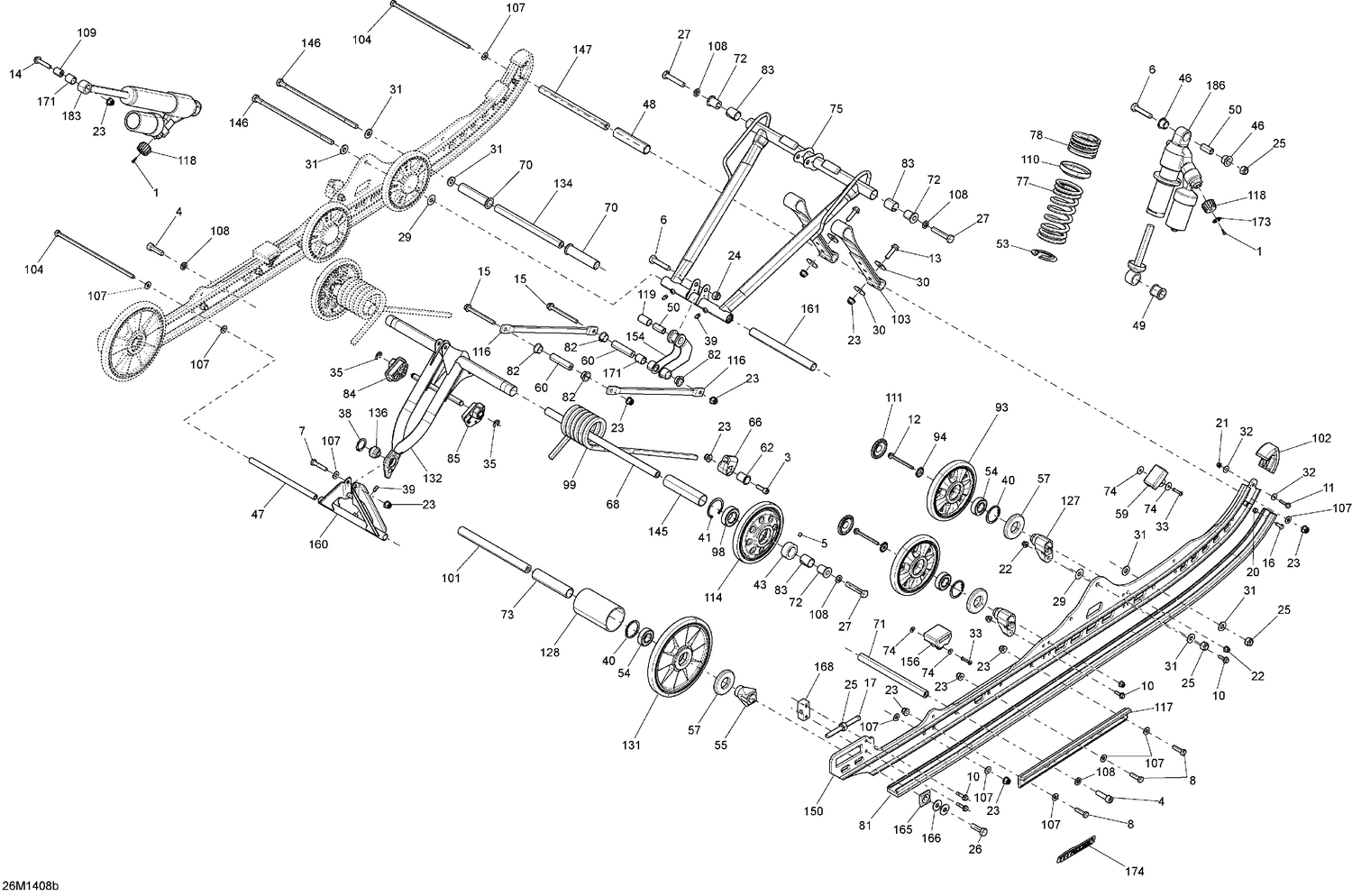

08- Rear Suspension 146
Parts (113)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 3 | 205082554 | Socket Screw M8 X 25 |
| 4 | 205503554 | Socket Head Screw M10 X 35 |
| 5 | 206260844 | Socket Set Screw M6 X 8 |
| 6 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 7 | 207084056 | Hex. Screw M8 X 1.25 X 40 |
| 8 | 207183054 | Hex. Cap Screw M8 X 30 |
| 10 | 207662556 | Hex. Flange Screw M6 X 25 |
| 11 | 207652544 | Hex. Flange Screw M5 X 25 |
| 12 | 207667056 | Hex. Flange Screw M6 X 70 |
| 13 | 207683044 | Hex. Flange Screw M8 X 30 |
| 14 | 207684044 | Hex. Flange Screw M8 X 40 |
| 15 | 207688544 | Hex. Flange Screw |
| 16 | 208562531 | Phillips Screw M6 X 25 |
| 17 | 230100054 | Hex Screw M10 x 100 |
| 20 | 232561414 | Elastic Stop Nut M6 |
| 21 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 22 | 233261466 | Hex. Flange Elastic Nut M6 |
| 23 | 233281466 | Elastic Flange Nut M8 |
| 24 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 25 | 233601466 | Elastic Locking Nut M10 |
| 26 | 250000592 | Hex Cap Screw Nylon M10 x 35 |
| 27 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 29 | 250200032 | Washer |
| 30 | 250200128 | Flat Washer 8 mm |
| 31 | 250200138 | Washer |
| 32 | 250200140 | Washer |
| 33 | 293150013 | Pop Rivet 3/16" |
| 35 | 293370013 | E-Circlip |
| 38 | 293370090 | INNER CIRCLIP - Call your local BRP dealership |
| 39 | 408200700 | Grease Fitting |
| 40 | 415129371 | Retaining Ring |
| 41 | 415129780 | Retaining Ring |
| 43 | 503168800 | Retaining Ring |
| 46 | 503189117 | Urethane Bushing |
| 47 | 503189156 | Pivot Arm Axle |
| 48 | 503189265 | Spacer |
| 49 | 503189271 | Bushing |
| 50 | 503189282 | Bushing |
| 53 | 503194270 | Spring Stopper This part replaces 503192608. |
| 54 | 503190396 | Ball Bearing |
| 55 | 503190428 | Rear Wheel Spacer |
| 57 | 503190434 | Labyrinth Seal |
| 59 | 503190576 | Rubber Stopper |
| 60 | 503190643 | Axle Bar (Long) |
| 62 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 66 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 68 | 503191215 | Upper Shaft |
| 70 | 503191259 | Center Bushing |
| 71 | 503191260 | Axle Strap |
| 72 | 503191262 | Bushing |
| 73 | 503191263 | Rear Spacer |
| 74 | 503191273 | Washer |
| 75 | 503193803 | FRONT ARM ASS'Y - Call your local BRP dealership |
| 77 | 503193065 | Black, Spring (162mm) Long |
| 78 | 503193479 | Black, Spring (52mm) Short |
| 81 | 503191499 | Black, Slider 146 |
| 82 | 503191555 | Swivel Bushing |
| 83 | 503191556 | Extended Bushing |
| 84 | 503191565 | LH Cam Adjuster |
| 85 | 503191566 | RH Cam Adjuster |
| 93 | 503191755 | Black, Wheel Ass'y 152 mm |
| 94 | 503191820 | Wheel Cup M6 |
| 98 | 503193548 | Ball Bearing This part replaces 503191982. |
| 99 | 503193158 | Black, LH Spring Square This part replaces 503192136. |
| 99 | 503193159 | Black, RH Spring Square This part replaces 503192137. |
| 101 | 503192276 | REAR WHEEL AXLE - Call your local BRP dealership |
| 102 | 503192299 | Runner Protector |
| 103 | 503192360 | Stopper Strap |
| 104 | 503192440 | Bolt M8 X 248mm |
| 107 | 503192494 | Washer |
| 108 | 503192496 | Washer |
| 109 | 503196509 | Axle Shock Absorber This part replaces 503192606. |
| 110 | 503192743 | Spring Spacer |
| 111 | 503192771 | Black, Wheel Cap |
| 114 | 503192808 | Black Wheel Ass'y 155 mm |
| 116 | 503192900 | Acceleration Link Rod |
| 117 | 503193853 | Black Runner Reinforcement This part replaces 503192975. |
| 118 | 503193033 | Shock Adjuster Knob |
| 119 | 503193037 | Bushing |
| 127 | 503193894 | Casted Support This part replaces 503193082. |
| 128 | 503193097 | Bushing |
| 131 | 503193098 | Black, Wheel Ass'y 200 mm |
| 132 | 503193118 | REAR ARM - Call your local BRP dealership |
| 134 | 503193435 | Pivot Axle This part replaces 503193142. |
| 136 | 503193148 | SPHERICAL BEARING - Call your local BRP dealership |
| 145 | 503193218 | Bushing |
| 146 | 503193227 | Bolt M10 X 251MM |
| 147 | 503193332 | STRAP AXLE - Call your local BRP dealership |
| 150 | 503193610 | RAIL_SUSPENSION 146 B-357 - Call your local BRP dealership |
| 154 | 503193464 | Rocker |
| 156 | 503193512 | Rubber Stopper |
| 160 | 503193699 | Pivot Arm |
| 161 | 503196972 | Lower Shaft This part replaces 503193702. |
| 165 | 503193755 | Slider Axle |
| 166 | 503193770 | WASHER - Call your local BRP dealership |
| 168 | 503193808 | Tensioner |
| 171 | 505072663 | Leg Cushion |
| 173 | Not | Available As Spare Part - Shock Decal |
| 174 | 516006381 | Runner Decal |
| 183 | 503192964 | Rear Shock |
| 183a | 415093807 | O-Ring |
| 183b | 415093806 | Piston Ring |
| 183c | 505070398 | Air Valve |
| 183d | 505070399 | Screw |
| 183e | 505070400 | O-Ring |
| 183f | 415093804 | O-Ring |
| 186 | 503192783 | CENTER SHOCK - Call your local BRP dealership |
| 186a | 415093807 | O-Ring |
| 186b | 415093806 | Piston Ring |
| 186c | 505070398 | Air Valve |
| 186d | 505070399 | Screw |
| 186e | 505070400 | O-Ring |
