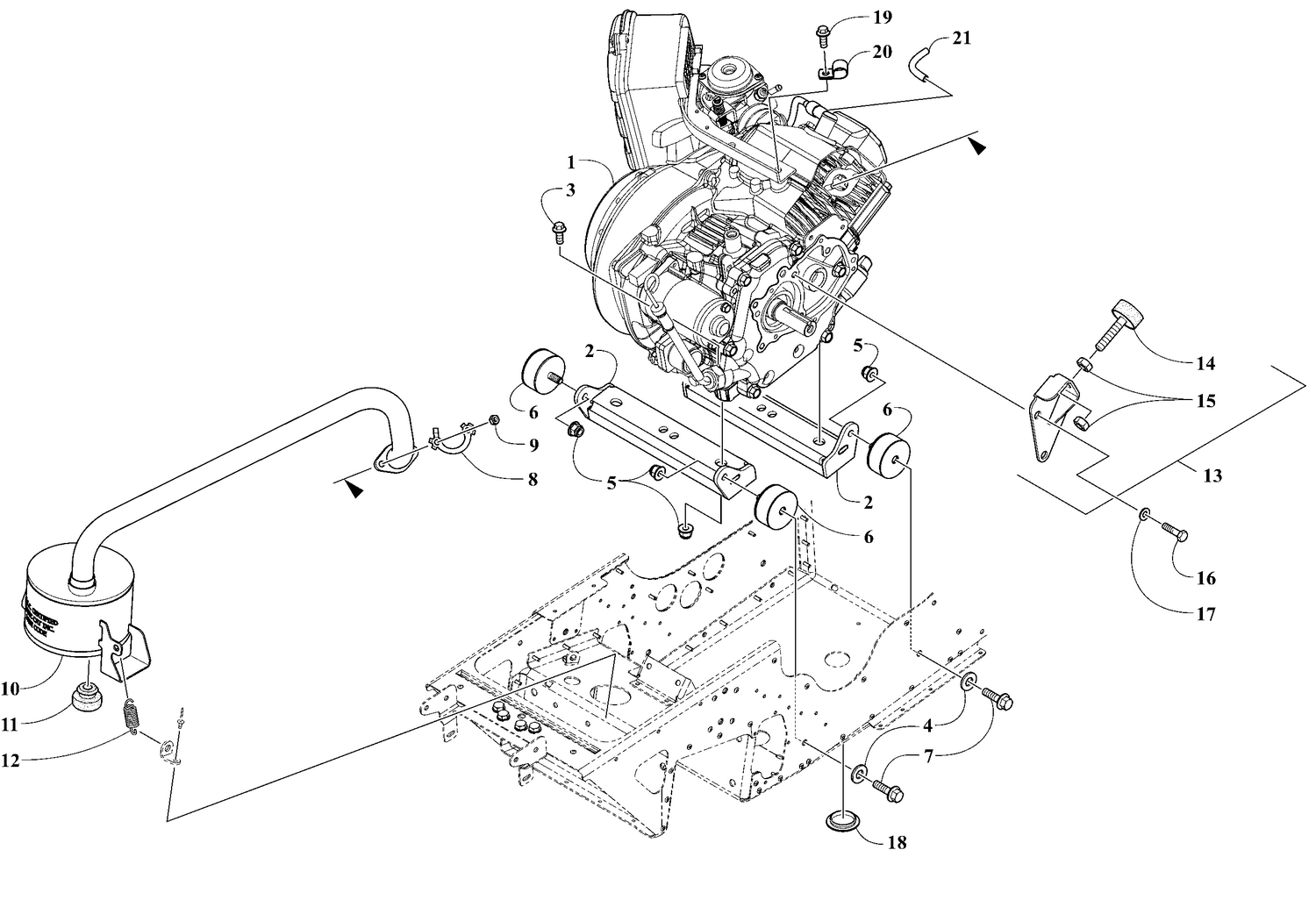

Engine, Exhaust and Components
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0662-621 | Engine (200) |
| 2 | 0708-699 | Engine Mount (200) |
| 3 | 8408-840 | Screw M8 X 1.25 X 40 |
| 4 | 1623-968 | Aluminum Washer 8.25MM X 20MM X 3MM |
| 5 | 8427-802 | Hex Lock Nut M8X1.25 |
| 6 | 0608-812 | Neoprene Engine Mount |
| 7 | 8408-818 | Screw M8 X 1.25 X 16 (THREADLOCKIN |
| 8 | 3021-840 | Lock Washer |
| 9 | 3021-823 | Hex Nut |
| 10 | 3612-235 | Exhaust Muffler |
| 11 | 2612-186 | Resonator Mount Grommet |
| 12 | 0123-321 | Extension Spring |
| 13 | 0708-670 | Engine Torque Rubber Bumper Ass'y |
| 14 | 0608-795 | Rubber Bumper |
| 15 | 8420-002 | Hex Nut M10 X 1.25 |
| 16 | 8004-130 | Screw 5/16-24 X.75 |
| 17 | 8050-242 | Flat Washer 5/16 X .625 X .063 |
| 18 | 2623-277 | Blanking Plug 1.25" |
| 19 | 3020-484 | Flanged Bolt |
| 20 | 1623-080 | Open Clamp |
