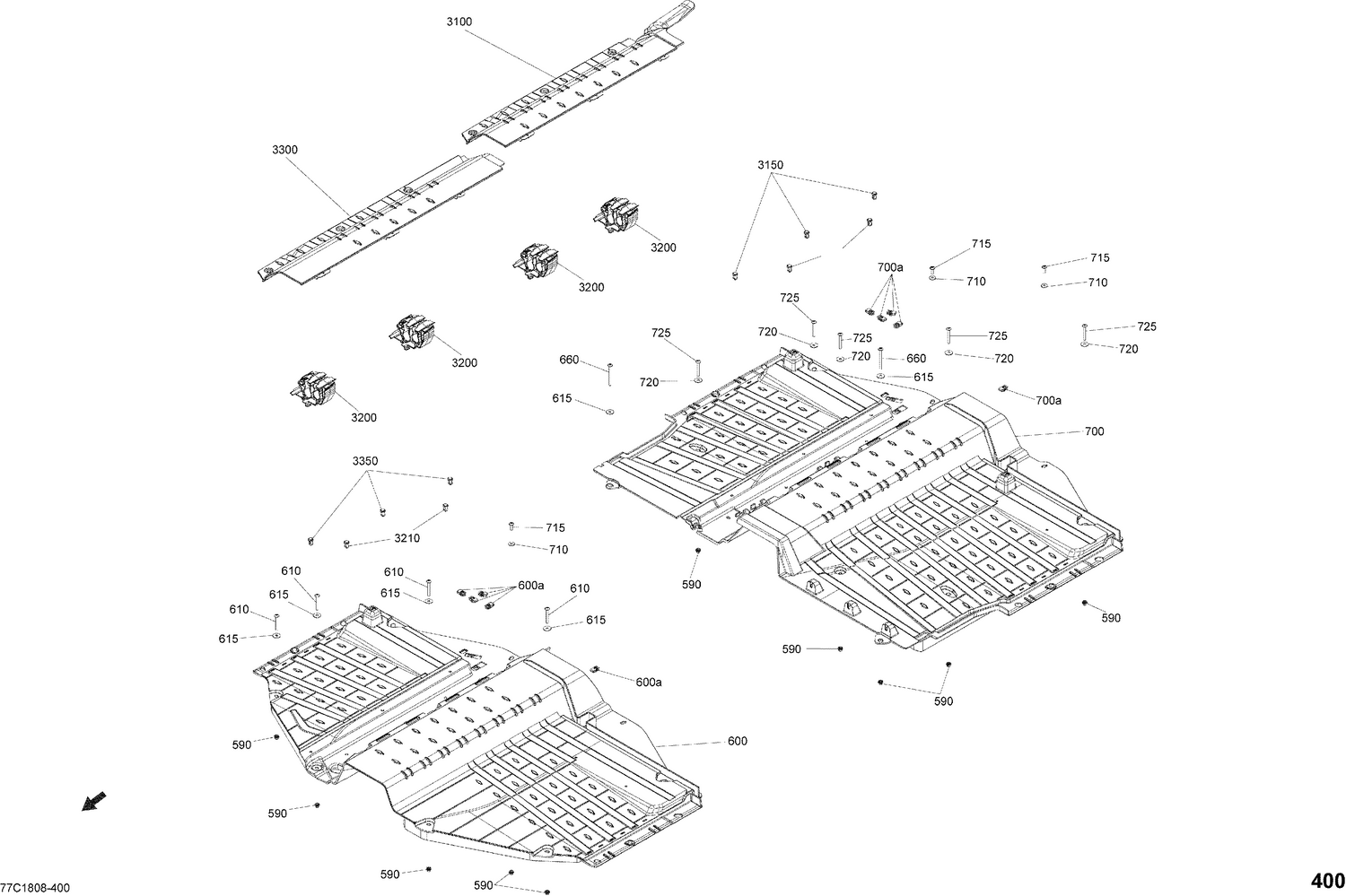

| Ref | Part Number | Description |
|---|
| 590 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 600a |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 610 |
250000868 |
Torx Truss M6 X 50 |
| 615 |
250200162 |
Flat Washer M6.6 X 22 |
| 660 |
250000954 |
Torx Screw M6 X 70 |
| 700a |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 710 |
234062670 |
Stainless Steel Flat Washer |
| 715 |
250000722 |
Torx Screw M6 X 20 |
| 720 |
250200162 |
Flat Washer M6.6 X 22 |
| 725 |
250000868 |
Torx Truss M6 X 50 |
| 3100 |
707900806 |
Floor Panel This part replaces 707900324. |
| 3150 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 3200 |
707900325 |
Hose Support |
| 3210 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 3300 |
707900413 |
Floor Cover |
