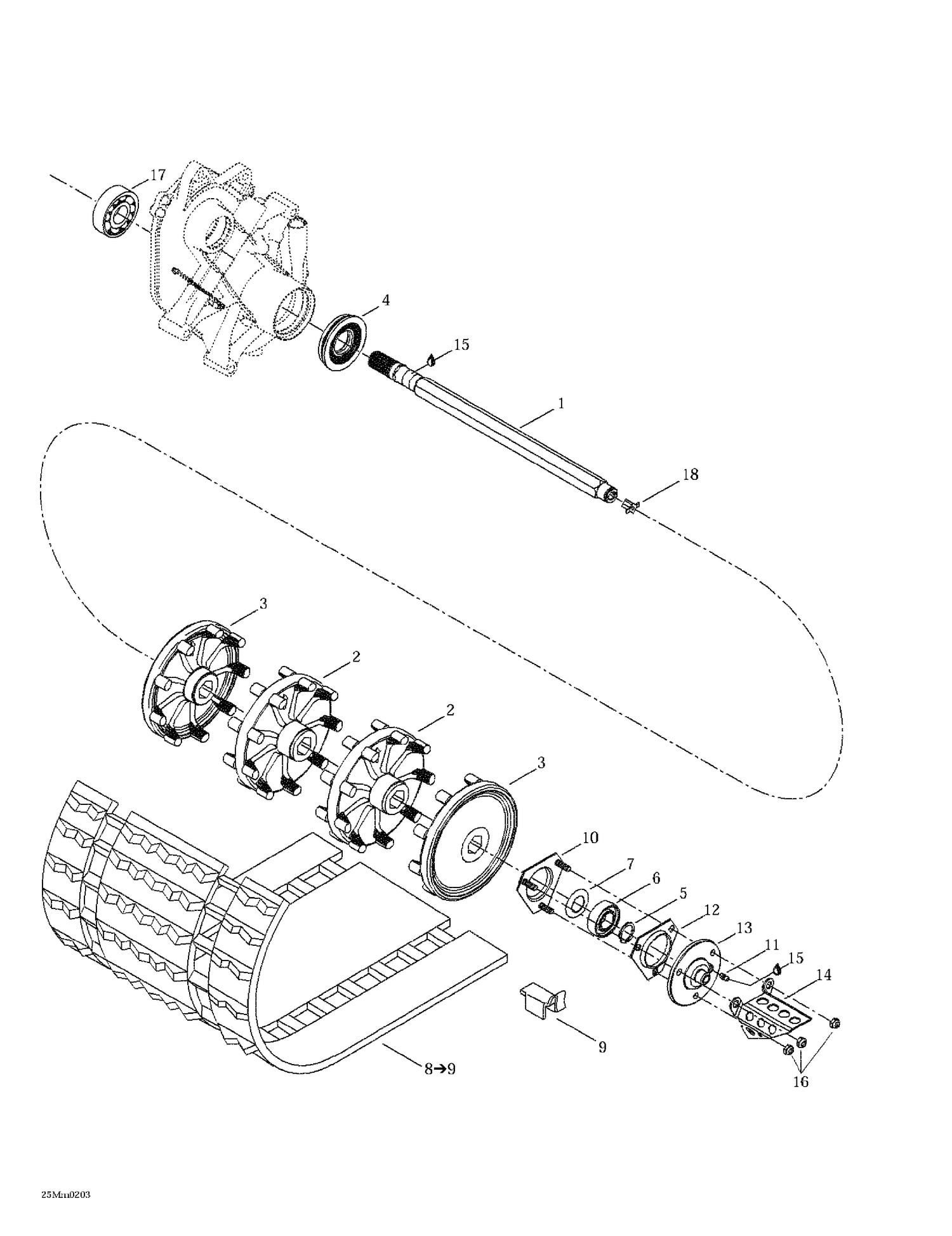

| Ref | Part Number | Description |
|---|
| 1 |
501027400 |
DRIVE AXLE - Call your local BRP dealership |
| 2 |
504151781 |
SPROCKET, 9 TEETH - Call your local BRP dealership |
| 3 |
504151782 |
HALF SPROCKET, 9 TEETH - Call your local BRP dealership |
| 4 |
504151918 |
Oil Seal Ass'y |
| 5 |
371910200 |
CIRCLIP - Call your local BRP dealership |
| 6 |
293350060 |
Ball Bearing This part replaces 504152009. |
| 7 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 9 |
415129528 |
Track Guide This part replaces 500003400. |
| 10 |
504151860 |
BEARING HOUSING - Call your local BRP dealership |
| 11 |
408200700 |
Grease Fitting |
| 12 |
501025000 |
FLANGE - Call your local BRP dealership |
| 13 |
504151836 |
Flange, Speedo Drive Insert |
| 14 |
517290100 |
CABLE PROTECTOR - Call your local BRP dealership |
| 15 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 16 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 17 |
504152005 |
Ball Bearing |
